Ftlp – Vestil FTLP-5454 User Manual
Page 4
10/21/2010
rev. 10/22/2010
FTLP manual, operation instructions.doc
2. Fork pockets: confirm that each pocket is structurally sound, not corroded or rusted. DO NOT use the platform if the
fork pockets are structurally compromised or dangerously rusted or corroded.
3. Welds: confirm that all welds are intact. DO NOT use the platform if authorized maintenance personnel determine
that a damaged weld compromises the soundness of the platform.
4. Barriers: inspect handrails, mast guard, and entryway chains for obvious damage or deformation.
5. (Overall condition of) Platform: the structure should be clean, square and rigid, and free of rust and corrosion.
Remove dirt and debris. DO NOT use the platform if the base is rusted or corroded.
FIG.
1:
FTLP-

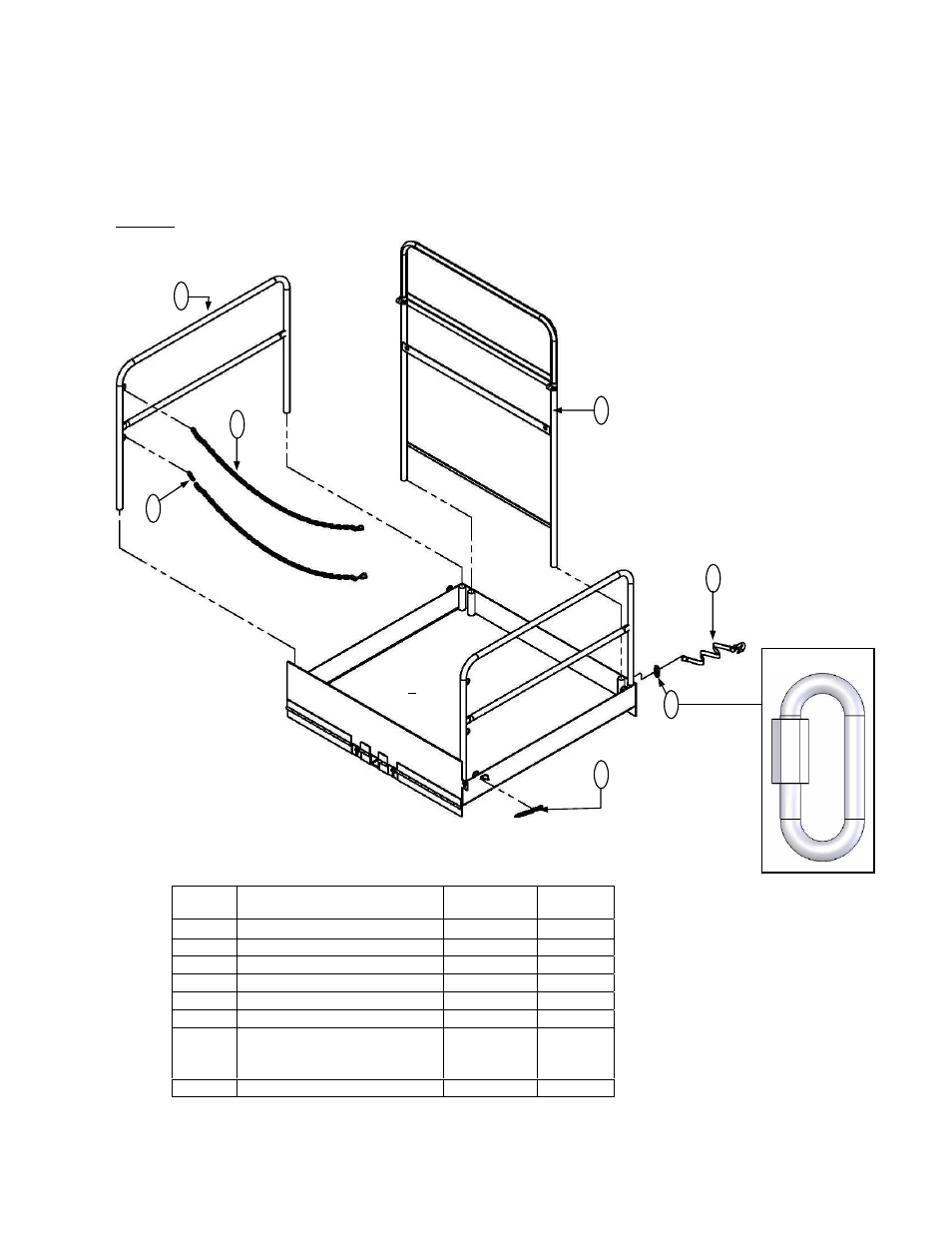

SERIES EXPLODED PARTS DIAGRAM AND PARTS LIST
Item
No.
Description Part
No.
Quantity
1
Nylon safety strap and hook
08-145-027
1
2
5/16in. quick link
45214
1
3
3/16in. x 9in. chain
08-145-007
1
*4 Mast
guard
14-514-134
1
*5
¼ in. spring hook
0500499
4
*6
¼ in. x 60in. chain
99-145-036
2
7
Platform & ramp weldment:
FTLP-5454
FTLP-5454-HR
14-513-011
14-513-012
1
1
*8 Handrail
14-524-001
2
* = Optional features usable with FTLP-5454-HR platform &
ramp weldment.
1
2
3
4
6
8
Item no. 2
5
7
p. 4 of 8
Copyright 2010 Vestil Manufacturing Corp.
