Vestil EM1 series - Manual (Page 10)

03/05 03-126-120.doc
V ESTIL M FG . C O 10

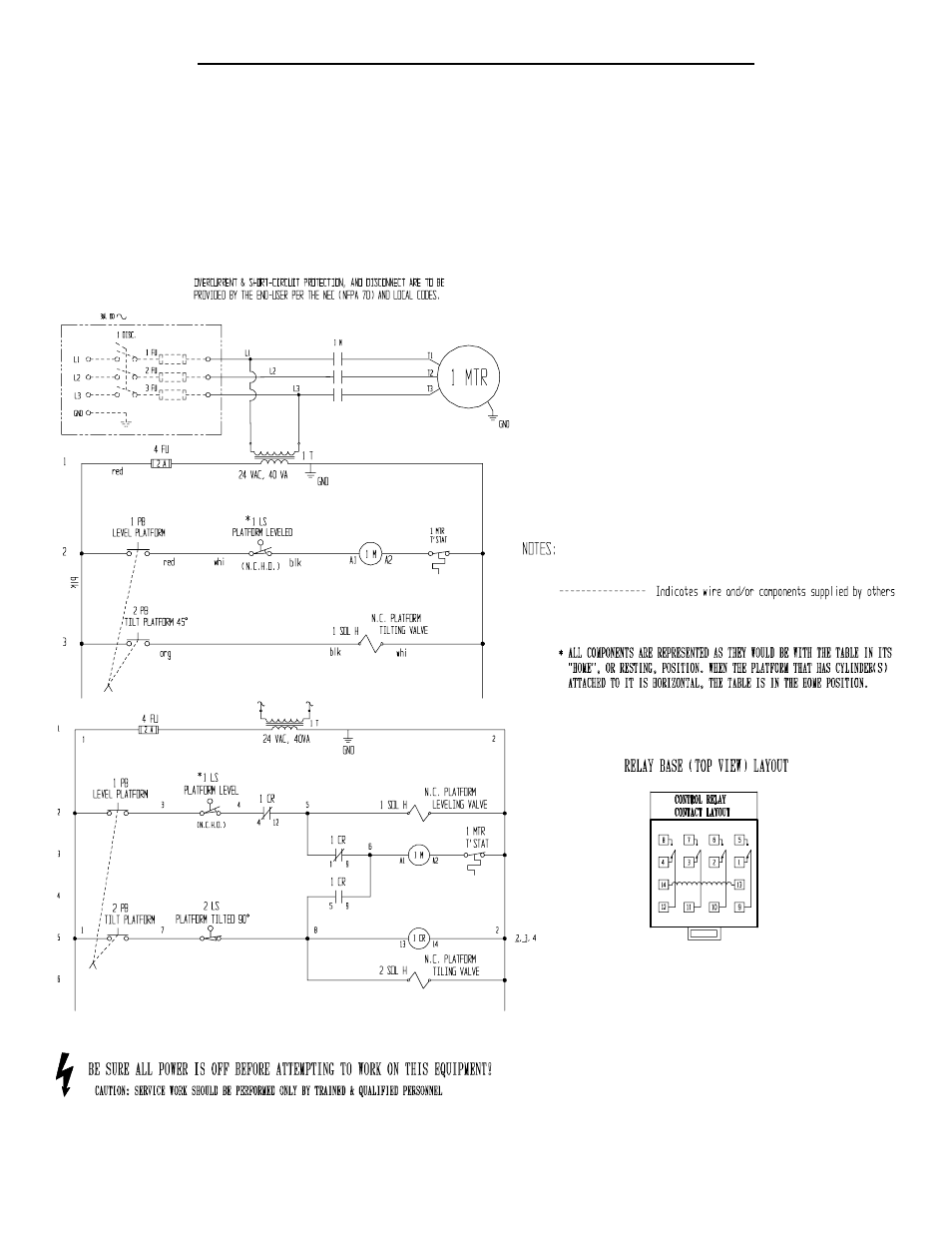

E LECTRICAL D IAGRAMS -- EM1-200 & -500, EHTT, EHTT-L
o
Warning: Care should be taken to identify all potential hazards and comply with applicable safety procedures before
beginning work. Ensure that all system pressure and power have been removed before attempting to work on the
electrical or hydraulic systems.
o
Warning: The load must be removed, and the platform either positively and adequately supported or fully tilted,
before any work is performed on the tilter.
o
Only qualified individuals trained to understand mechanical devices and their associated electrical and hydraulic
circuits should attempt troubleshooting and repair of this equipment.
Note: The platform is “raising” when the platform to which the cylinder is attached is moving to the level position.
On standard units, the cylinder will extend when the “UP” control is pressed.
Model EM1-200
Models EM1-500, EHTT, EHTT-L
