6.0 RUNNING
TESTS
The EZCT-2000 software can be used with a test plan to run a current-transformer test directly
from the PC. To run a test using the EZCT-2000 software:
1. Connect the CT Tester to the PC via either the RS-232C port or the USB port.
2. Make the test connections per the CT Tester’s User’s Manual.

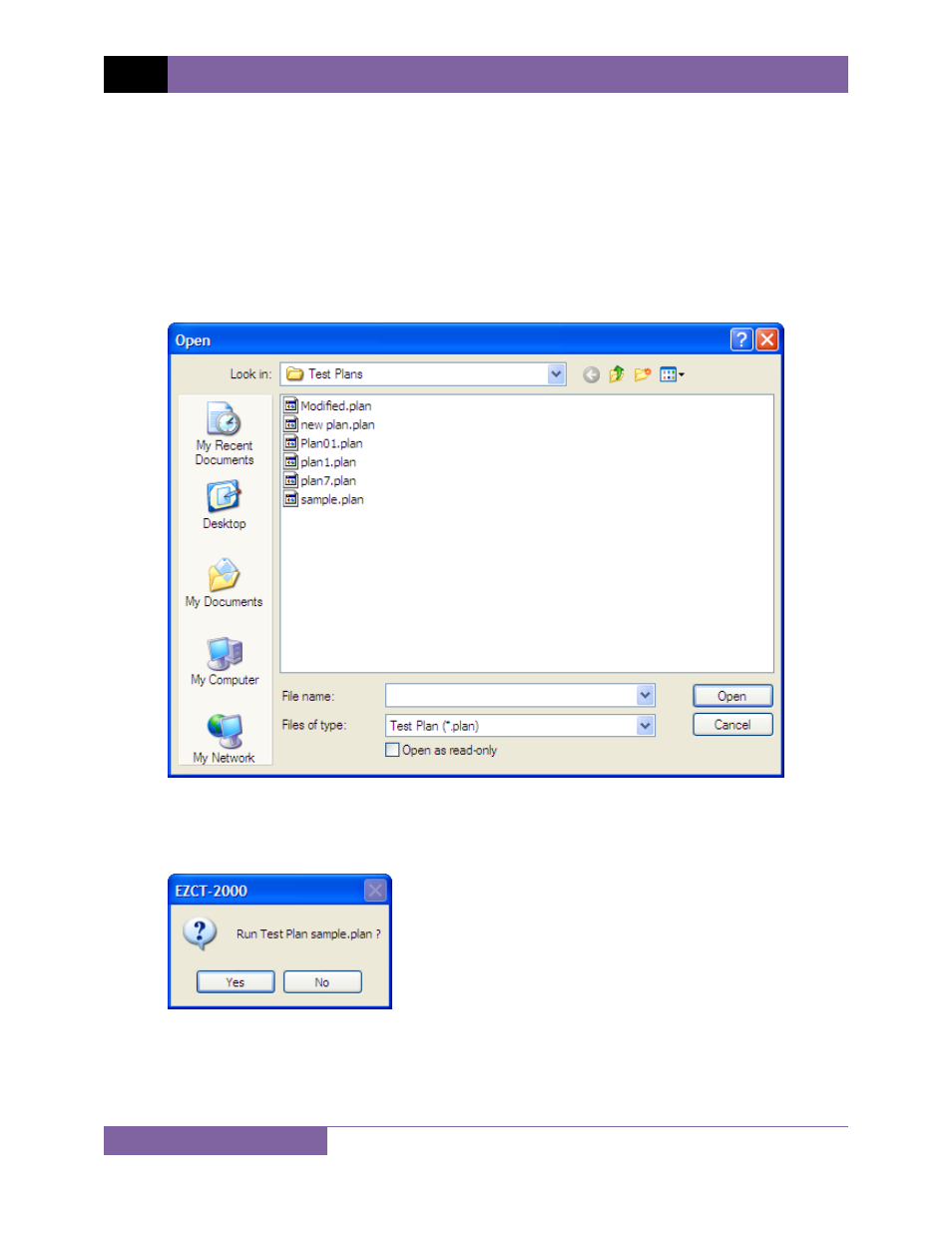

3. Click on the Run-Test menu (alternatively, you can click on the File menu and select Run
Test). The following window will be displayed:
Browse to the folder containing the test plan that you would like to use. Click on the test
plan file name and then click on the “Open” button.
4. The following confirmation window will be displayed:
Click on the “Yes” button.
5. The EZCT-2000 software will start running the tests configured in the test plan. The
following window will be displayed showing the status of the current test being
performed:
