Vanguard EZCT-2000 - Manual (Page 33)

REV 1 EZCT-2000 VERSION 1.x SOFTWARE MANUAL
31
So if you would like the filename to be “sample_plan1.plan”, enter the word
sample_plan in the “Filename Prefix” input field.

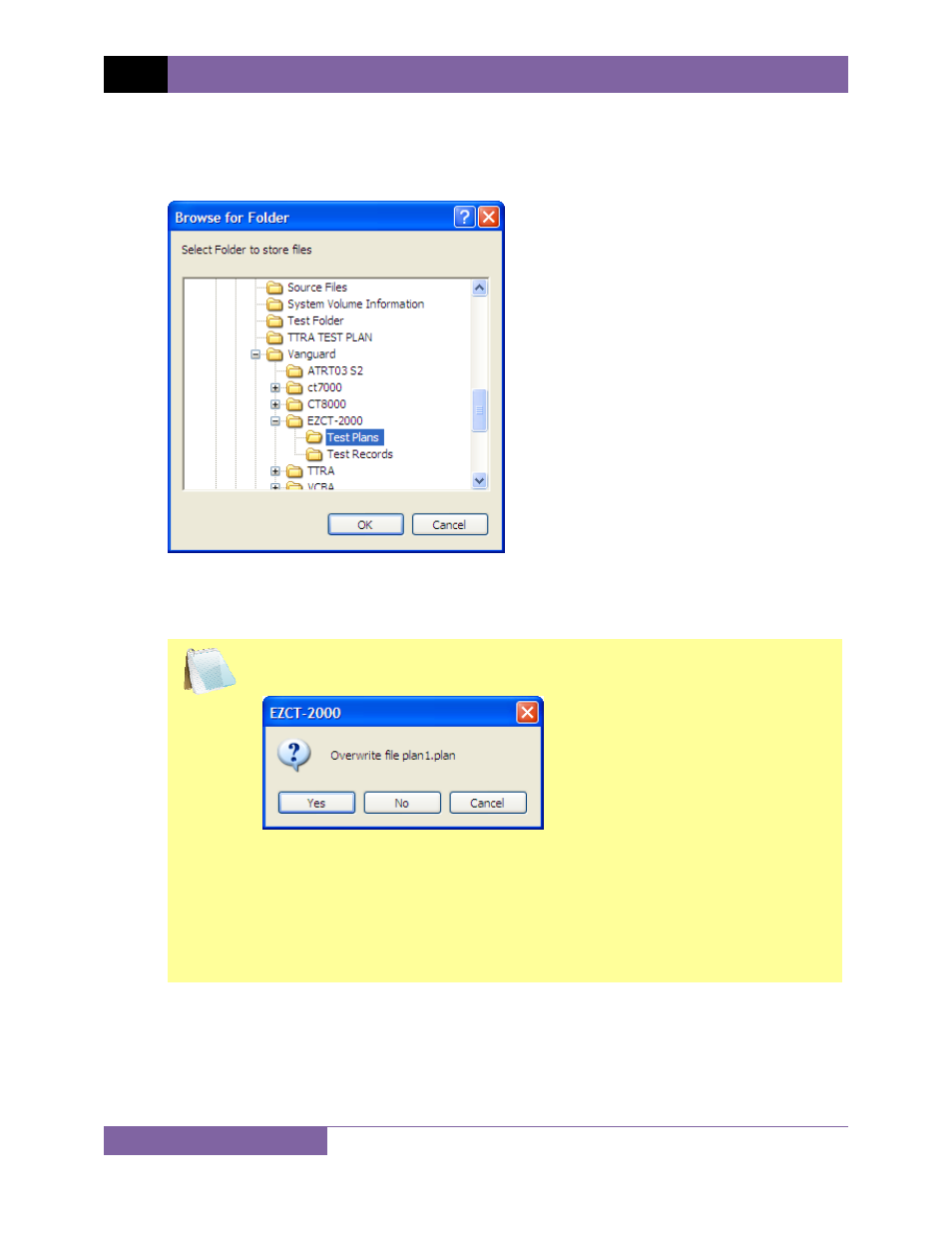

5. Click on the “OK” button. The following window will be displayed:
Navigate to the folder where you would like the retrieved test plan(s) to be saved and
then click on the “OK” button. The selected test plan(s) will be retrieved from the CT
Tester and stored on the PC in the selected directory.
NOTE
If a test plan file with the same name already exists at the storage location,
the following window will be displayed:
Click on the “Cancel” button to cancel the retrieval process.
Click on the “Yes” button if you would like the existing file to be over-
written with the new file.
Click on the “No” button if you do not want the existing file to be over-
written. The following window will be displayed:
