Vanguard EZCT-2000 - Manual (Page 11)

REV 1 EZCT-2000 VERSION 1.x SOFTWARE MANUAL
9
3.2 Application Setup
Before using the program, the application setup parameters should be reviewed and changed
as required. To change the setup parameters:
1. Make sure the EZCT-2000 software is running on the PC.
2. Click on the Application menu (Alternatively you can click on the File menu and select

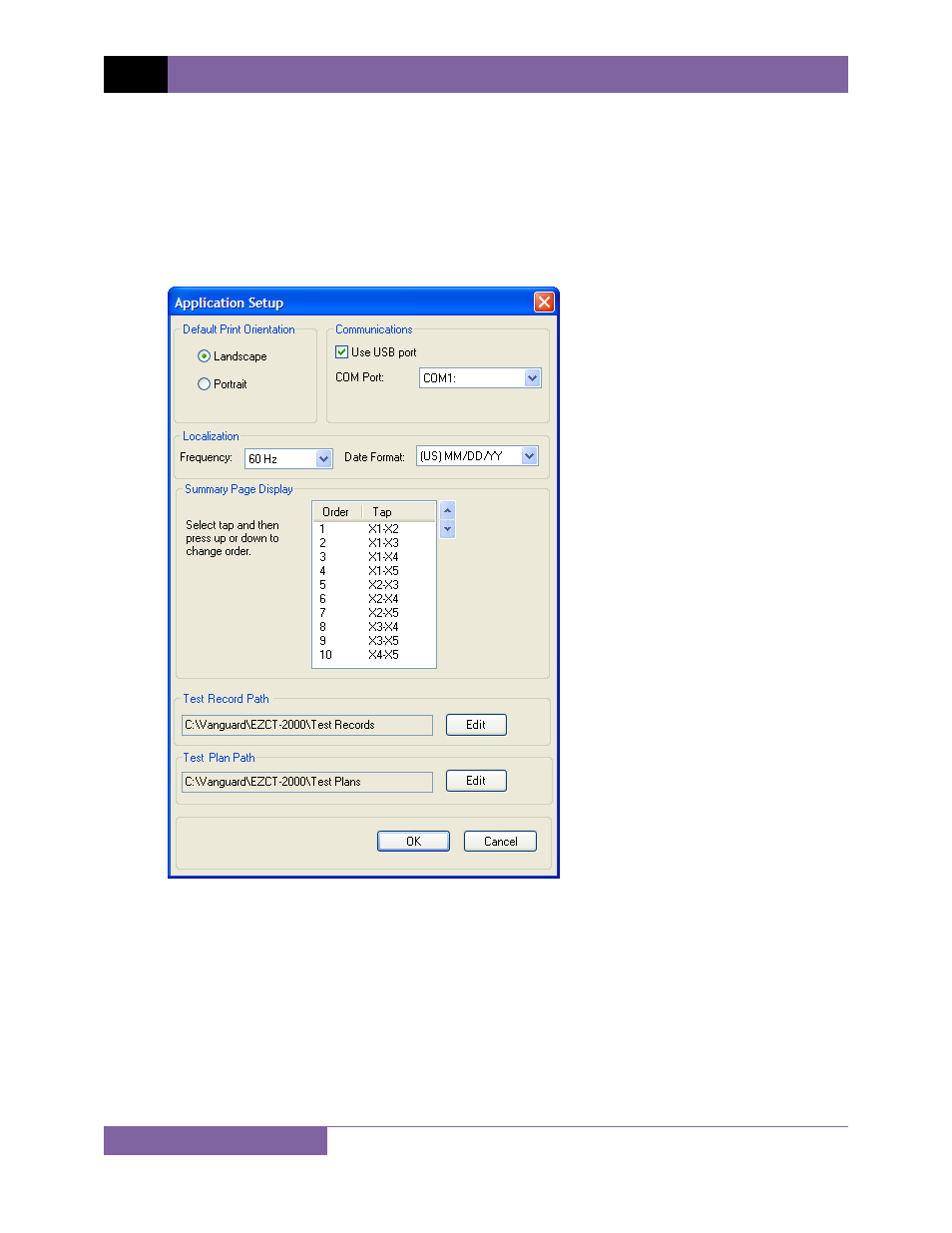

Application Setup...). The following window will be displayed:
a. Default Print Orientation
Select the default print orientation for printing test results by clicking on either the
“Landscape” (horizontal) or “Portrait” (vertical) radio button. The landscape
orientation is recommended for printing test records.
b. Communications
If the CT Tester is connected to the PC via the USB port, check the “Use USB port”
checkbox. You can ignore the “Port:” drop down lists.
