4.0 WORKING WITH TEST RECORDS

The EZCT-2000 software can be used to retrieve test records from a CT Tester or from the PC
hard drive. Once a test record is retrieved, you can change the record header information, print
the test results, change the nameplate ratio values, change the knee point marker, change the
frequency, add or modify test notes, and save the record to the hard drive.

4.1

Retrieving Test Records From a CT Tester

To retrieve a test record from a CT Tester:

1. Make sure the EZCT-2000 software is running. Connect the CT Tester to the PC via either

the RS-232C port or the USB port.

NOTE

When a device is connected and is under PC control, the title bar of the
EZCT-2000 software will display the name of the connected device as

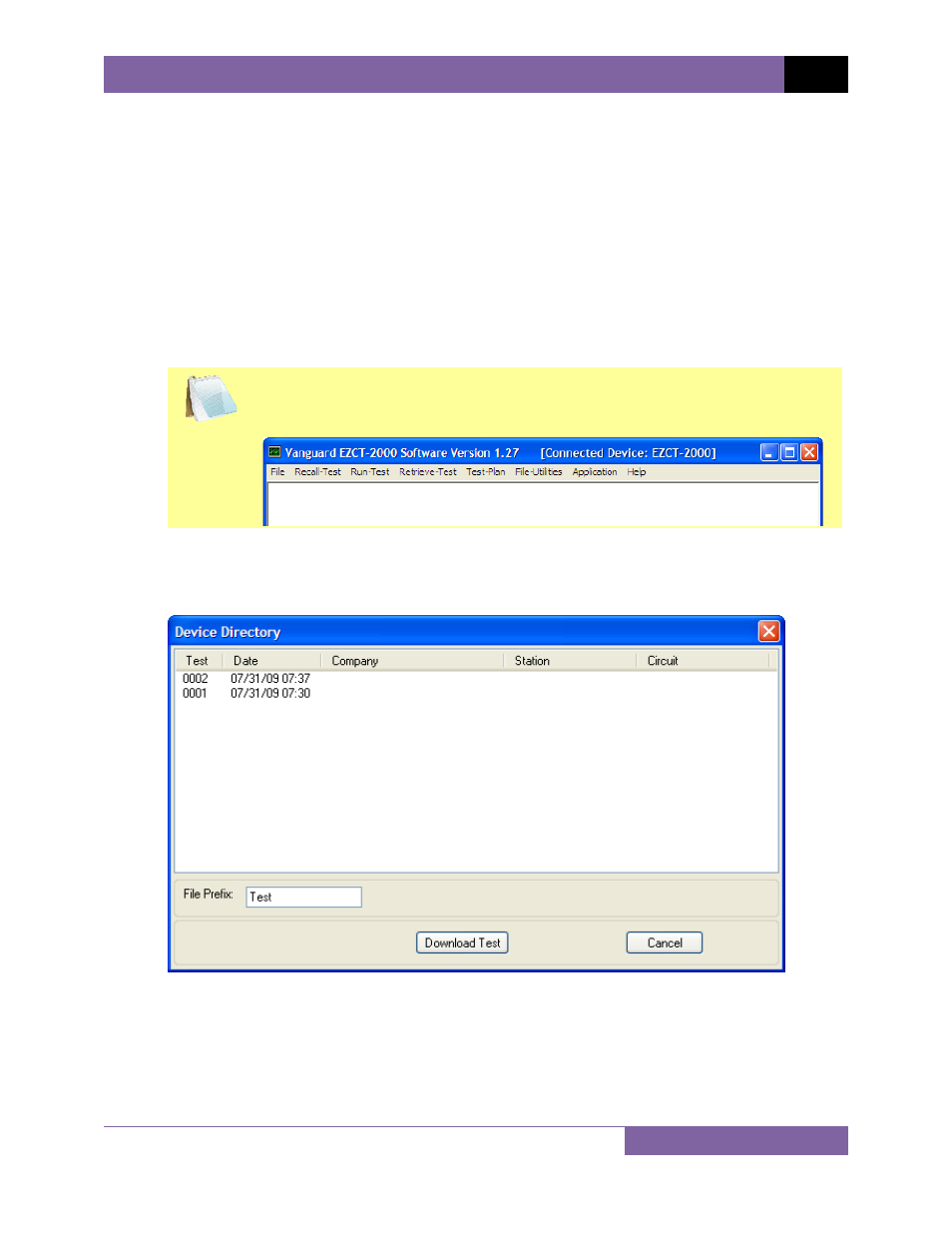

shown below:

2. Click on the Retrieve-Test menu (alternatively you can click on the File menu and then

select Retrieve Test Record From Device...). A window will appear listing a directory of all
the test records stored in the CT Tester’s memory as shown below:

3. You can select a test record to be retrieved by clicking on the test record number. The

selected record will be highlighted. You may select multiple records by holding down the
[CTRL] key and clicking on the record numbers. All selected records will be highlighted.
You may de-select a selected record by holding down the [CTRL] key and clicking on the
selected record number a second time.
