REV 1 EZCT-2000 VERSION 1.x SOFTWARE MANUAL

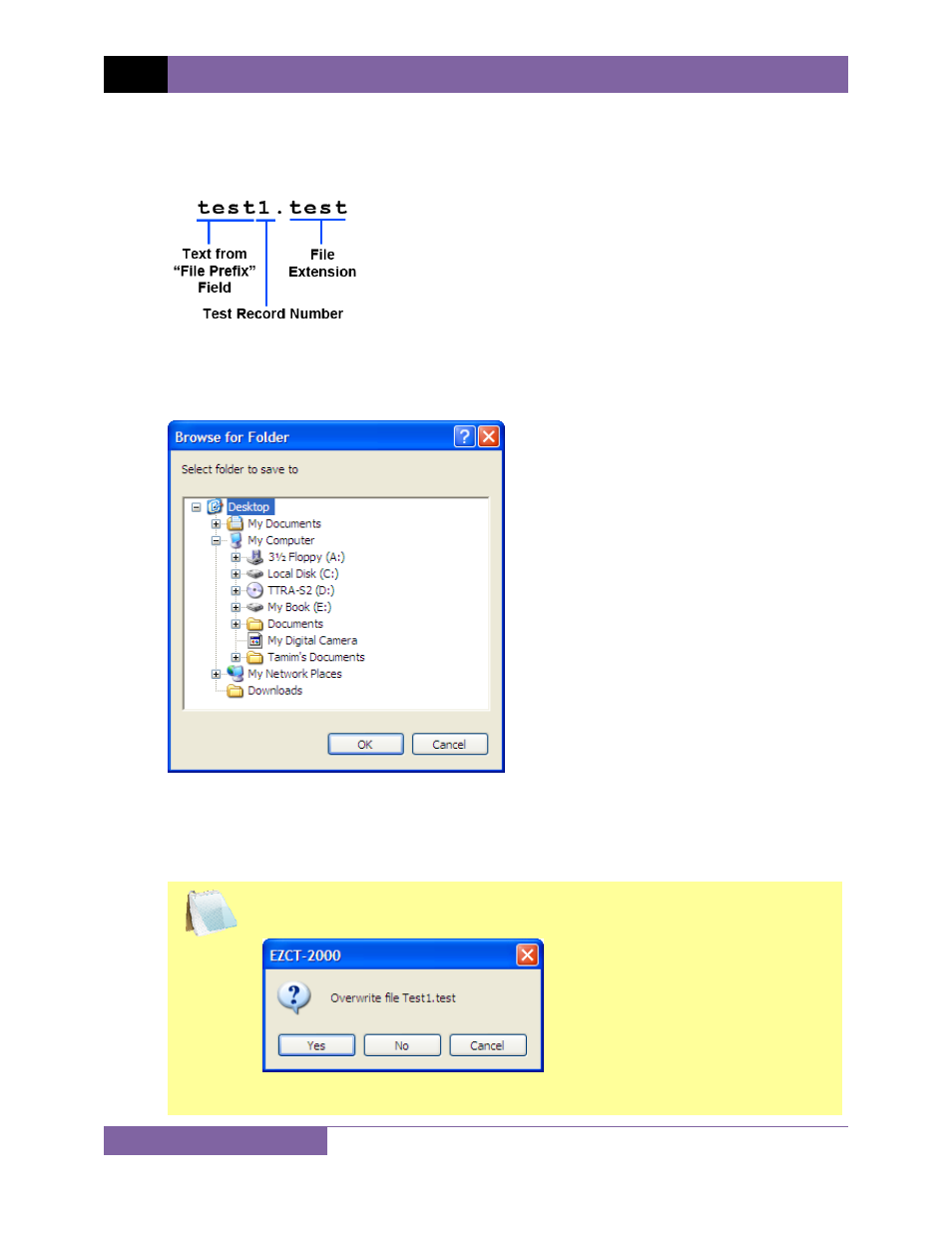

4. The “File Prefix” input field allows you to enter a word that will be used as part of the

filename for the stored record on the PC hard drive. When a test record is retrieved
from a CT Tester and stored on the hard drive, the filename is in the following format:

So if you would like the filename to be “sample_test1.test”, enter the word sample_test
in the “File Prefix” input field.

5. Click on the “Download Test” button. The following window will be displayed:

6. Browse to the folder where you would like the test record(s) to be saved and then click

on the “OK” button. The selected test record(s) will be retrieved from the CT Tester and
saved in the selected folder. The last test record that was retrieved will be displayed in
the EZCT-2000 software.

NOTE

If a test record file with the same name already exists at the storage
location, the following window will be displayed:

To cancel the retrieval process, click on the “Cancel” button.
