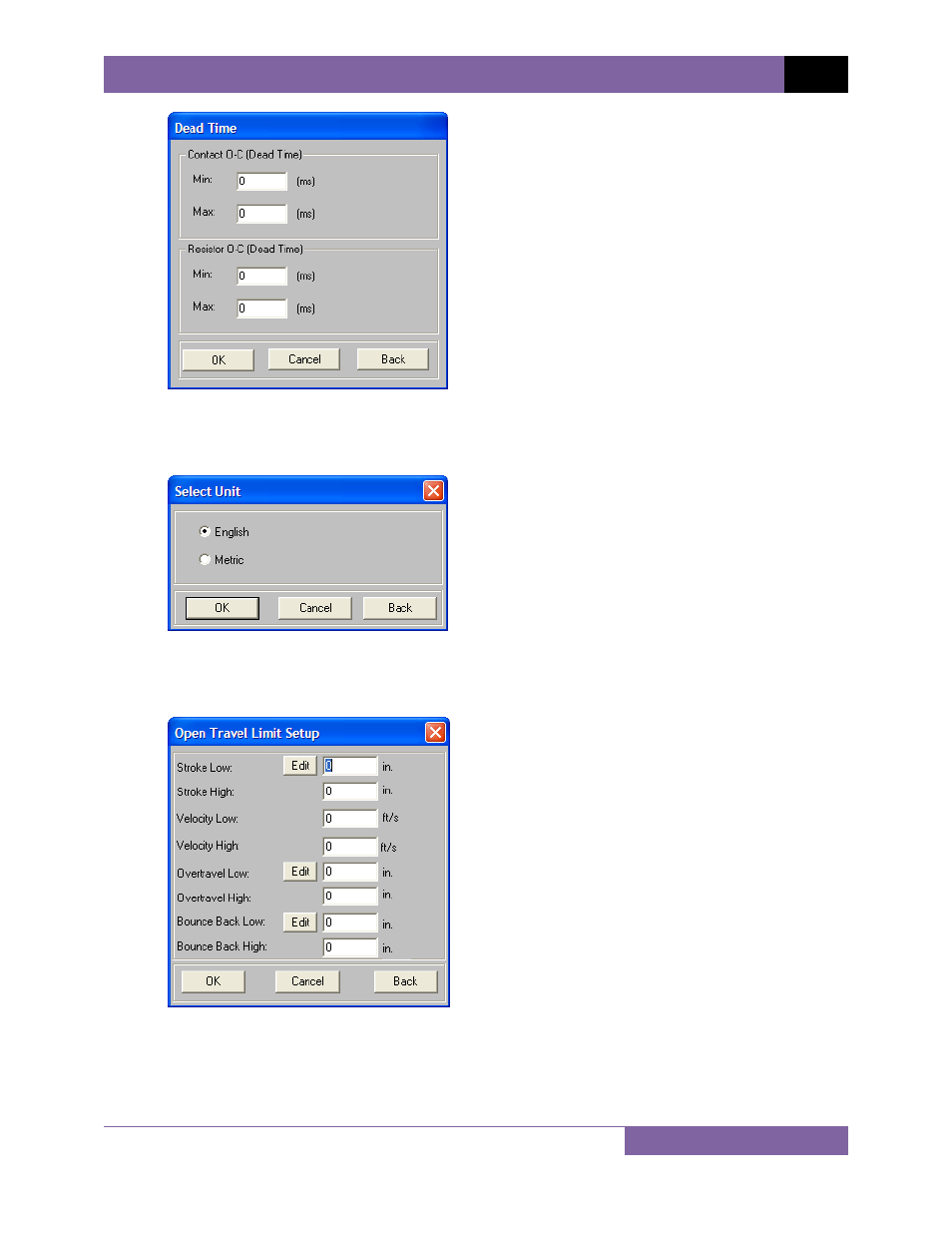

7. This dialog box is used to define the Contact and Resistor Open-Close Times or “Contact
Dead Times” (in milli-seconds). Input the corresponding values for each field and click on
the “OK” button. The following window will be displayed:
8. The VCBA’s tabulated report supports both English and Metric units of measure. Click on
the English or Metric radio button to set the units of measure, and then click on the
“OK” button. The following window will be displayed:
9. This dialog box is used to define the breaker’s Open stroke, velocity, over-travel, and
bounce-back limits.
