After entering all the values, click on the “OK” button. The following window will be
displayed:

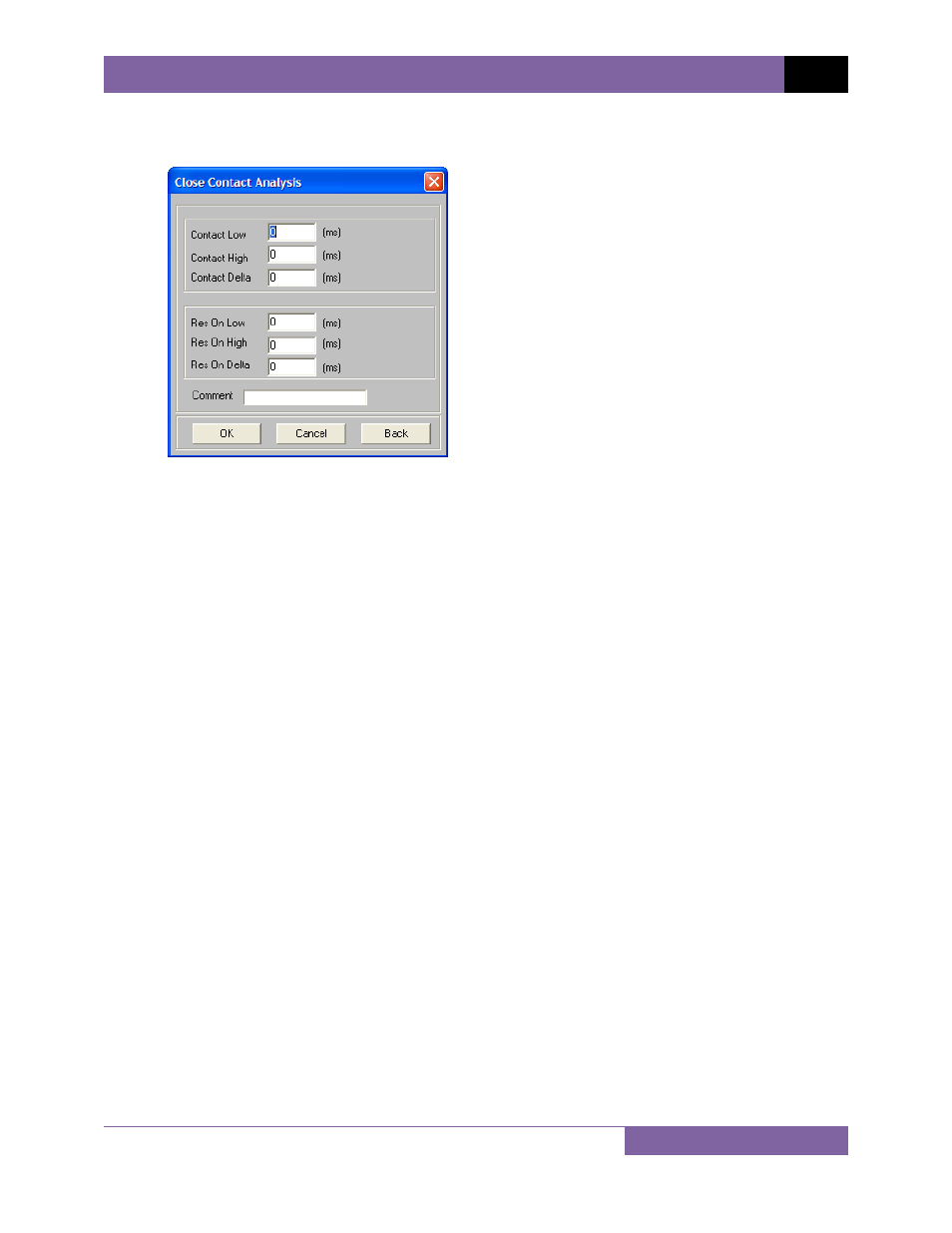

5. This dialog box is used to define the Close Contact Analysis parameters. Enter the
Contact Low, Contact High, Contact Delta, Resistor On Low, Resistor On High, and
Resistor On Delta times (in milli-seconds) in each corresponding field.
