14 Installation (for qualified installers only)
© Travis Industries 4040830 100-01143

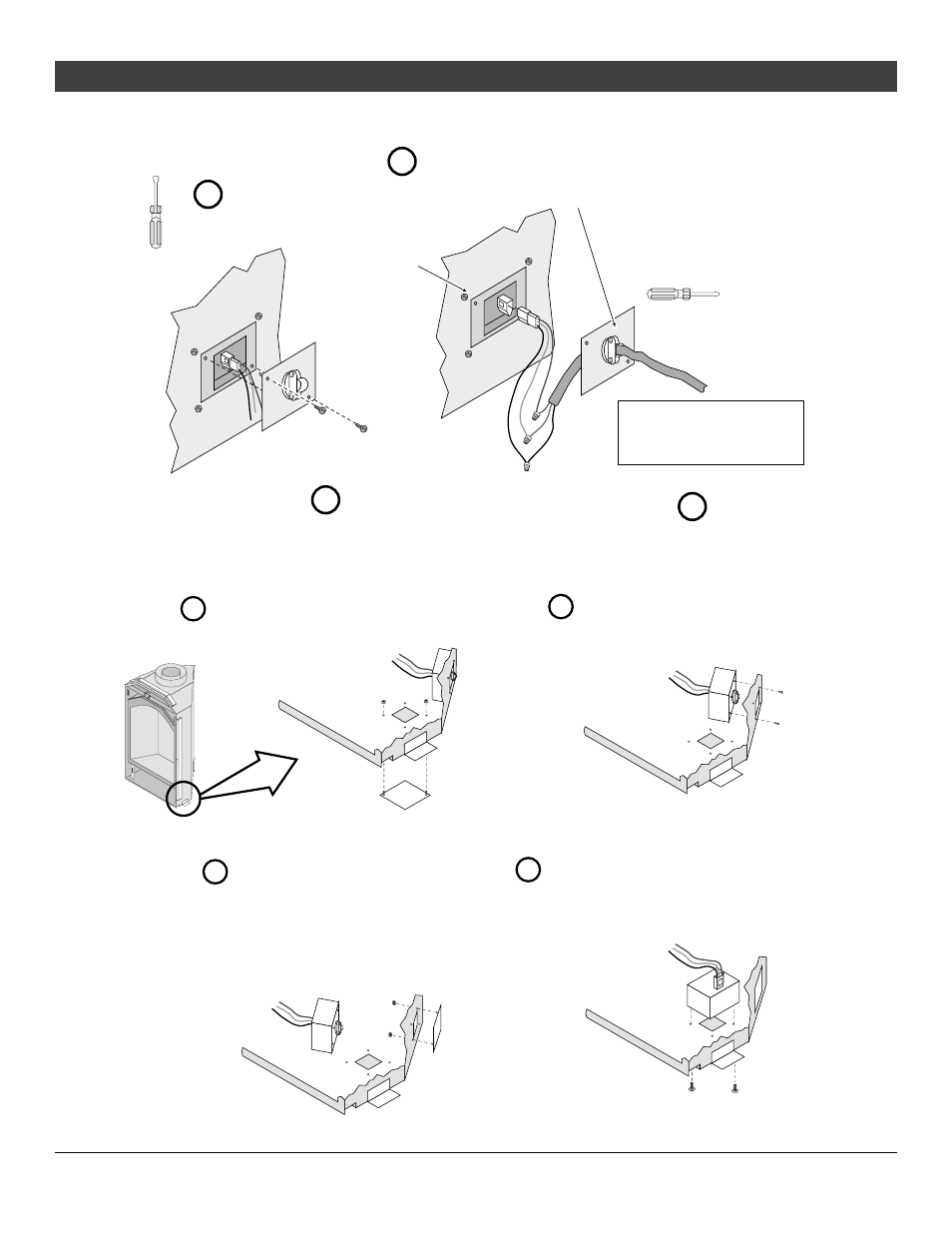

Electrical Line Connection
a
b
Insert the sheathed cable from the power source through
this cable clamp. Once the wires are attached, tighten
the clamp to secure the cable.
Replace the
cover removed
in step "a".
Attach the common (white), ground (exposed or green)
wires, and hot (black) wires from the power source to the
electrical connector (attached to the fireplace).
c
d
Standard
Screwdriver
Remove the cover
from the fireplace
junction box.
1/4" Nutdriver
WARNING: Make sure power is
off from the power lead before
conducting any wiring.
Electrical
Connector
Optional Electrical Line Location
Remove the two screws securing the
electrical inlet (save these screws). Remove the cover plate on the bottom of the
fireplace (save these nuts).
Position the electrical inlet assembly over the
hole in the baseplate of the fireplace and
secure using the screws removed in step “b”.
a b
c
Position the cover plate over the
electrical inlet hole on the right side
of the fireplace and secure using the
nuts removed in step “a”.
d
