Avalon Stoves 21 TRV - Manual

Avalon Hideaway Bungalow Face
(95700121)
Page 1 of 4 Printed April 16, 2008
COMPATIBILITY
• Avalon Hideaway Fireplace
PACKING LIST
• Face (includes Backing Plate and Doors)
• (2) Handles
• (4) 8-32 x 1/2" Screws
• Push-On Face Brackets (for 21 TRV Only)
INSTALLATION INSTRUCTIONS
N O T E : If installing with thick facing or retrofitting tile, follow the directions for “Push-On” face brackets on page 3.
! Turn off gas to the appliance and make sure it has fully cooled prior to conducting service.

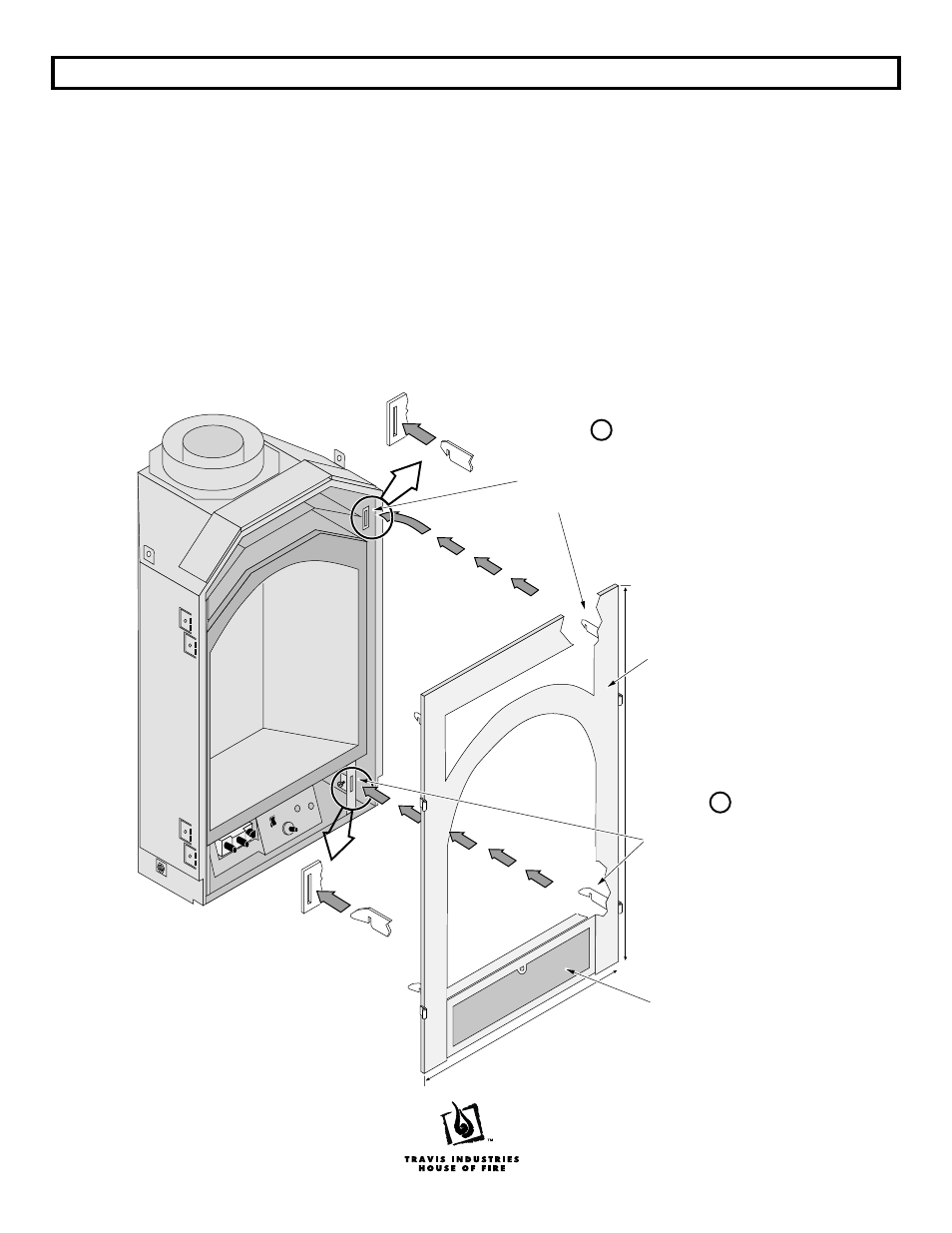

1 Remove the doors from the backing plate. Install the backing plate as shown in the illustration below.
Tilt the backing plate back and
insert the bottom brackets into
the lower slots until they lock in
place.
Lift and rotate the backing plate
forward until the top brackets lock
into the upper slots.
a
b
21-1/8”
35-3/8”
Backing Plate
Access Door
(for accessing controls)
