EM/RX2 Three Phase Electricity Meter Installation Instructions TG200133 Issue 3 04/03/08
3
Installation Instructions
EM/RX2
INSTALLATION
(continued)
SIG
COM
N
(orange)+
IQ1xx/2xx
IQ3
(black) -
screen
screen
Configure
M e t e r
9

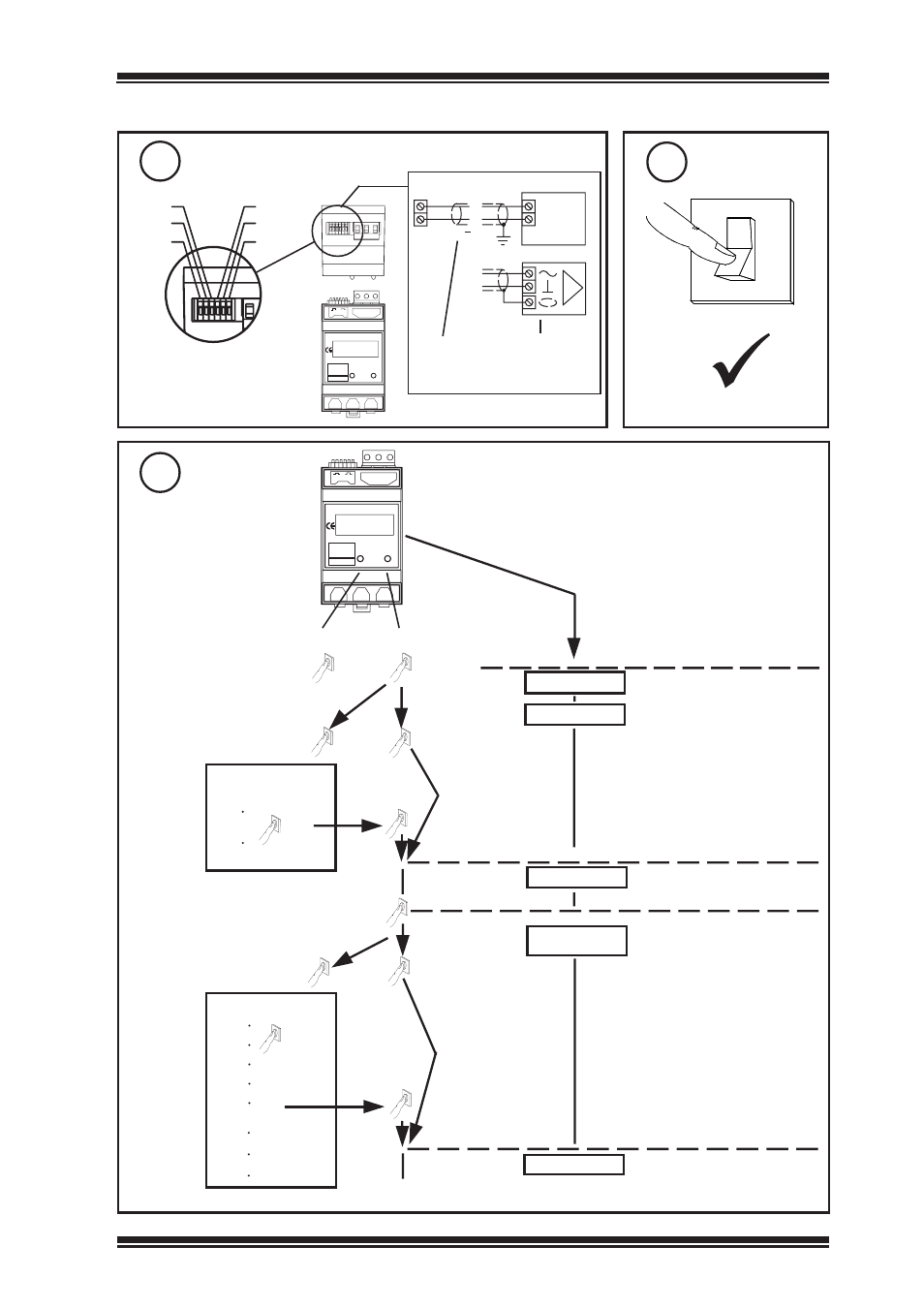

Connect Pulse Output to IQ
7
Switch On
8
O
I
if required
PAGE
SET
V1
Volts Input
V3
V2
Output
CT 1
CT 2
CT 3
24v Max
KLIK 2
DUAL PULSE
MULTI FUNCTION
ENERGY METER
SINERGY LTD.
SK6 7GP ENGLAND
Tel: 01663 764833
Pulse
PAGE
SET
6 secs
SEt UP
Axxxx
(if no change)
if using 1CT,
set = 3 x Ip
Current Rating
xxx = 10A
xxx = 3000A
Puls2
PEr.1
kW
kVA
(if no change)
(if changing period or kW/
kVA demand)
KW 0.1
10
15
30
KVA 0.1
10
15
30
CT PRIMARY CURRENT
(Ip)
SECOND PULSE RELAY
(not fitted)
INTEGRATION PERIOD
kW or kVA Demand
ALxxx
ALARM SETPOINT
(not fitted)
- & -
(if changing current rating)
OR
OR
continued next page
PAGE
SET
V1
Volts Input
V3
V2
Output
CT 1
CT 2
CT 3
24v Max
KLIK 2
DUAL PULSE
MULTI FUNCTION
ENERGY METER
SINERGY LTD.
SK6 7GP ENGLAND
Tel: 01663 764833
Pulse
black
pink
black
purple
black
orange
IQ Controller
digital input
channel
polarity
independent
