TREND T_PC - Manual (Page 3)

T/PC PRT Contact Temperature Sensor Installation Instructions TG100508A Issue 4/B 13/02/07 3
Installation Instructions T/PC

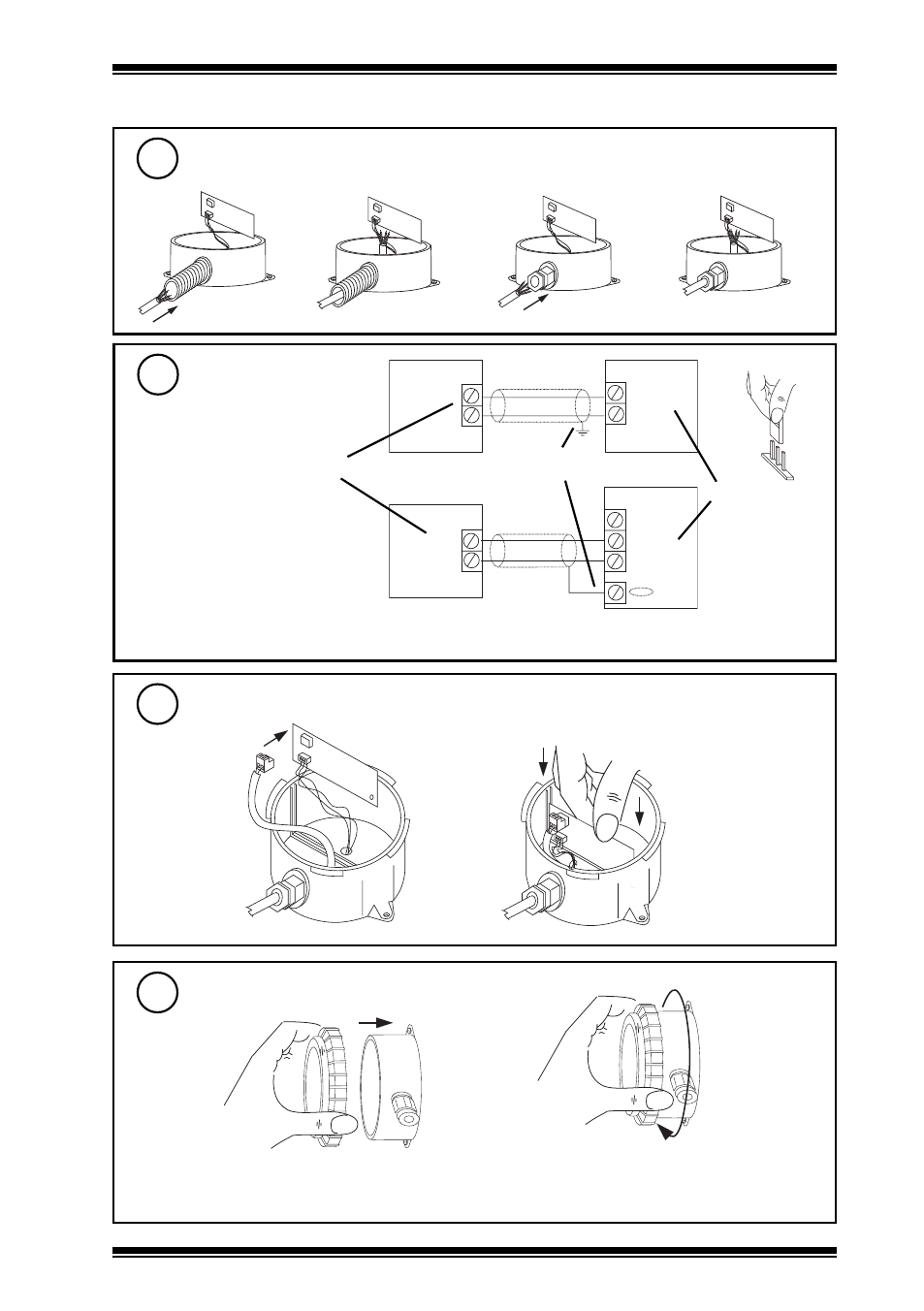

Installation (continued)
Wire to Controller 8
Insert Cable
7
either use M20 flexible conduit or use M16 cable gland
IQ1xx, IQ2xx
polarity independent
Sensor
24 Vdc
IN
Terminate screen at IQ end only
Analogue input
channel linked
for current (I)
I
IQ system TP/I/22/HF/200 (Belden
8761) cable recommended.
Terminal size 0.5 to 2.5 mm
2 (14 to
20 AWG)
IQ3
Sensor 0 (0 V)
N (in)
Note that if connecting to an IQ22x controller (including /ADL or /OC), do not connect directly to C (+24V),
instead connect to AUX+ (+24V).
+ (24 V)
Replace Connector 9
Replace Lid 10
a
b
Note that IP67 (NEMA6) rating is only achieved if the sensor is correctly installed with
cable or conduit connection fully tightened.
