T/PC Installation Instructions
T/PC PRT Contact Temperature Sensor Installation Instructions TG100508A Issue 4/B 13/02/07 2

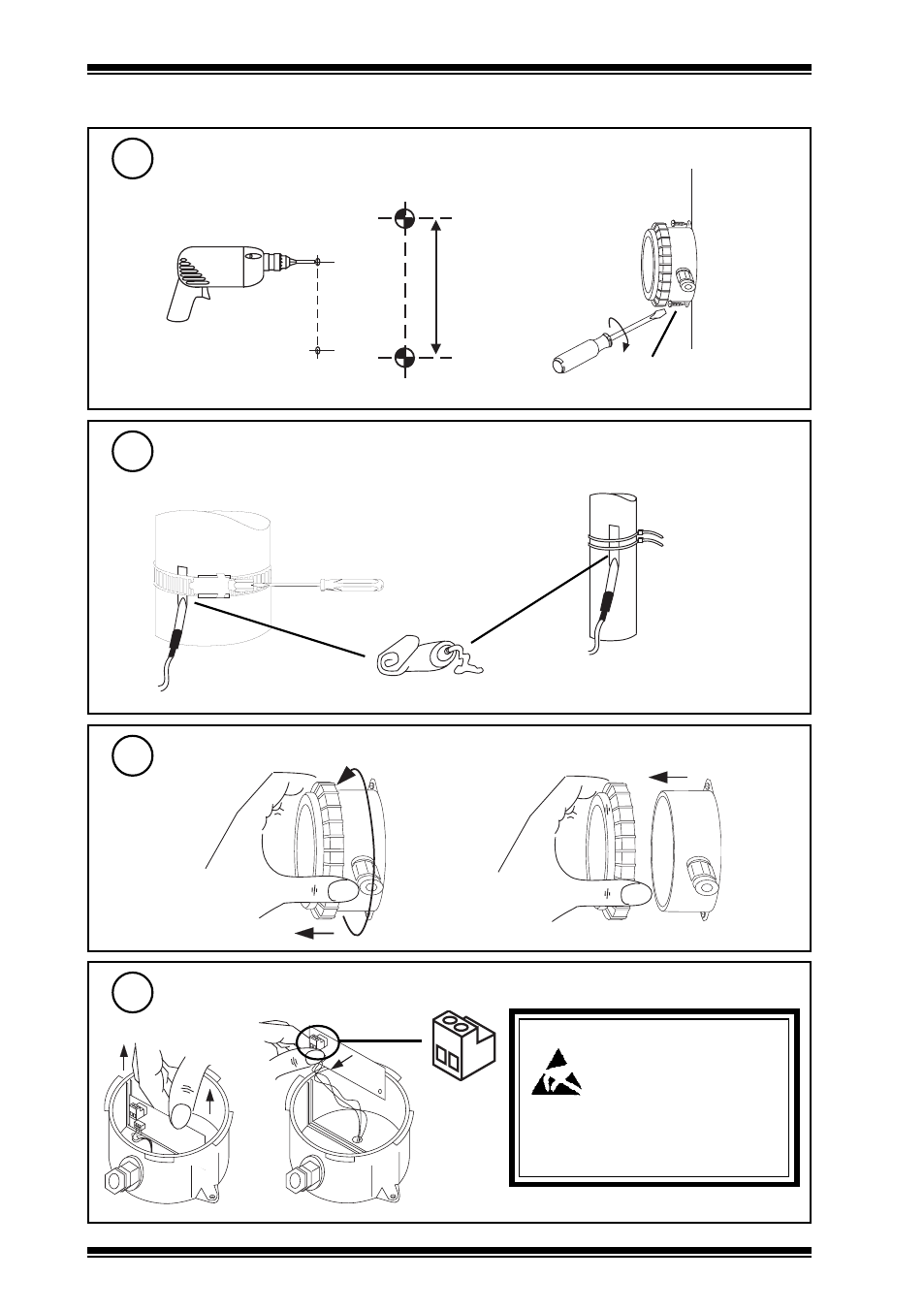

Fix to Wall
Installation (continued)
3
a b
85 mm (3.35”)
Fix Probe 4
either use jubilee clip (provided)
or use cable tie(s) (not provided)
recommended use of thermally conductive paste
Remove Lid 5
a
b
Drill 2 pilot holes Tighten 2 screws
2 off No 6 (M3.5) screws
Remove Connector 6
Caution: This unit contains static
sensitive devices. Suitable
anti-static precautions
should be taken throughtout
the operation to prevent
damage to the units. BS EN100015/
1 Basic Specification: protection of
electrostatic sensitive devices.
