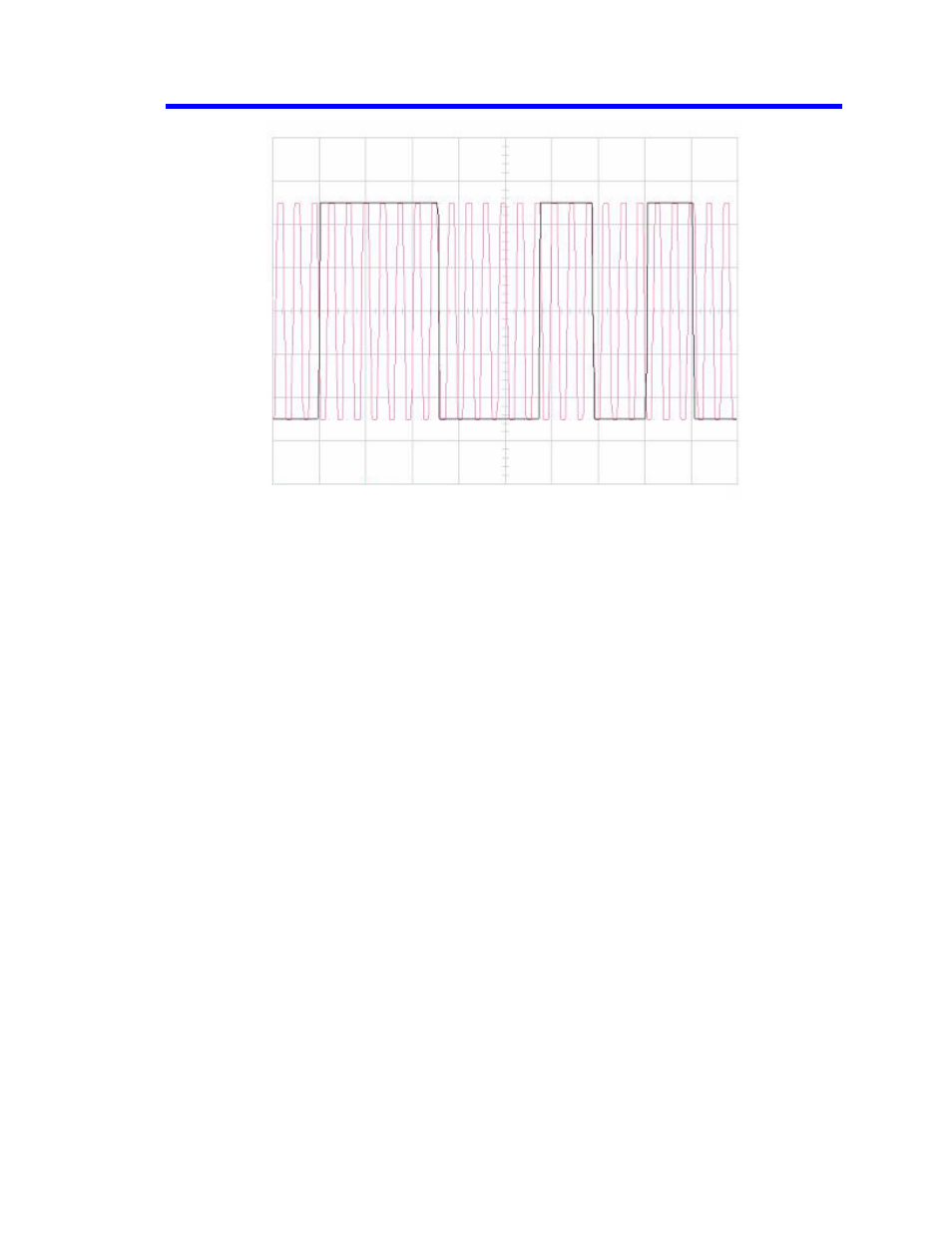

It should be mentioned that the extracted clock output is also exactly five divisions high (without
vertical zoom), and its edges are linear from -0.1 to +0.1 * T and from +0.4 to +0.6 * T. Therefore,
if there are 20 samples per T, each edge of the extracted clock signal has four samples between
the top and base. These samples are placed proportional to phase, so that the edge crosses 0 at
exactly 0 and 180 degrees VCO phase.
