Edit Test Limits
The Limits tab shows the Limit Set currently associated with the configuration. Any limit set can
be associated with a custom configuration by selecting it in this field.
The Limits Manager shows the settings for every test limit in a limit set. Those in the default set
are the limits defined by the standard.
To create a custom limit set:
1. On the Limits tab, click Limits Manager.
2. With the default set selected, click Copy Set and enter a name.
Note: You can also choose to copy and/or modify another custom set that has been
associated with this configuration.
3. Double click the limit to be modified, and in the pop-up enter the new values.

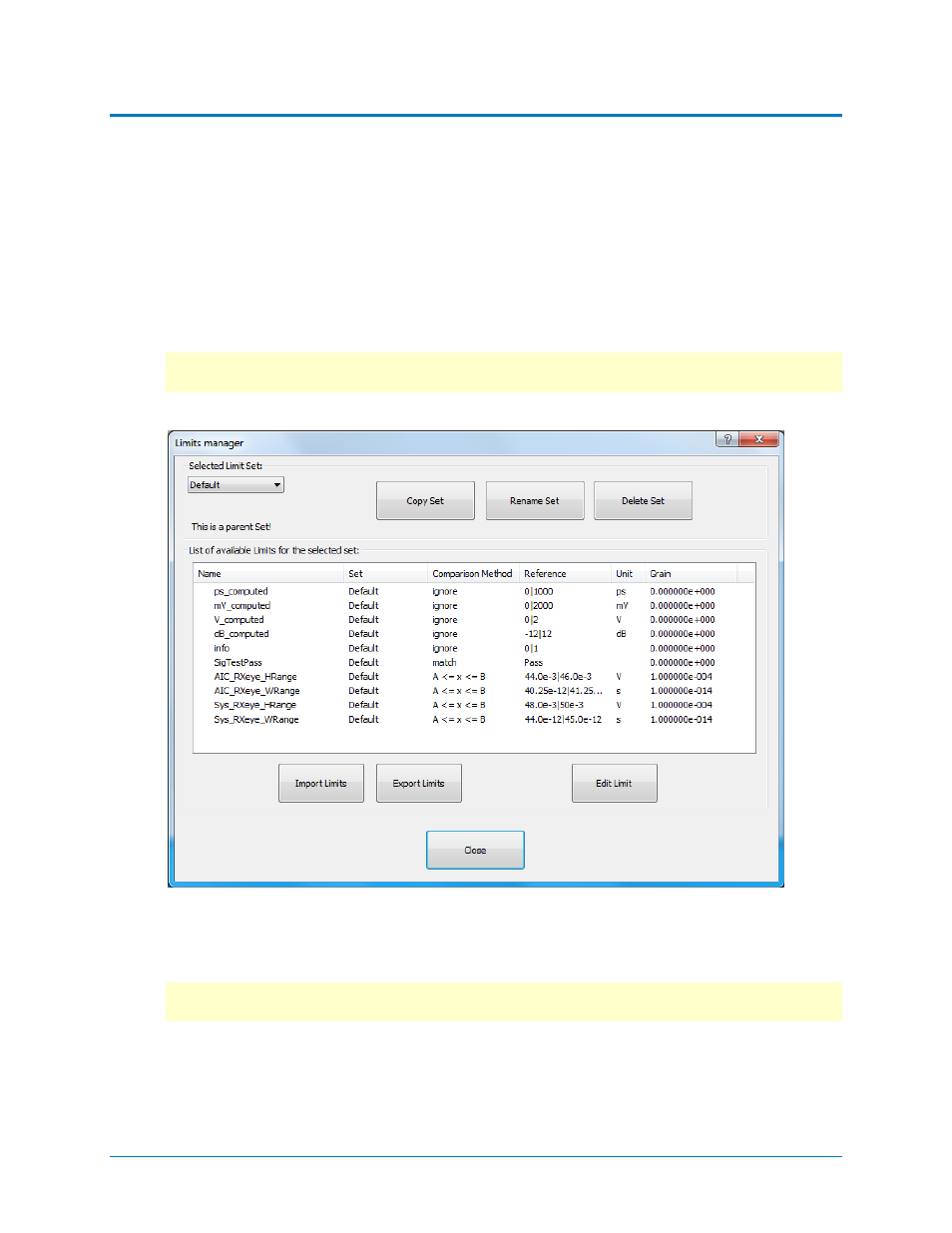

Figure 4 - Limits Manager dialog.
You can also Import Limits from a .csv file. Navigate to the file location after clicking the
button.
Tip: Likewise, Export Limits creates a .csv file from the current limit set. You may wish to
do this and copy it to format the input .csv file.
