4.7 Status Bar

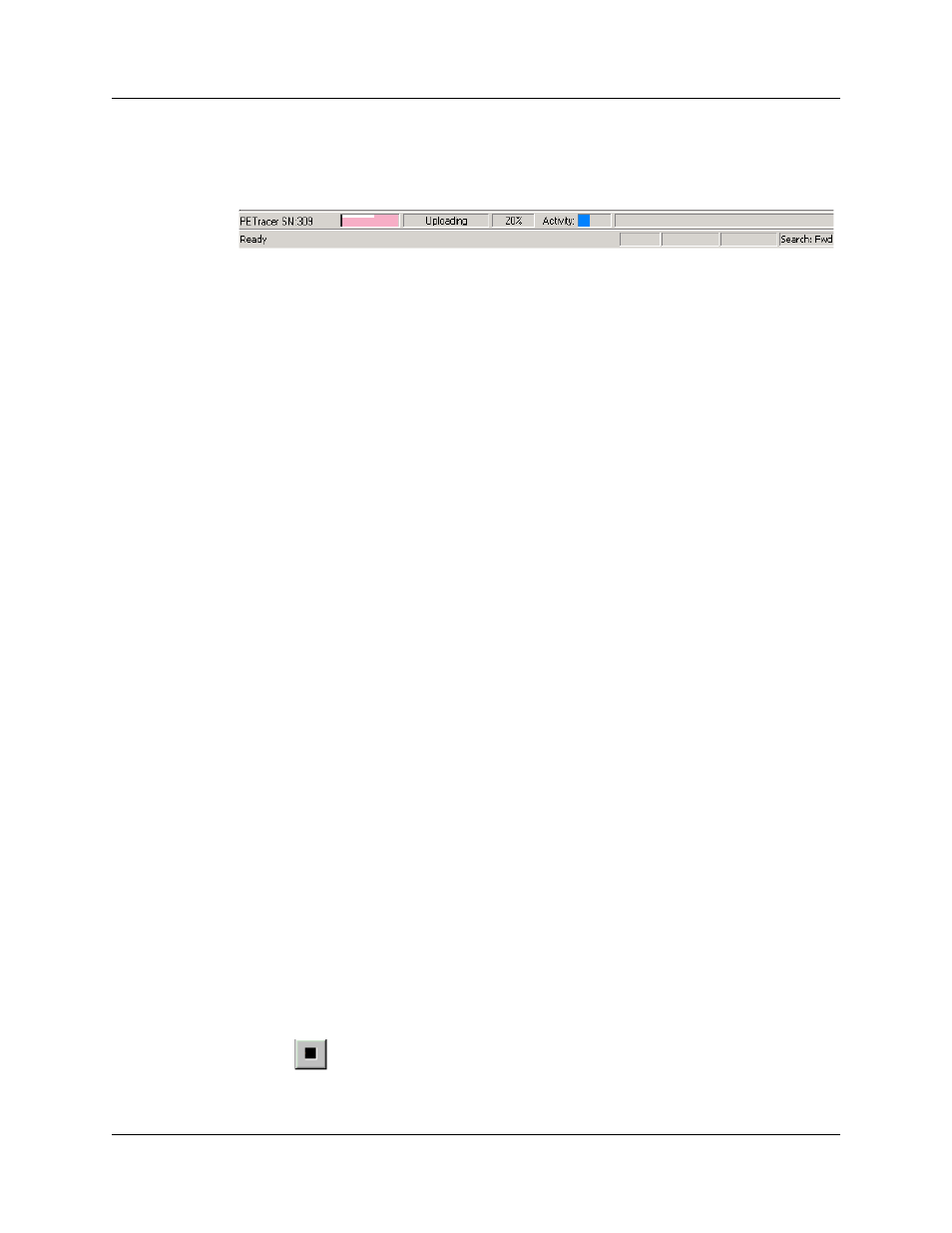

The Status Bar is a gray bar that runs along the bottom of the application window.
From left to right:
PETracer SN:309: Analyzer Serial Number
Ready: Analyzer Status
Recording Progress Bar: The colored bar to the right of the serial number represents
how much traffic has been recorded. The trigger point is indicated by the black line at the
left side of the bar. In this example, the trigger occurred at the very beginning of the CATC
Trace. If the trigger is set in the middle of the CATC Trace, the line is positioned in the
middle of the bar. Additionally, the color of the bar is different on each side of the trigger
point. For examples, see “Recording Progress Bar” on page 35. The white strip along the
top edge of the color bar indicates how much traffic has been uploaded from the Analyzer
buffer to the host machine.
Uploading and 20%: Indicates the Analyzer's recording status, what part of the
recording process the Analyzer is now in. In this example, the Analyzer is in the upload
stage and has completed 20% of the upload from the Analyzer to the host machine. See
“Recording Status” on page 35 for details on other status messages.
Activity: The colored bar moves to indicate that the Analyzer is currently recording.
Search: Fwd: Indicates search direction. The direction can be toggled to Search: Bwd
by double-clicking the search direction or by selecting Search Direction from the Search
menu.
Recording Progress Bar
This indicator bar changes color to reflect the recording progress.
•
Black vertical line is at the location of Trigger position.
•
Black vertical line wiggles when Trigger Position is nearly reached.
•
Field to right of Trigger Position changes color to indicate post-trigger activity.
•
Upper half of progress indicator turns white when recording is complete.
Recording Status
The second segment from the left in the Status Bar indicates recording status.
During recording, this status flashes one of the following messages:
•
Trigger?
•
Triggered!
•
Uploading
After recording stops, the message changes to
•
Uploading data - x% done (where x equals the percent that has been uploaded.)
As uploading progresses, the percent increases to 100. You can abort this upload if you
wish by pressing the
clicking
in the Tool Bar.
