9.9 Packet Header Bar

The Packet Header bar shows packet header information.

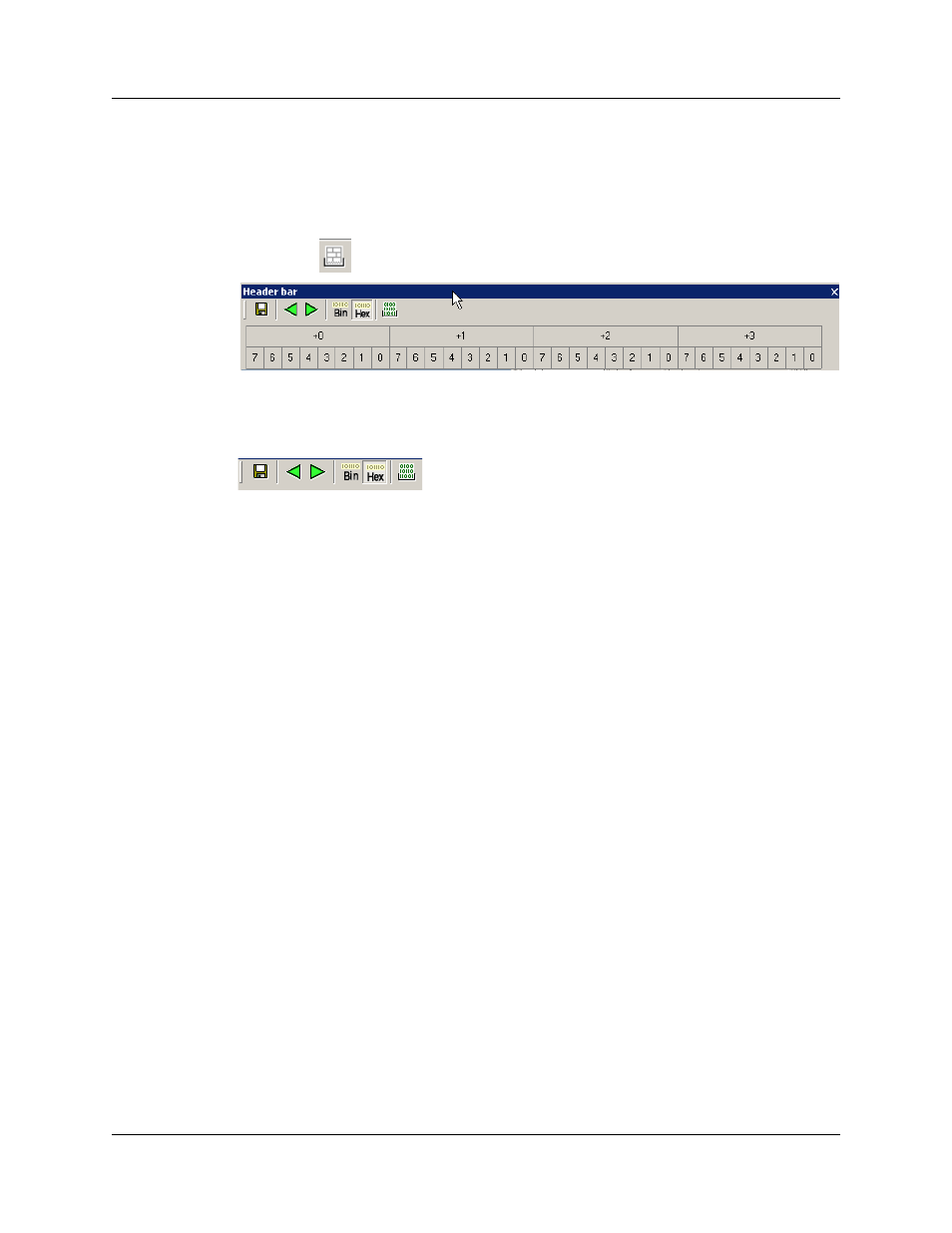

To obtain the Packet Header bar, select Report > Packet Header



or click the

Packet Header toolbar icon.

The toolbar allows you to

Save, go to Previous or Next, display Hexadecimal or Binary, and show

the Packet Data window.
