Waveform math, Waveform math overview, Getting started manual – Teledyne LeCroy WaveAce User Manual
Page 58

Getting Started Manual
WA-GSM-E RevB
58

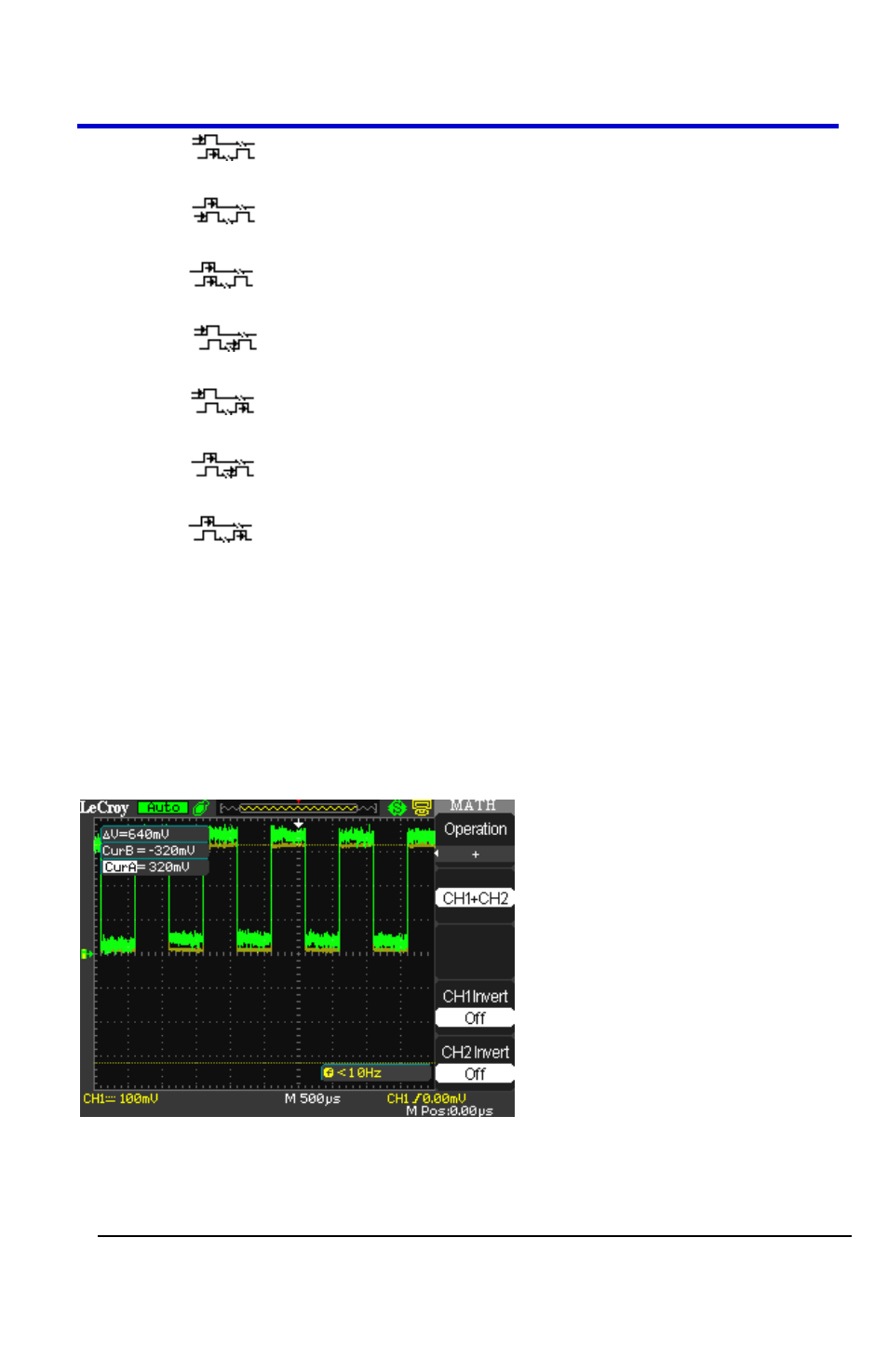

FRF
- Time between the first rising edge of Source 1 and the
first falling edge of Source 2.
FFR
- Time between the first falling edge of Source 1 and the
first rising edge of Source 2.
FFF
- Time between the first falling edge of Source 1 and the
first falling edge of Source 2.
LRR
- Time between the first rising edge of Source 1 and the
last rising edge of Source 2.
LRF
- Time between the first rising edge of Source 1 and the
last falling edge of Source 2.
LFR
- Time between the first falling edge of Source 1 and the
last rising edge of Source 2.
LFF
- Time between the first falling edge of Source 1 and the
last falling edge of Source 2.
Waveform Math
Waveform Math Overview
Standard math functions include addition, subtraction, multiplication,
division, and FFT. For more information on FFT, see the FFT (on page 59)
section. Press the MATH front panel button in the Vertical Control group
to display the Math menu.
1. Press the Operation option button and select a math operator +, -,
*, /, or FFT.
