WaveAce Series
39 WA-GSM-E RevB


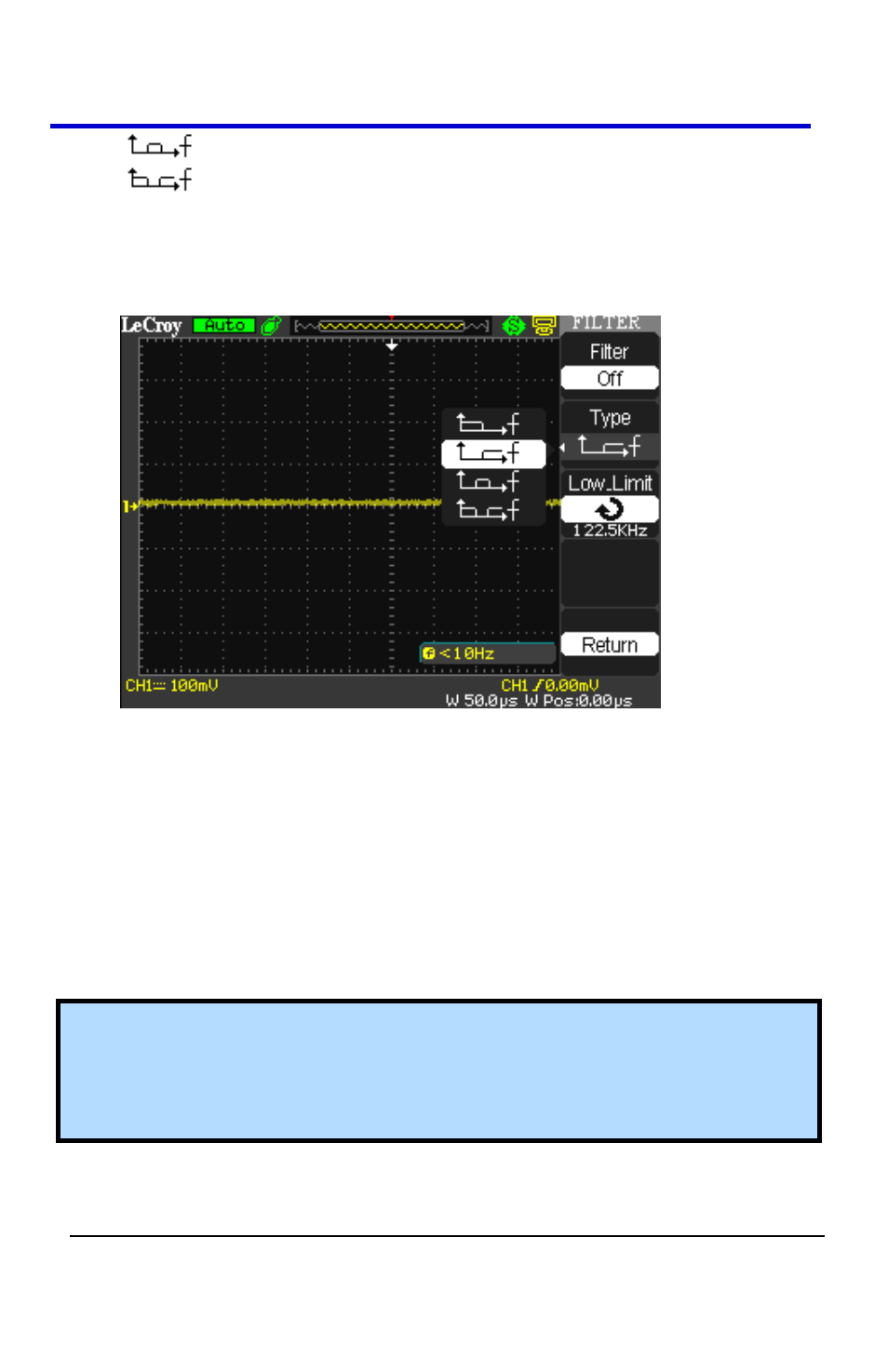

Band Pass Filter (BPF)

Band Stop Filter
Use the following steps to set the digital filter.
1. Turn on the digital filter by pressing the desired channel button -
CH1 or CH2 (or CH3 or 4 on 4 channel models).
2. On the channel menu, press the Next Page option button, showing
page 2/2.
3. Press the Filter option button on page 2/2. The Filter menu opens.
4. Press the Filter option button and select On.
5. Press the Type option button and select a digital filter type.
6. Press the Upp. Limit option button and turn the Adjust front panel
knob to set the Upper limit.
7. Press the Low. Limit option button and turn the Adjust front panel
knob to set the Lower limit.
Note: If you select the Low Pass Filter (LPF) type, you can only set an
Upper Limit. If you select the High Pass Filter (HPF) type, you can only set
a Lower Limit. For both Band Pass Filter (BPF) and Band Stop Filter, you
can set both Upper and Lower Limits.
