Math
Math traces display the result of applying a mathematical function (e.g., FFT) to one or more channel traces. One important distinction between math
functions and measurement parameters is that the result of math is always another waveform, whereas the result of measurement is a number.

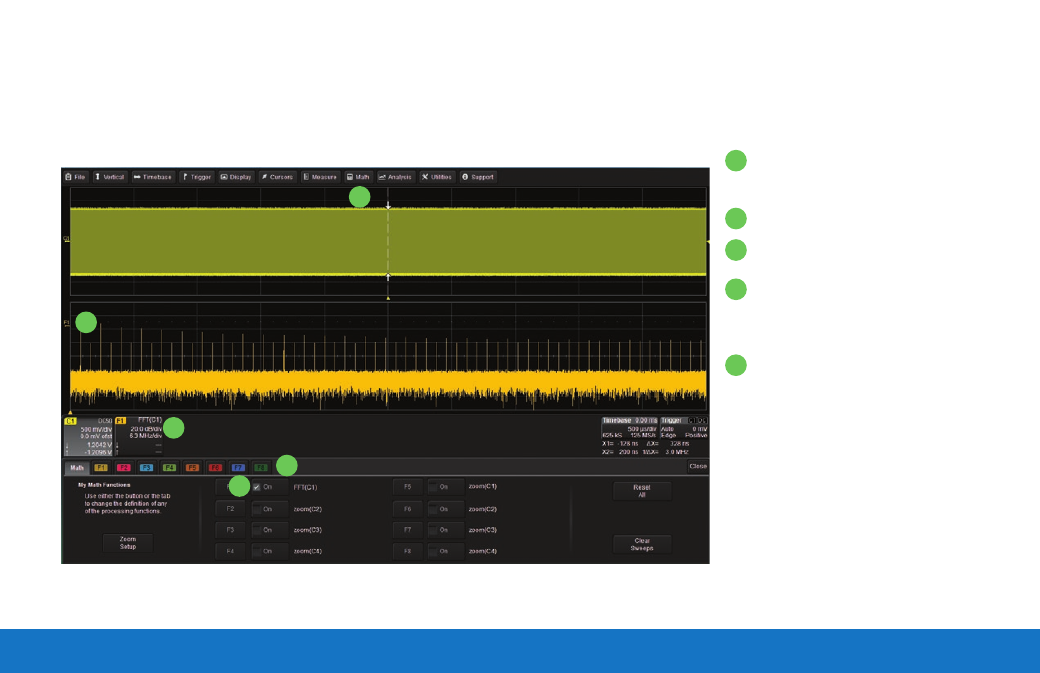

Choose Math > Math Setup or press
front panel Math button to open
Math dialog.
Check to turn on existing function.
Math trace (F1-F8) opens in
separate grid.
Touch F<#> tab or button and select
Trace On. (Deselect Trace On to
close trace). Choose Source channel
and math Operator.
Math descriptor box shows math
scaling. Touch to re-open function
tab and adjust trace.
A
B
C
D
E
A
B
C
D
E
