Teledyne LeCroy HDO 6000 Getting Started Guide - Manual (Page 35)

923011-00 Rev A
BASICS 31
Measurements & Statistics
Measurements are waveform parameters that can be expressed as numerical values, such as amplitude or frequency. You can set up-to-eight
simultaneous measurements on one or more channel traces and view the active readout in a table. Statistical measurements can be added to the
table of parameter values. You can also view measurements as a histicon, a miniature histogram. Levels can be set for certain parameters that
required them. Measurements gates can be used to only perform measurements on a specific portion of the waveform.

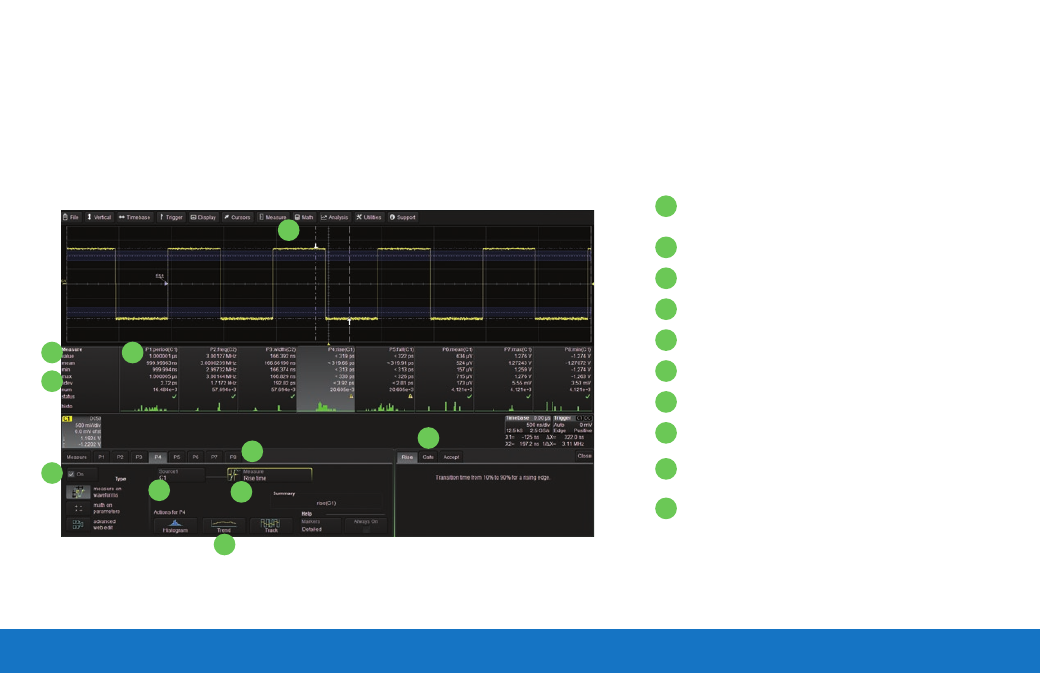

Choose Measure > Measure Setup to open the
Measure dialog.
Touch to re-open Measure dialog.
Statistics can be added to the readout.
Readout of parameter values.
Touch to show table of parameter values.
Touch to choose source channel.
Touch to choose parameter.
Touch P<#> tab to see parameter details.
Touch to display Histogram, Trend, or Track of
parameter measurements.
Touch to set measurement gates.
A
B
C D
E
F G
A
B
C
D
E
F
G
H
H
I
I
J
J
