Teledyne LeCroy HDO 6000 Getting Started Guide - Manual (Page 36)

923011-00 Rev A
BASICS 32

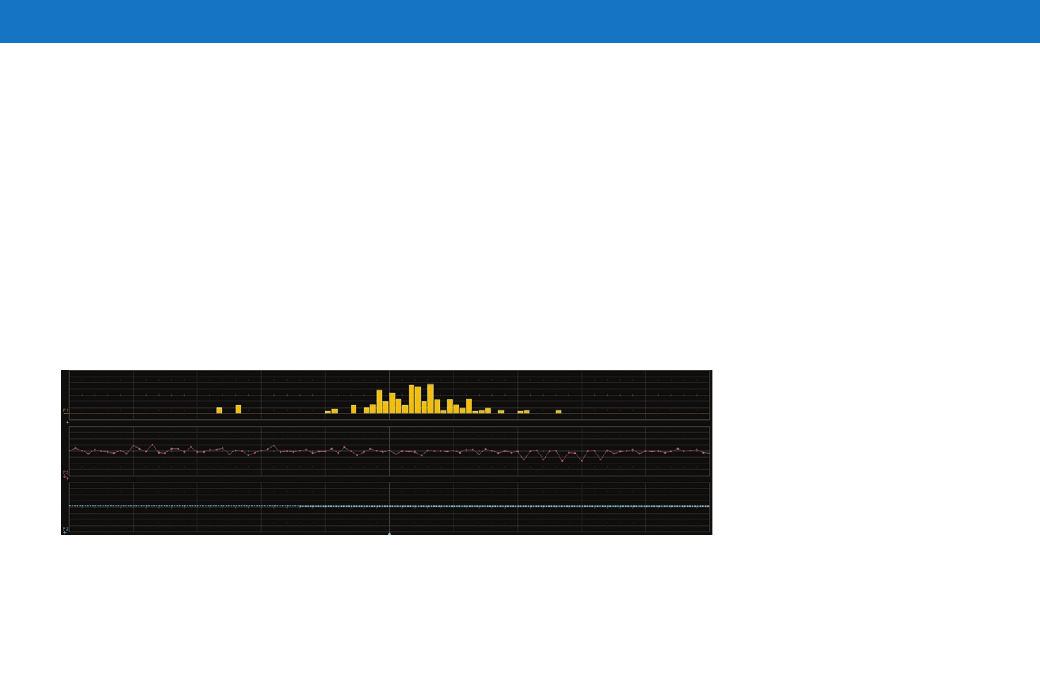

Histogram
Histograms represent the statistical distribution of measurement values within an incremental range (bin) as a bar chart. Touch the Parameter tab
(P<#>), then touch the Histogram button to open a histogram of that parameter in a new grid.
Trend
A trend is a waveform composed of a series of parameter measurements in the order the measurements were taken. The vertical units are those of
the source parameter, the horizontal unit is measurement number. The trend contains a single value for each measurement. Touch the Parameter tab
(P<#>), then touch the Trend button to open a new grid showing the trend of that parameter.
Track
A track is a waveform composed of parameter measurements that is time synchronous with the source waveform. The vertical units are those of the
source parameter and the horizontal units are seconds. In order to maintain time synchronism, the parameter values are posted at the sampling rate.
Track values are redundant in that the same value is repeated every sample period until the measurement changes. Touch the Parameter tab (P<#>),
then touch the Track button to open a histogram of that parameter in a new grid.
