6 922557-00 Rev A

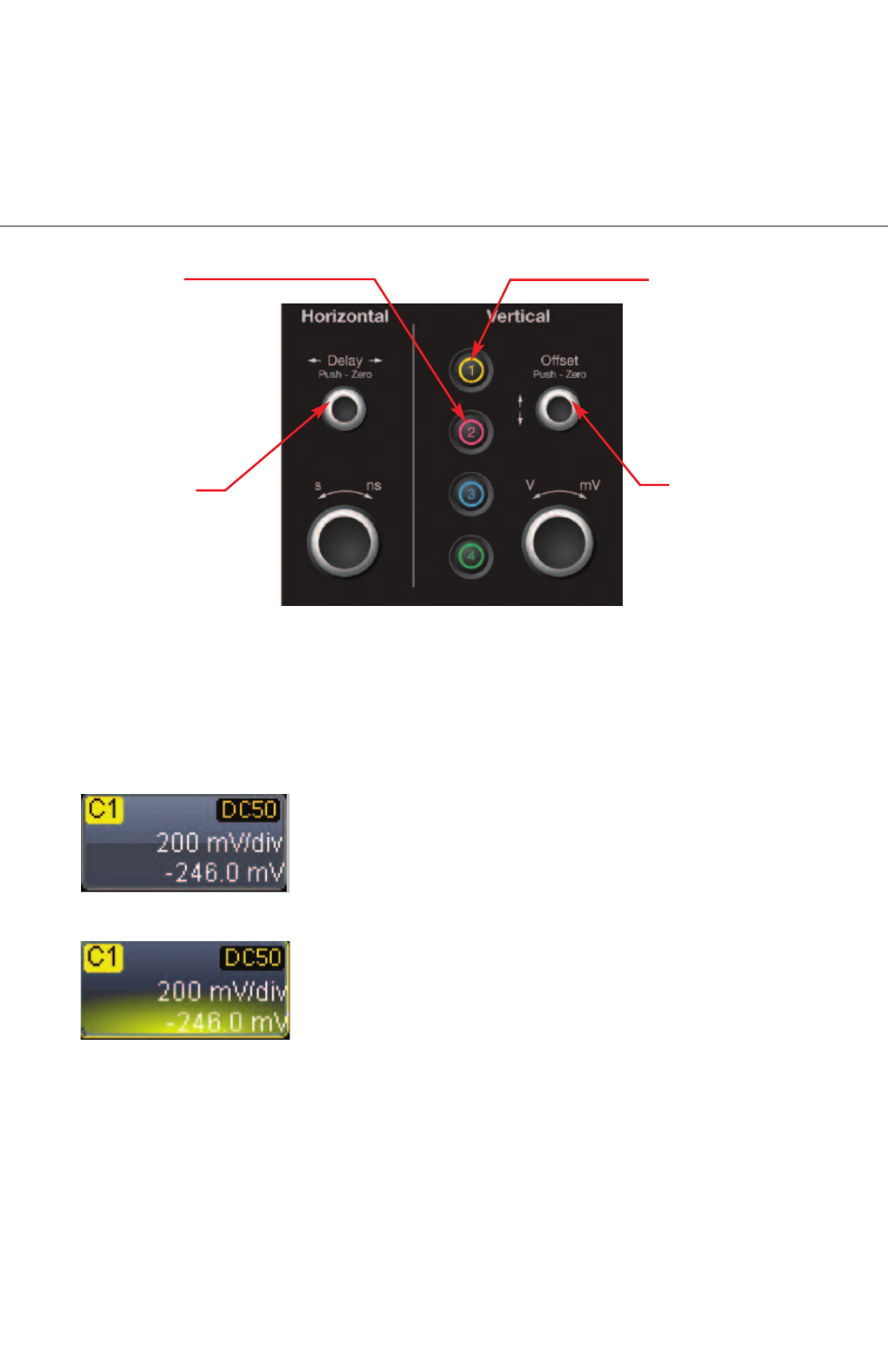

Vertical Controls are always “active” for one of the Channels. The coloring on the
descriptor labels indicates “active.” Note that only one channel can be active at a time.
If a channel is active, then it’s corresponding descriptor box is colored. If it is inactive,
then its descriptor box is gray colored.
Press Knob
to toggle
between zero
trigger delay
and new setting.
Press Knob
to toggle
between zero
offset and
new setting.
Light ON
Indicates that
the vertical
controls will
adjust that
channel (channel
is “active”).
Light OFF
Channel may
or may not be
displayed. Vertical
controls will
not adjust that
channel (channel
is “inactive”).
Inactive
Vertical controls will not
work for this
Active
Vertical controls will
work for this
Horizontal and
Vertical Controls
