Opens a Measurement selection pop-up menu. You can then
select up to 6 parameters (measurements) for the active channel
from this menu without leaving the Channel Setup menu.
Creates a zoom trace of the channel signal. The zoom trace
becomes active, and you can use the Math and Zoom controls
to modify its scale and position.
Opens a Math selection pop-up menu. You can then select a math
function for the active channel from this menu without leaving the
Channel Setup menu.
Copies the channel trace into its corresponding Memory
(Reference Waveform) location. For instance, C1 is loaded
into M1, C2 is loaded into M2, etc.
Automatically performs a vertical scaling that fits the waveform
into the grid.
Opens a Labeling pop-up menu that allows user-defined
labels tied to the waveform.
These shortcuts are available from the channel, zoom, math, and memory menus. They can
save you valuable setup time by predefining sources; and they provide additional features
(such as labeling of traces).
Shortcuts to Channel, Math, and Memory Menus
are provided to make it easy to access common functions. Touch the descriptor box to
display the menu.

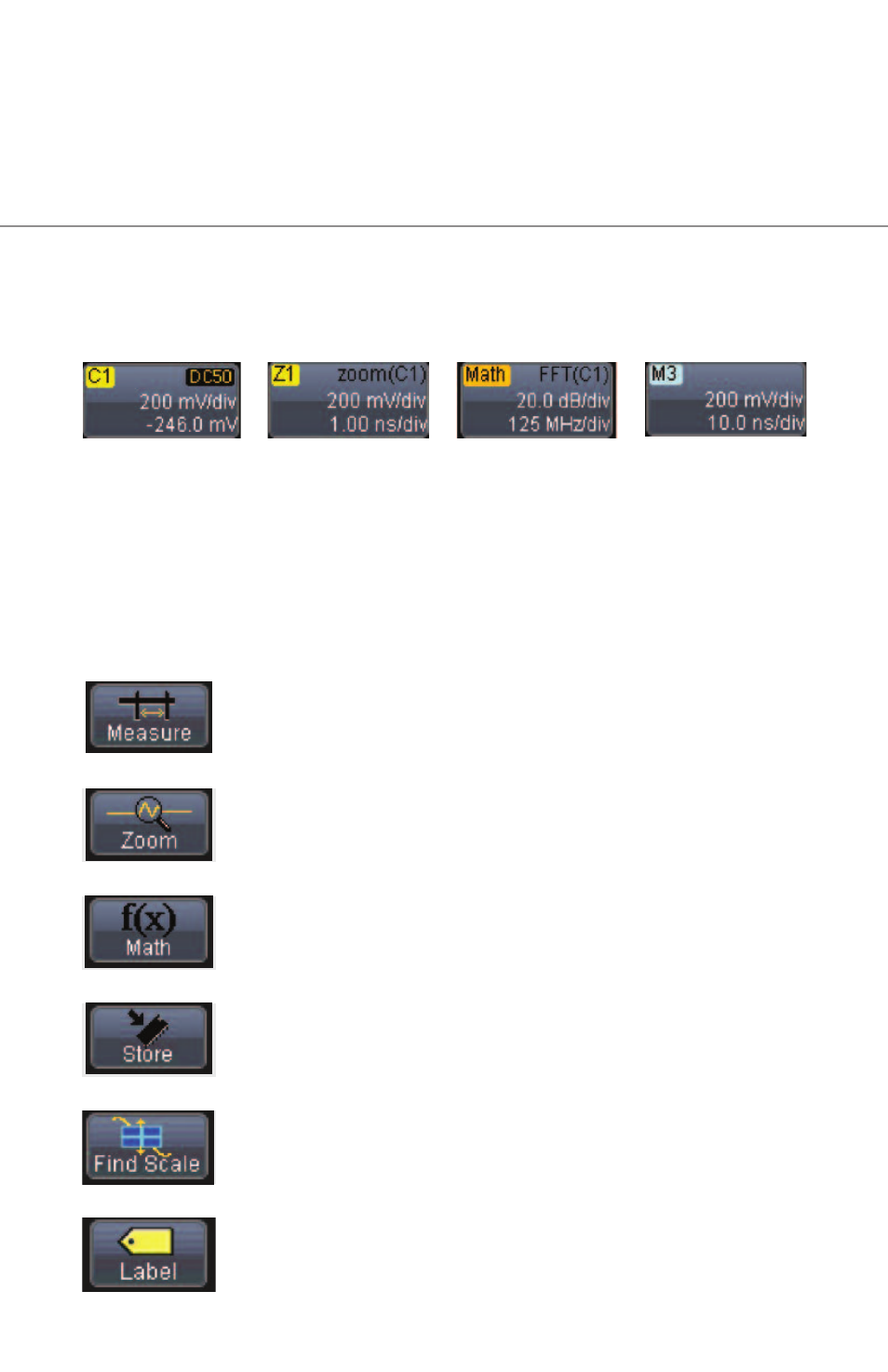

Toolbar Shortcuts to Channel, Math, and
Memory Menus
Shortcuts
Channel
Descriptor Box
Zoom
Descriptor Box
Math
Descriptor Box
Memory
Descriptor Box
