12

922557-00 Rev A

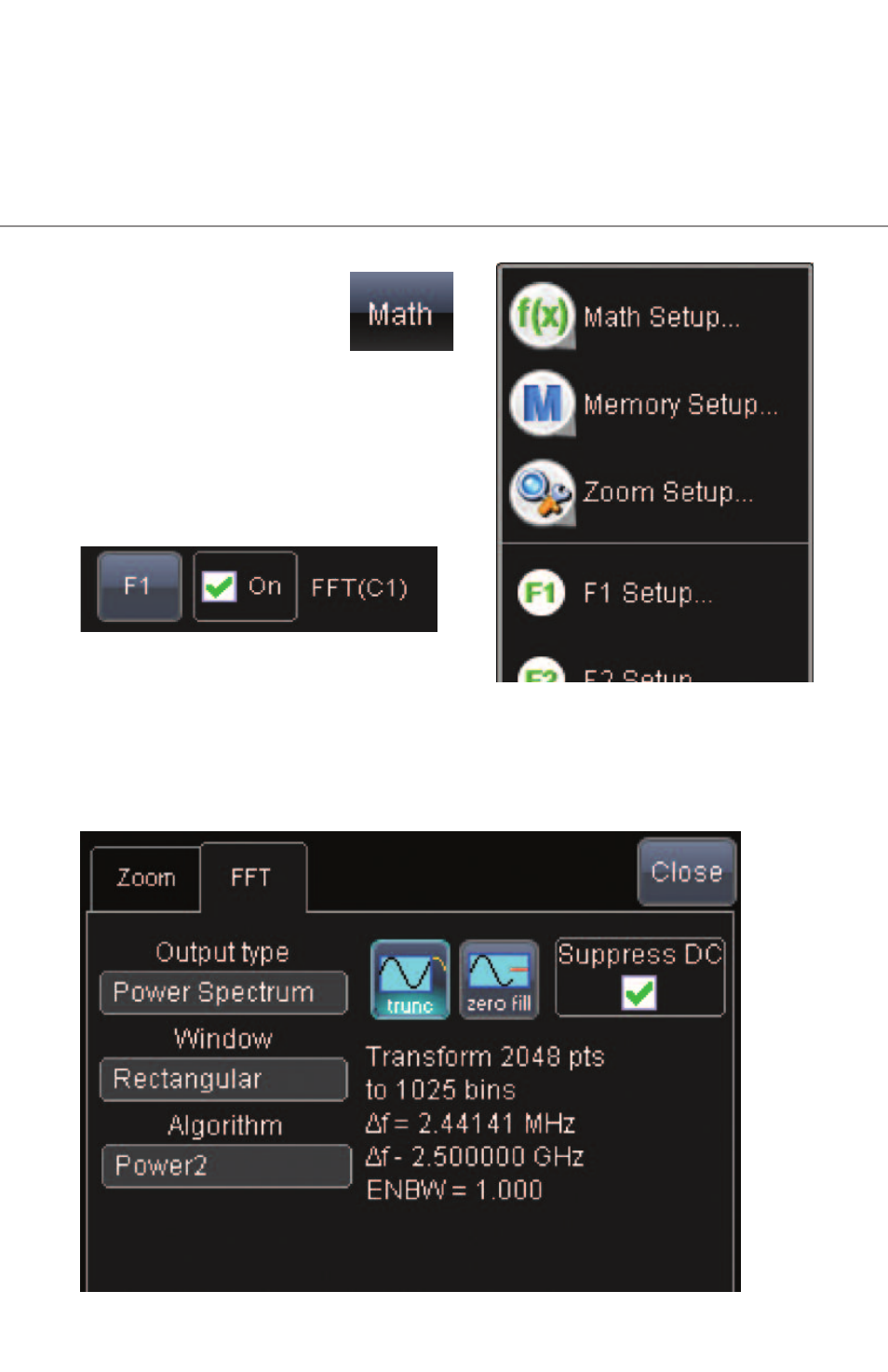

Math Setup

Touch Math in the top menu
and then touch Math Setup.

Choose Your Math Function
and Source

in the math setup

menu. Touch on a function
number (Fx) and select a math
function. Select the source in the
Fx tab, as required.

Make Setup Adjustments

using the right-hand menu. Touch the Zoom tab
and adjust zoom, or use the front panel Zoom &
Math Controls to adjust position and scale.

Setting Up Math
