13 922557-00 Rev A

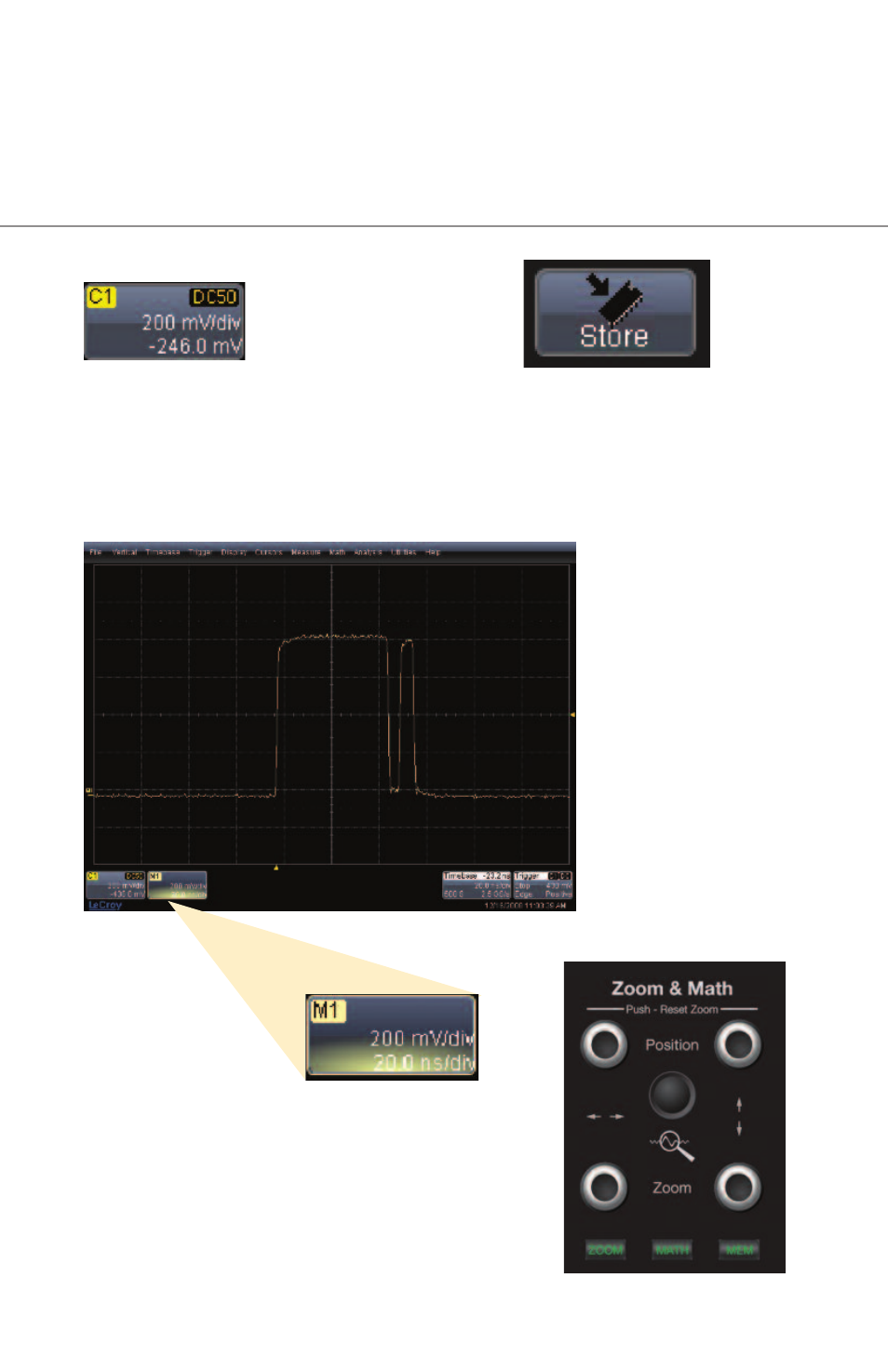

Use Zoom and Math Controls
to adjust memory scale and
position (if desired).
Touch the Store Button
in the toolbar area of the
channel setup menu.
Memory Trace Automatically Appears on the Grid.
Memory Descriptor Label
shows memory scaling.
1 2
Touch the Descriptor Label
of the trace that you want to create
a memory of (if it’s not active, you’ll
have to touch it twice).
Setting Up Memories
(Reference Waveforms)
