SIDE BARS
1997-2006 JEEP WRANGLER TJ
2004-2006 WRANGLER UNLIMITED (LJ)
Page 4 of 4 8/15/13 Rev1 (DP )

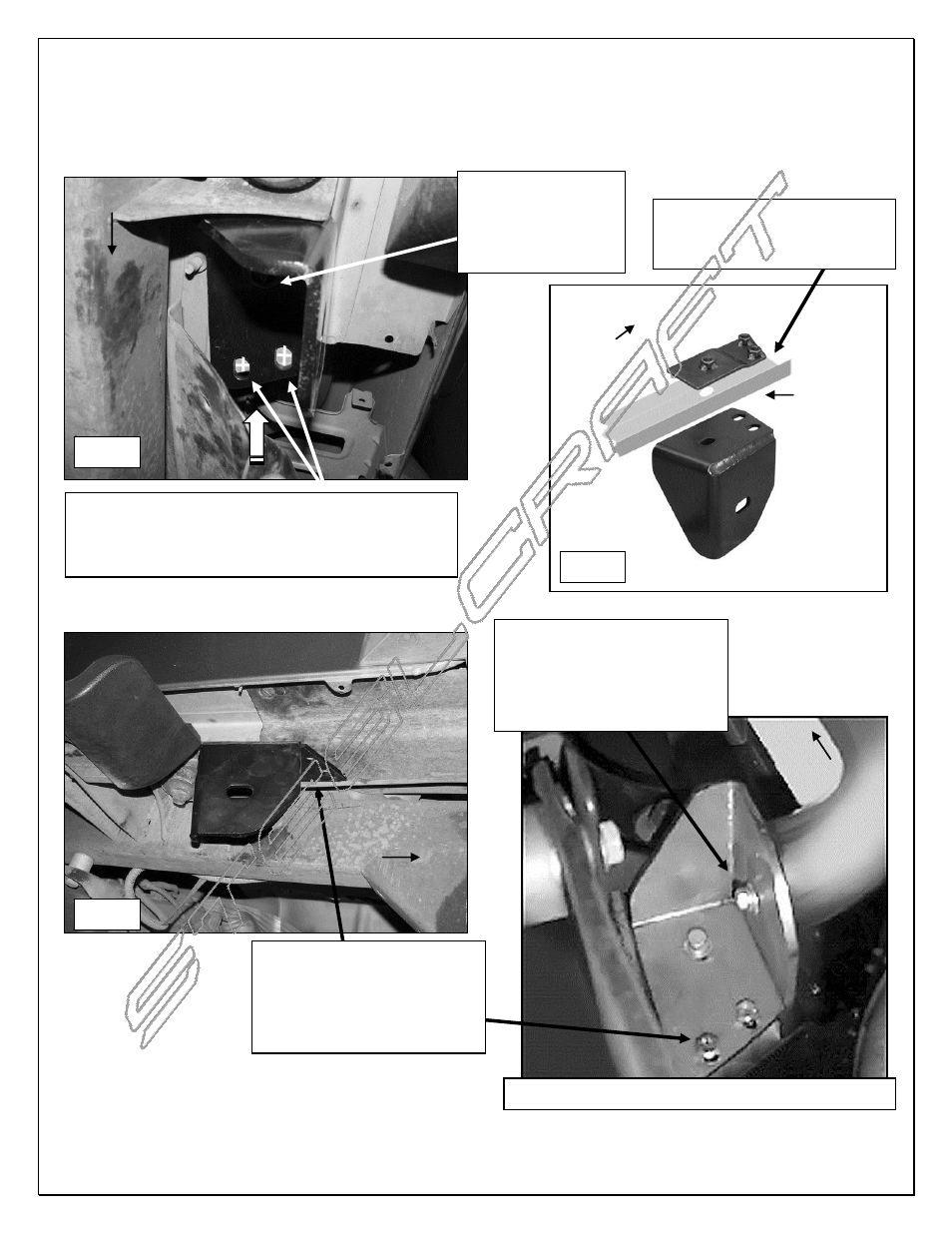

Driver Side Installation Pictured
Bolt the Bracket to
Nut Plate with:
10mm Hex Bolt
10mm Lock Washer
10mm Flat Washer
Fig 6A
Fig 6B
Do not drill until after Sidebar has been installed
and adjusted. Once Sidebar is fully installed, push
the rear Bracket forward away from edge of
channel, mark the location and drill the (2) holes
Fig7
(Fig 8) Driver side rear bracket pictured from below
Mark location first, do not drill
until after Sidebar has been
fully installed and adjusted
Once (2) holes have been
drilled, bolt the Bracket to the
Nut Plate with additional:
(2) 10mm Hex Bolts
(2) 10mm Lock Washers
(2) 10mm Flat Washers
Attach the Sidebar to the
Bracket with:
(2) 1/2" x 2" Hex Bolts
(2) 1/2" Lock Washers
(2) 1/2" Flat Washers
Rear
Rear
Rear
Front
Channel
