Steelcraft Automotive 221940 3 ROUND SIDE BAR - Manual (Page 3)

SIDE BARS
1997-2006 JEEP WRANGLER TJ
2004-2006 WRANGLER UNLIMITED (LJ)
Page 3 of 4 8/15/13 Rev1 (DP )
Driver Side Installation Pictured
Fig 2
Fig 3

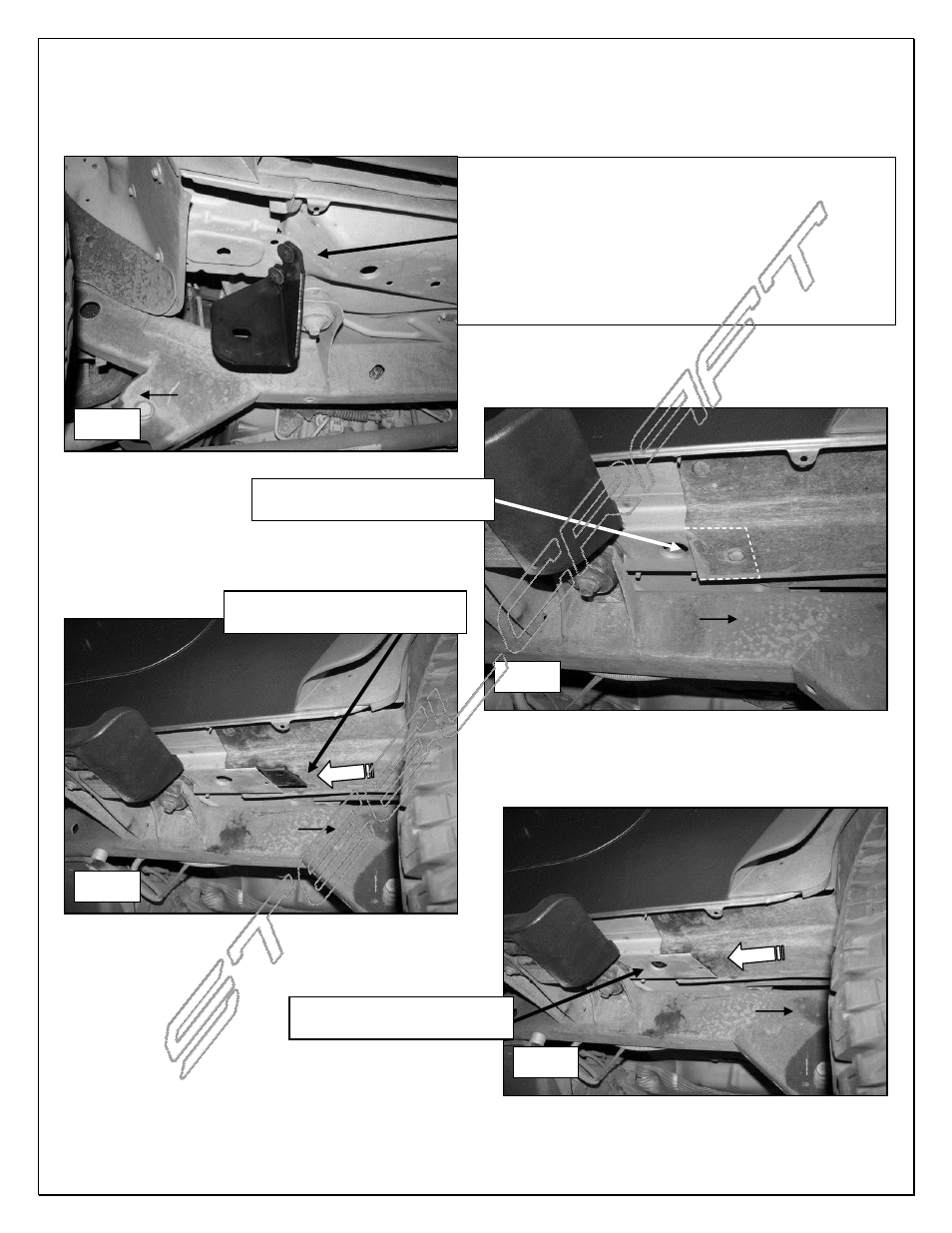

Determine correct size hardware for front bracket. Bolt
Bracket to (2) factory holes in fender support with:
(2) 8mm Hex Bolts
(2) 8mm Lock Washers
(2) 8mm Flat Washers
or
(2) 3/8" Hex Bolts
(2) 3/8" Lock Washers
(2) 3/8" Flat Washers
Fig 4
Fig 5
Cut rubber cover as indicated
for Bracket clearance
Slide driver side Nut Plate into
open end of frame channel
Line up Nut Plate with oval
hole in bottom of channel
Front
Rear
Rear
Rear
