Steelcraft Automotive 132700 RUNNING BOARD - Manual (Page 3)

VIEWPOINT ALUMINUM RUNNING BOARD
2010-12 TOYOTA HIGHLANDER
Page 3 of 4 10/18/12 (DP)
Passenger Side Installation Pictured

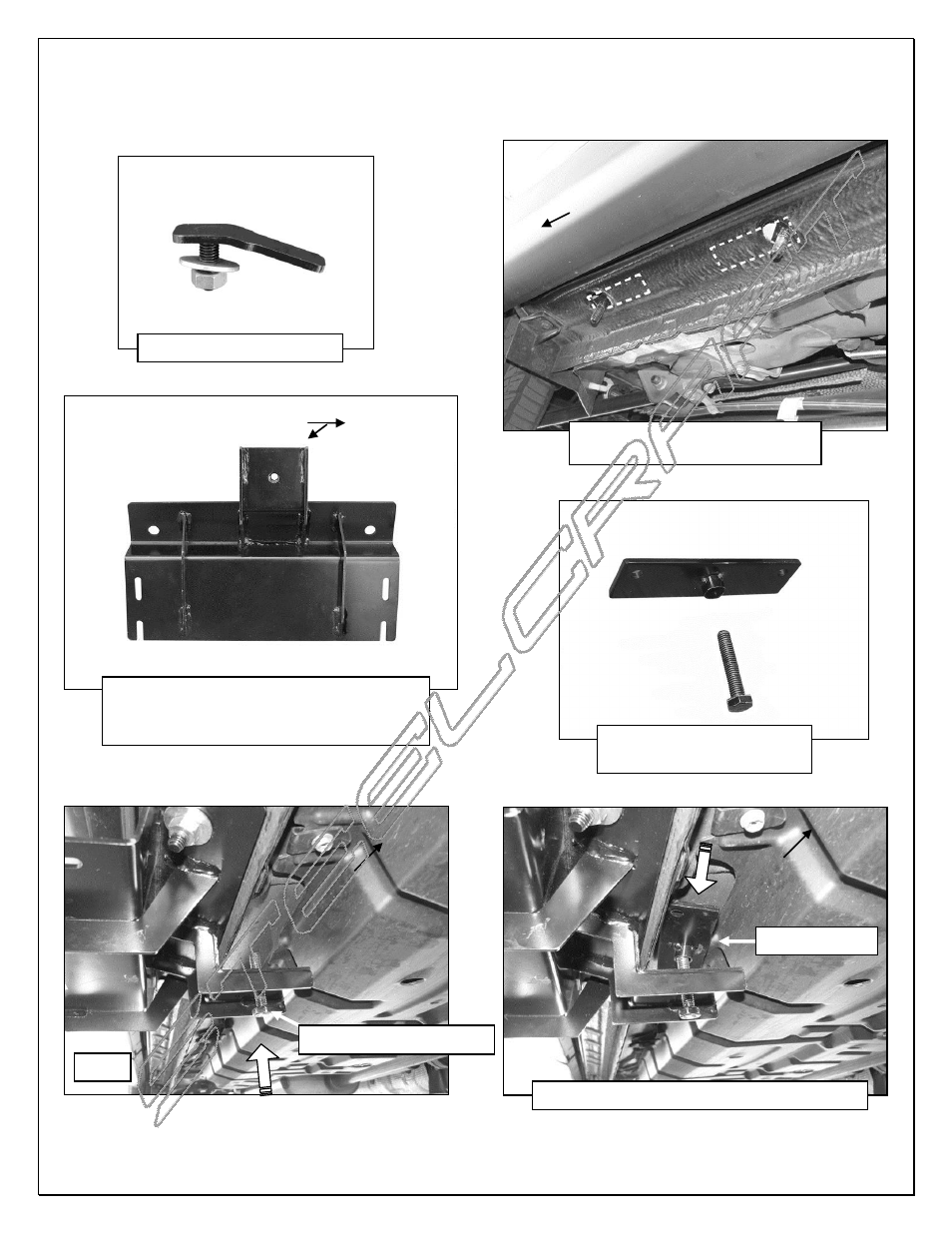

Fig 6
(Fig 5) Support Plate
w/10mm x 50mm Hex Bolt
(Fig 4) Bottom of Passenger side front
mounting bracket pictured. IMPORTANT:
Note the offset mounting tab toward rear
(Fig 3A) 10mm Bolt Plate
Rear
(Fig 3B) Dashed line represents
long end of plate on Bolt Plate
Rear Offset
(Fig 7) Front Bracket installation pictured
Front
Front
10mm x 50mm Hex Bolt
Support Plate
Front
