Steelcraft Automotive 132700 RUNNING BOARD - Manual

VIEWPOINT ALUMINUM RUNNING BOARD
2010-12 TOYOTA HIGHLANDER
Page 1 of 4 10/18/12 (DP)
PARTS LIST:
1 Driver/Left Running Board 4 10-1.5mm x 50mm Hex Bolts
1 Passenger/Right Running Board 8 10mm x 27mm OD x 3mm Flat Washers
1 Driver/Left Front Mounting Bracket 8 10mm Lock Washers
1 Passenger/Right Front Mounting Bracket 8 10mm Hex Nuts
1 Driver/Left Rear Mounting Bracket 12 6mm T-Bolts
1
Passenger/Right Rear Mounting
Bracket
12 6mm x 22mm x 2mm Flat Washers
4 140mm x 40mm x 5mm Support Plates 12 6mm Lock Washers
8 10mm x 28mm Bolt Plates 12 6mm Hex Nuts
PROCEDURE:
1. REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ
INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
2. Starting on the passenger side of the vehicle, locate and remove the 2nd and 3rd round factory
rubber plugs in the bottom of the body panel located closest to the front tire opening, (Figure
1). Select (2) Bolt Plates, (Figure 3A). Insert each Bolt Plate into the factory hole with long end
of the plates facing each other, (Figure 3B). Hold the Front Bracket over the bolt plates and
line up the (2) mounting holes, (Figure 4). Secure the bracket to the bolt plates with (2) 10mm
Flat Washers, (2) 10mm Lock Washers and (2) 10mm Hex Nuts, (Figure 5). Snug but do not
tighten hardware at this time.
3. Next, select (1) Support Plate and (1) 10mm x 50mm Hex Bolt, (Figure 5). Thread the 10mm
Hex Bolt a few threads into and through the Lock Nut welded onto the back tab on the front
Bracket, (Figure 6). Insert the Support Plate with the welded socket facing down, into the
space between the Front Bracket and the floor panel behind the pinch weld, (Figure 7).
Tighten the Hex Bolt until the Plate is close to but not touching the floor panel. Do not tighten
hardware at this time.

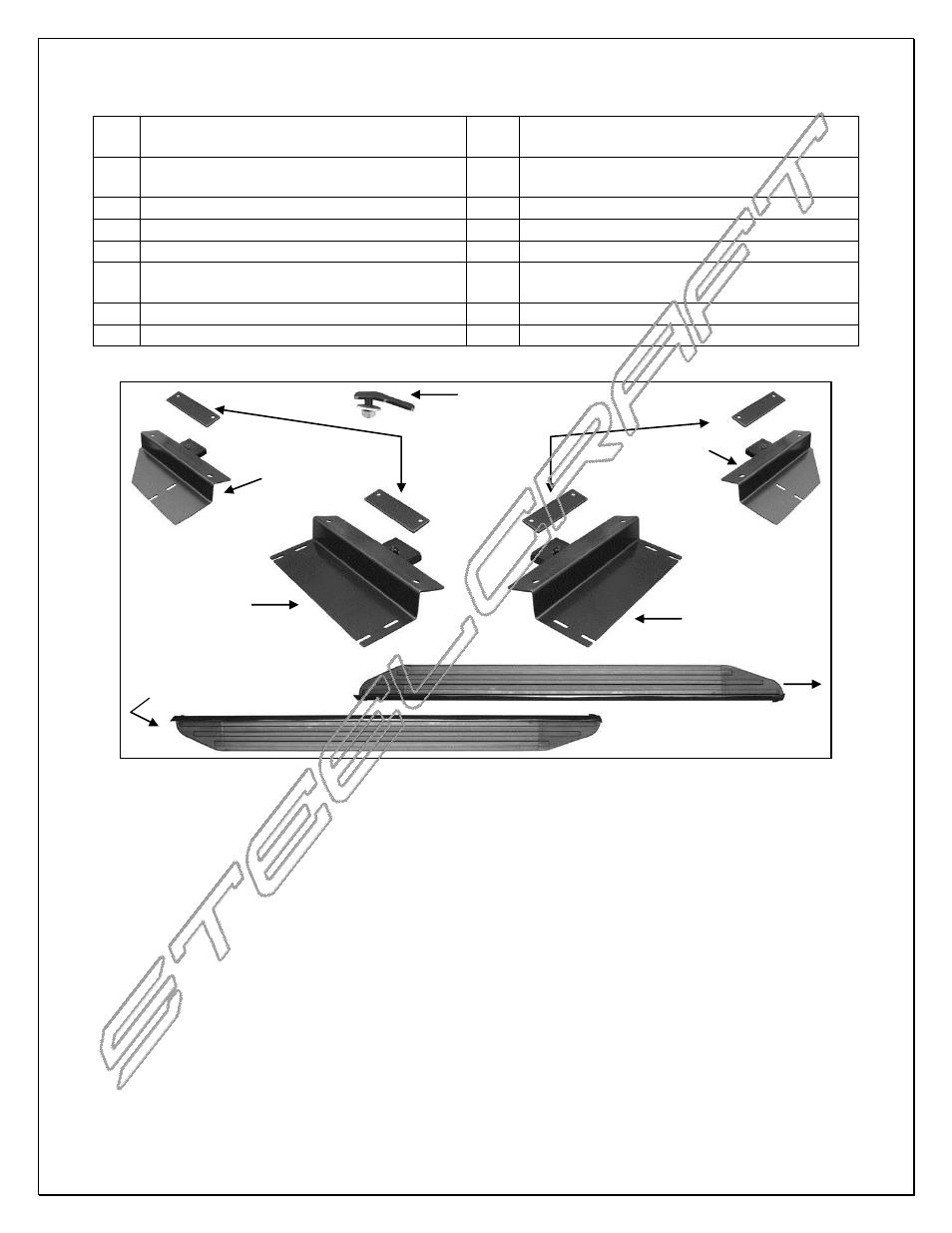

Driver/Left Rear
Mounting Bracket
Passenger/Right Side
Running Board
Driver/Left Side
Running Board
Driver/Left
Front Mounting
Bracket
FIG. 1
(2) 8mm x 30mm Hex Bolts
(2) 8mm Lock Washers
(2) 8mm Flat Washers
13mm socket required
Front
Passenger/Right
Front Mounting
Bracket
Passenger/Right Rear
Mounting Bracket
(4) Bolt Plates
(4) Support Plates
