BULL BAR
04-11 CHEVY COLORADO / GMC CANYON
(INCLUDES VEHICLES W/OFF ROAD SUSPENSION PACKAGE)
Page 4 of 4 7/28/11 REV2 (DP)
Mounting
Bracket
(2) 12mm x 30mm Hex Bolts
(4) 12mm Flat Washers
(2) 12mm Nylon Lock Nuts

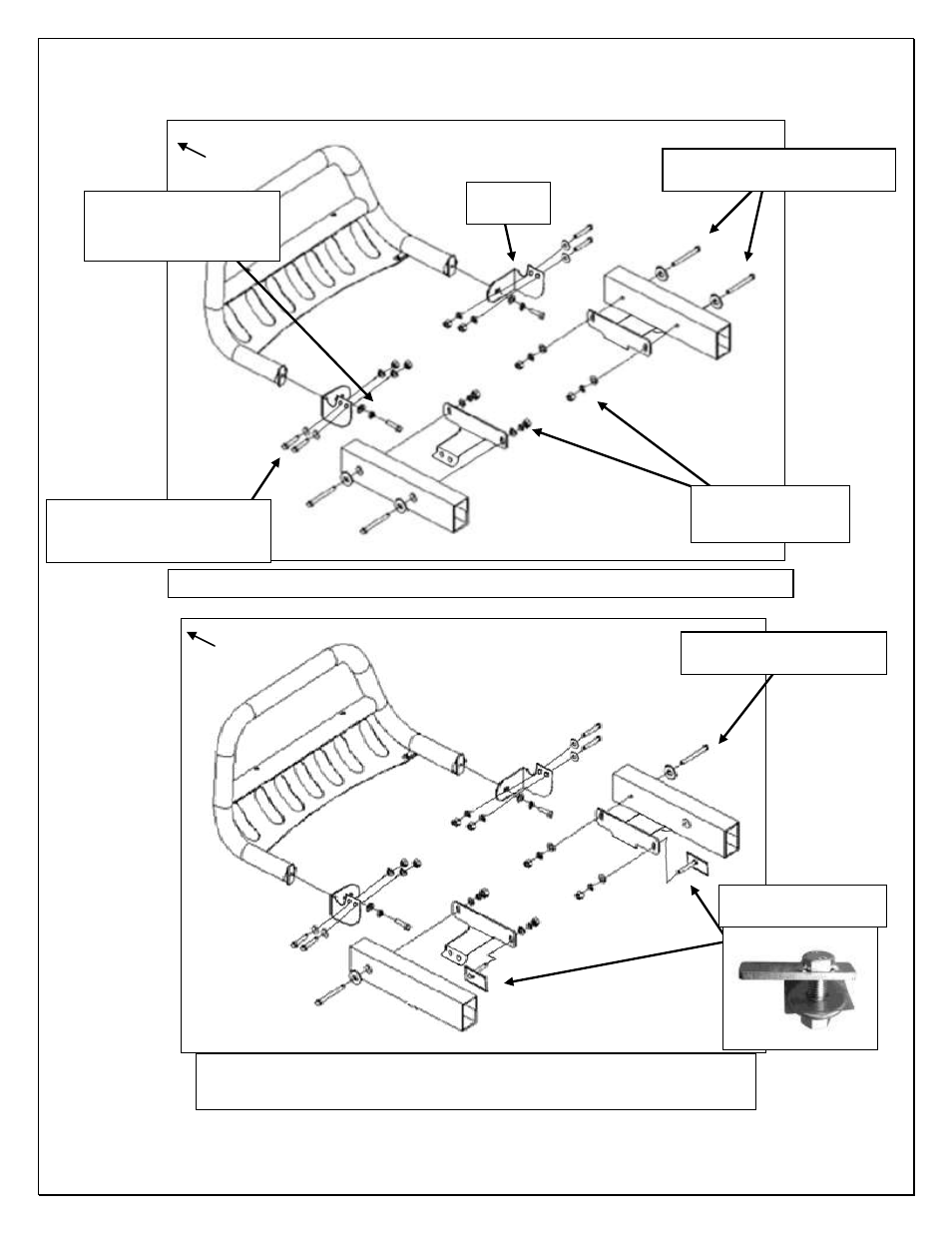

(Fig 5) 04-11 models with (2) holes completely through each frame channel
(Fig 6) 09-11 models with only (1) forward hole completely through
each frame channel and (1) on inside of frame channel only
Front
Front
(2) 12mm x 100mm Hex Bolts
(2) 12mm Spacer Washers
12mm x 50mm Hex Bolt
12mm Lock Washer
12mm Flat Washer
12mm Hex Nut
12mm Lock Washer
12mm Flat Washer
12mm x 100mm Hex Bolt
12mm Spacer Washer
(2) 12mm Bolt Plates
W/Plastic Retainers
