Steelcraft Automotive 70030 BULL BAR - Manual

BULL BAR
04-11 CHEVY COLORADO / GMC CANYON
(INCLUDES VEHICLES W/OFF ROAD SUSPENSION PACKAGE)
Page 1 of 4 7/28/11 REV2 (DP)
PARTS LIST:
1 Bull Bar 2 12-1.75mm x 50mm Hex Bolts
1 Driver/Left Frame Bracket 4 12-1.75mm x 30mm Hex Bolts
1 Passenger/Right Frame Bracket 6 12mm Lock Washers
1 Driver/Left Mounting Bracket 4 14mm x 43mm x 43mm x 5mm Large
Washers
1 Passenger/Right Mounting Bracket 6 12mm x 37mm OD x 3mm Flat Washers
2 12mm x 30mm Bolt Plates 8 12mm x 24mmOD x 2.5mm Flat Washers
2 12mm Plastic Retainers 4 12mm Hex Nuts
4 12-1.75mm x 100mm Hex Bolts 4 12mm Nylon Lock Nuts
PROCEDURE:
1. REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ
INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. CUTTING MAY BE
REQUIRED. It may be necessary to remove/relocate front license plate and license plate
bracket. It is not required, but strongly recommended. If local/state law requires a license plate,
license plate relocation kit is available.
2. Remove the plastic spoiler and splash guard-if equipped. NOTE: The lower spoiler and splash
guard will need to be trimmed to fit around the Bull Bar and Brackets after the Bull Bar has
been completely installed and properly aligned.
NOTE: Vehicles equipped with "Off Road Suspension/Z71 option." Remove factory
bolts securing frame crossbar to brackets welded onto the bottom of the frame channel.
Remove crossbar and plastic splash guard, (Figure 1).
3. Select the right/passenger Mounting Bracket and Frame Bracket.
a. 04-11 models with (2) holes completely through each frame channel: Starting from
the outside of the frame, insert (2) 12mm x 100mm Hex Bolts with (2) Large Spacer
Washers through the factory holes in the frame. Position the right/passenger side

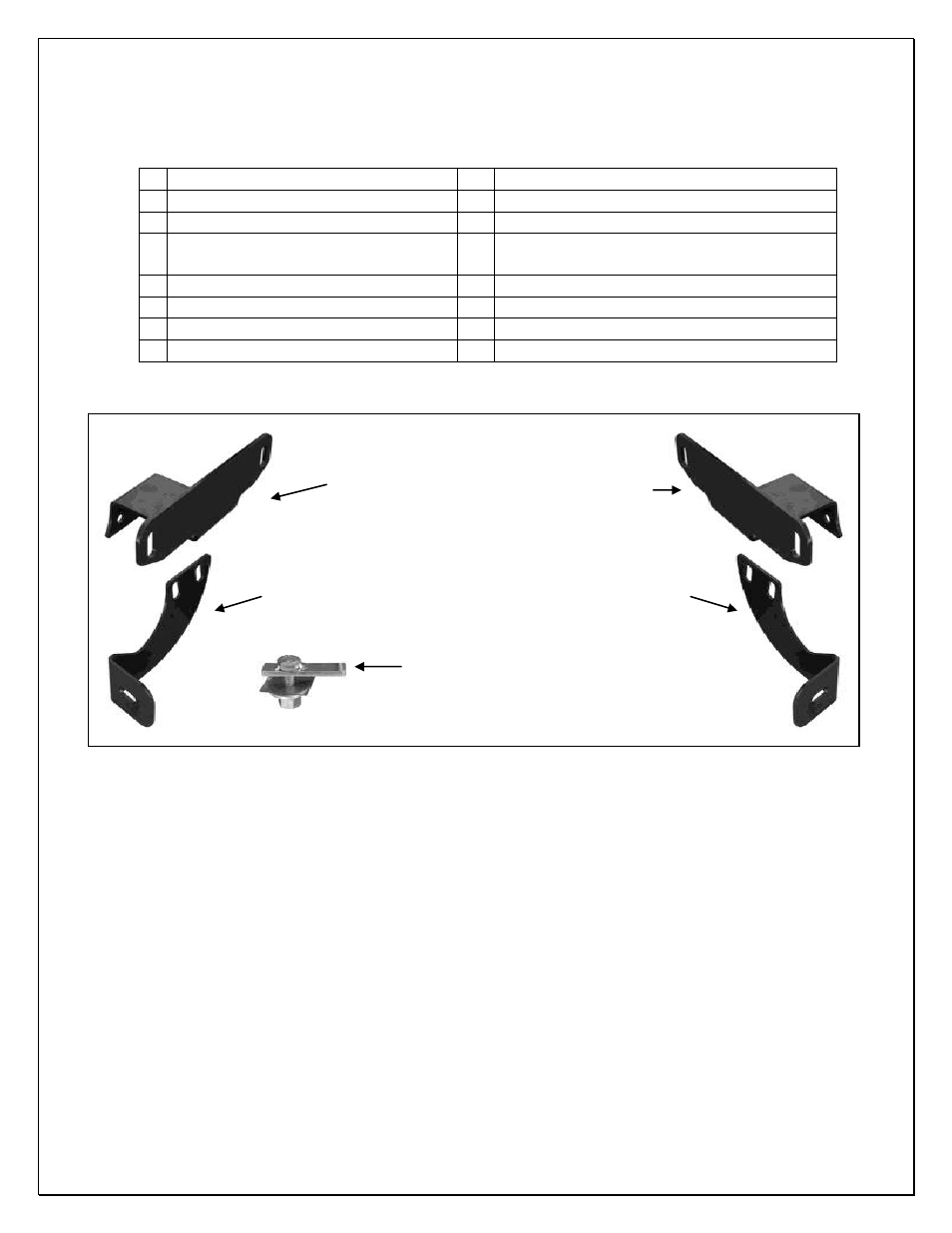

Passenger/Right Side
Frame Bracket
Passenger/Right Side
Mounting Bracket Driver/Left Side
Mounting Bracket
Driver/Left Side
Frame Bracket
12mm Bolt Plate W/Plastic
Retainer and hardware
