Steelcraft Automotive 51390 GRILL GUARD - Manual (Page 7)

GRILLE GUARD
2011 FORD EXPLORER
Page 7 of 7 6/17/11 (DP)

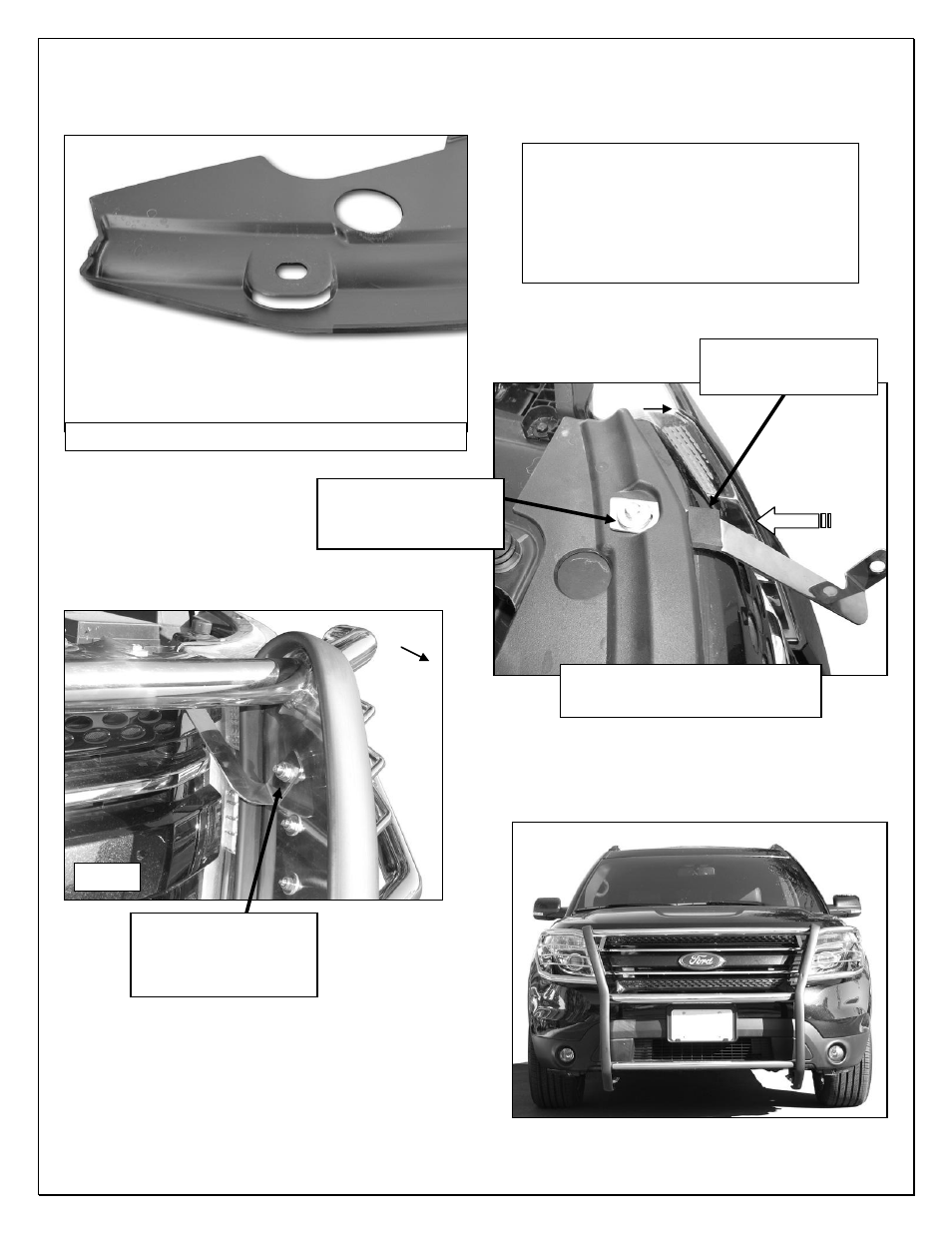

Driver Side Installation Pictured
(Fig 17) Insert Top Bracket
through opening in plastic cover
(Fig 16) Driver side-bottom of plastic cover pictured
Fig 18
Illustrations, diagrams and
measurements provided for
example only. It is the installer's
responsibility to determine exact
cuts/modifications to the vehicle
required for proper installation.
10mm x 35mm Button
Head Bolt
(2) 10mm Flat Washers
10mm Nylon Lock Nut
6mm x 35mm Hex Bolt
6mm Lock Washer
6mm Flat Washer
25mm x 20mm x 5mm
Adhesive Backed
Foam Pad
Front
Front
Complete Installation
