GRILLE GUARD
2011 FORD EXPLORER
Page 4 of 7 6/17/11 (DP)

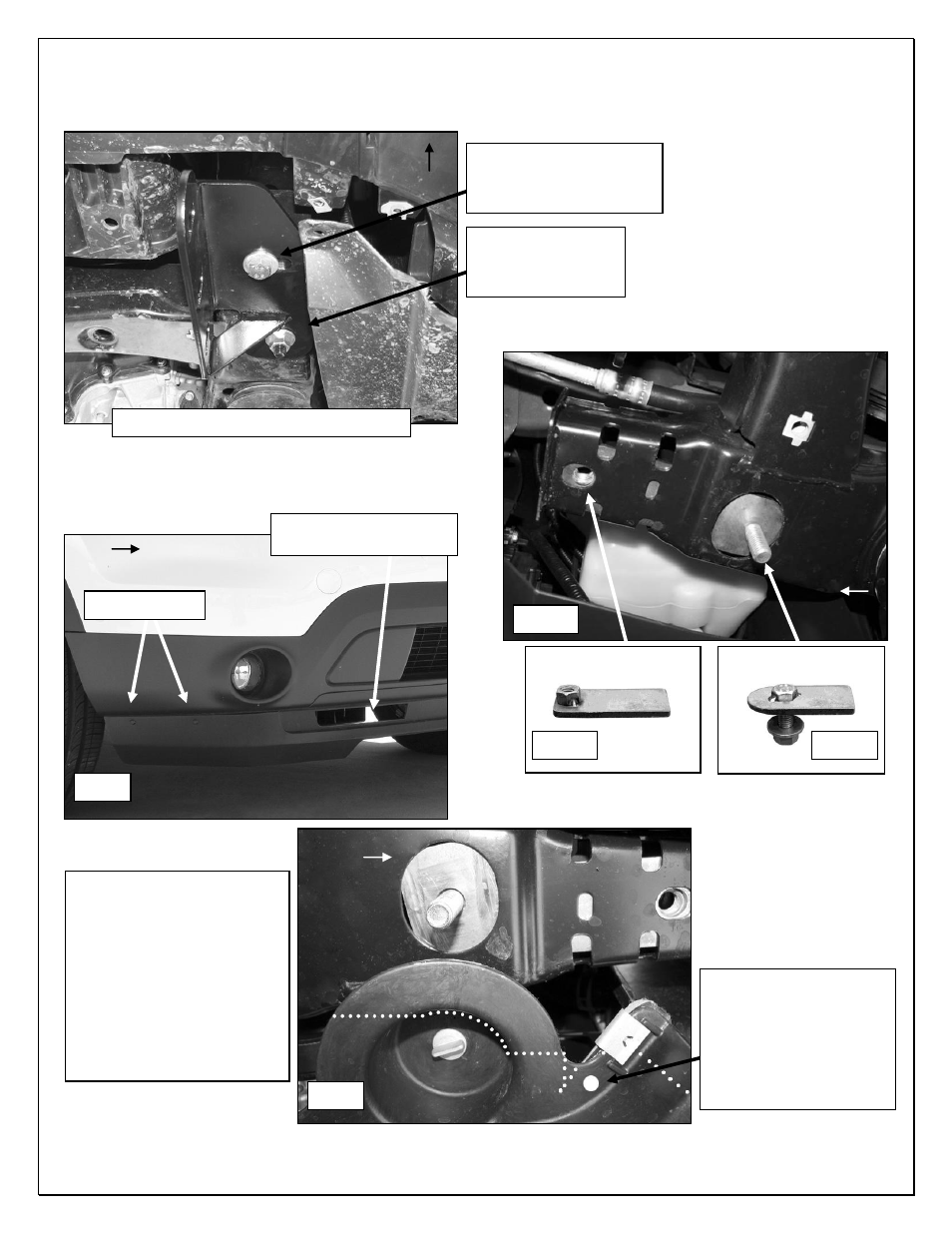

Fig 5A
Fig 6
Fig 7
Front
(Fig 4) Driver Side Installation Pictured
Passenger Side Installation Pictured
12mm x 50mm Hex Bolt
12mm Lock Washer
12mm Flat Washer
12mm Lock Washer
12mm Flat Washer
12mm Hex Nut
Fig 5B Fig 5C
Illustrations, diagrams
and measurements
provided for example
only. It is the installer's
responsibility to
determine exact
cuts/modifications to
the vehicle required for
proper installation.
Move metal clip to here
(Dot) or drill a 1/4" hole
and replace the clip with
the included:
(1) 5mm x 25mm Screw
(2) 5mm Flat Washers
(1) 5mm Nylon Lock Nut
Front
Front
Front
Factory rivets
Driver Side Installation Pictured
Air inlet for scoop
(behind bumper cover)
