4.2.3 Register Server Setting
4.2.3.1 Register Status
/VoIP Setup/Register Server/Register Status
You Can check the register status of this gateway on this page.
a. MAC: this gateway’ MAC Address。
b. RS1-4: Indicate the status of 4 server register.
SIP&H323: The protocol used for registering the server, this
gateway supports both H.323 and SIP protocol.
Green Indicator: Successful to register server and the register phone
number.
Red Indicator: Failure to register server and the failure reason.
Yellow Indicator: Disable the register function.

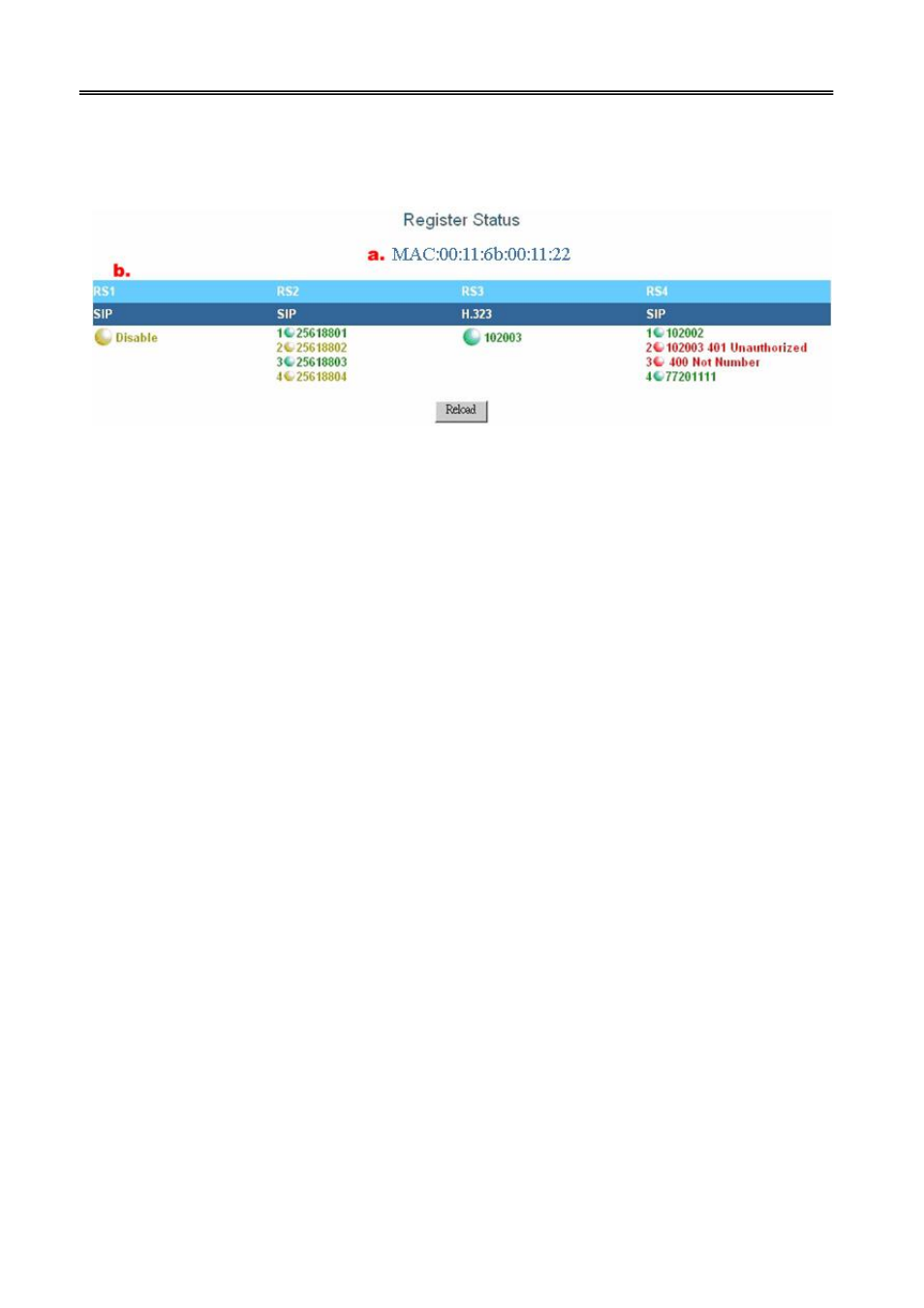

Example: for Status display as above, it indicates:
1. The register to Server #1 function is disabled (SIP).
2. Use SIP protocol to register to register as RS2, the register method is
4 lines independent. Each lines use different number to register:
25618801, 25618802, 5618803, 25618804. Line 2 and Line 4 are
disabled to register, Line 1 and Line 3 are successful to register.
3. Use H.323 protocol to register as RS3, all 4 lines share same register
102003
4. Use SIP protocol to register as RS4, each lines use different number
as 102002, 102003, 77201111. You can see that line 2 and line 3
register failures. The line 2 failure reason is “unauthorized” and Line
4 failure reason is “not number”.
Please setup each register parameters at
/VoIP Setup/Register
Status/Server#1~4/
。
