Quick reversing – LEESON FHP Series NEMA 4x Variable Speed Drive User Manual
Page 50

41
Quick Reversing
E2 (ENABLE)
E1 (COMMON)
DPDT CENTER
OFF SWITCH
FWD
STOP
REV
S1
S2
D
S3
TB501

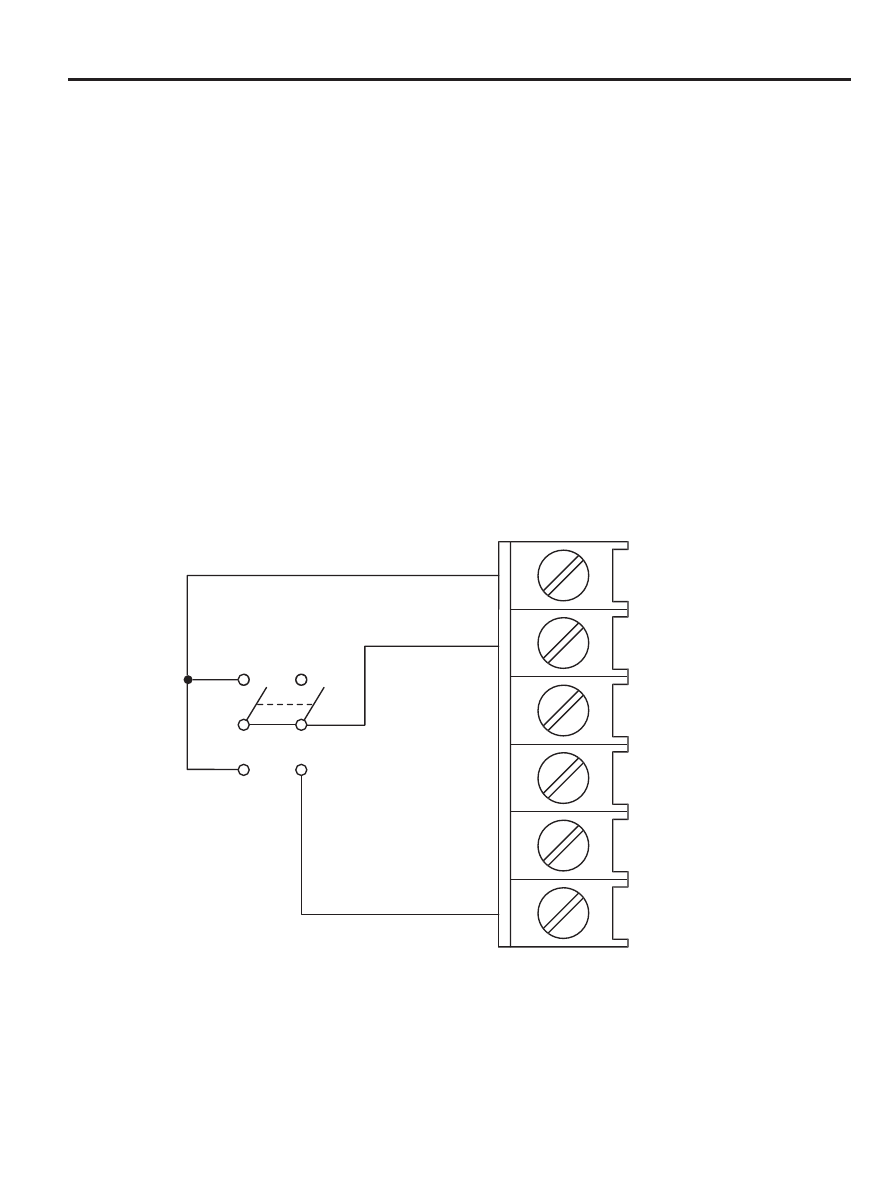

To reverse the direction of motor shaft rotation, install a
DPDT center off switch as shown in Figure 20 below. The
drive will stop the motor before reversing, so there is no
need to wait for the motor to coast to a stop before
changing direction. JMP506 must be set to brake. Refer to
Figure 4 (page 4) for Jumper Locations.
Figure 20.
FHP Series Quick Reversing
