Single speed potentiometer control of
multiple motors
S3
S2
S1
U
V
W
MOTOR
A
FHP
SERIES
DRIVE
CW
10K OHM
SPEED ADJUST
POTENTIOMETER
MOTOR
B

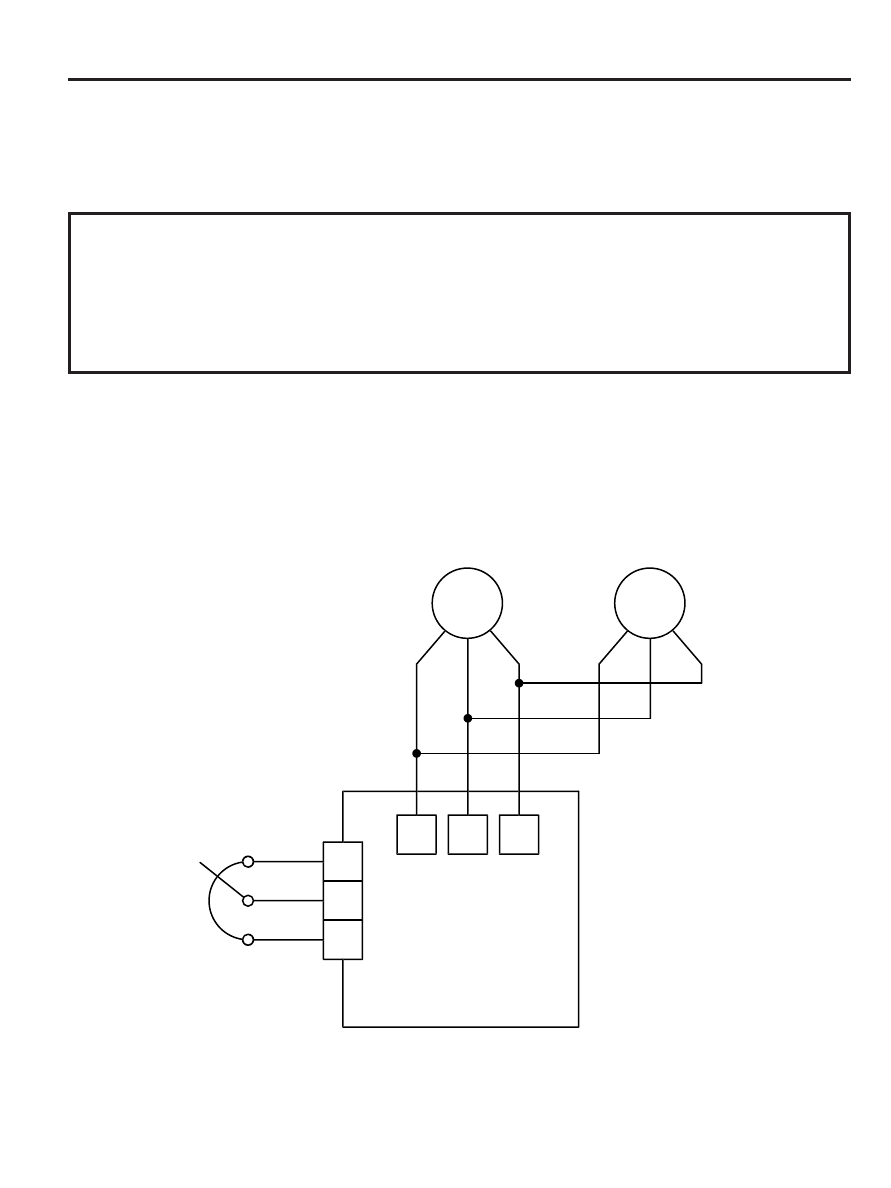

Figure 19. Single Speed Potentiometer Control of Multiple Motors
The 175326.00 is capable of operating up to eight
3-phase motors simultaneously. All motors must be of
the same type and must control similar loads. Connect
each motor as shown in Figure 19 below.
Warning
The combined current draw of all motors must not
exceed the current rating of the drive.
