ASP-MG24

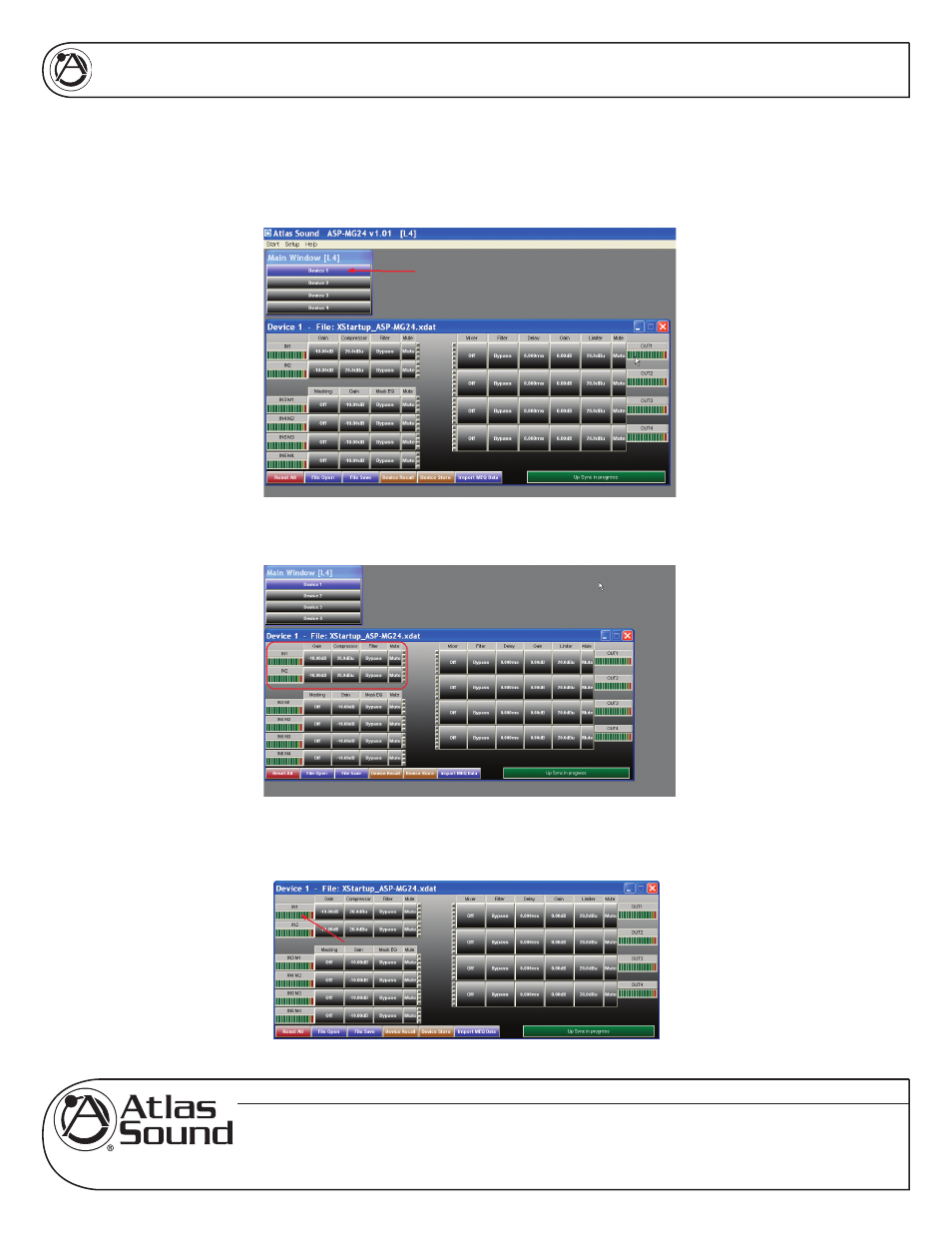

You are now ready to open the Device panel by clicking on Device 1. Note: An ASP-MG24 is also
known as a “Device”. Multiple ASP-MG24’s can be controlled via one GUI interface. If only one
ASP unit is connected to the computer click on Device 1 and the main control window will appear.
6.0 MIC / LINE INPUT SECTION
6.1 Input Meter - The bar graph meter illustrates the level of the input signal POST the channels gain control
and is PRE input filters and compressor settings.
