ASP-MG24

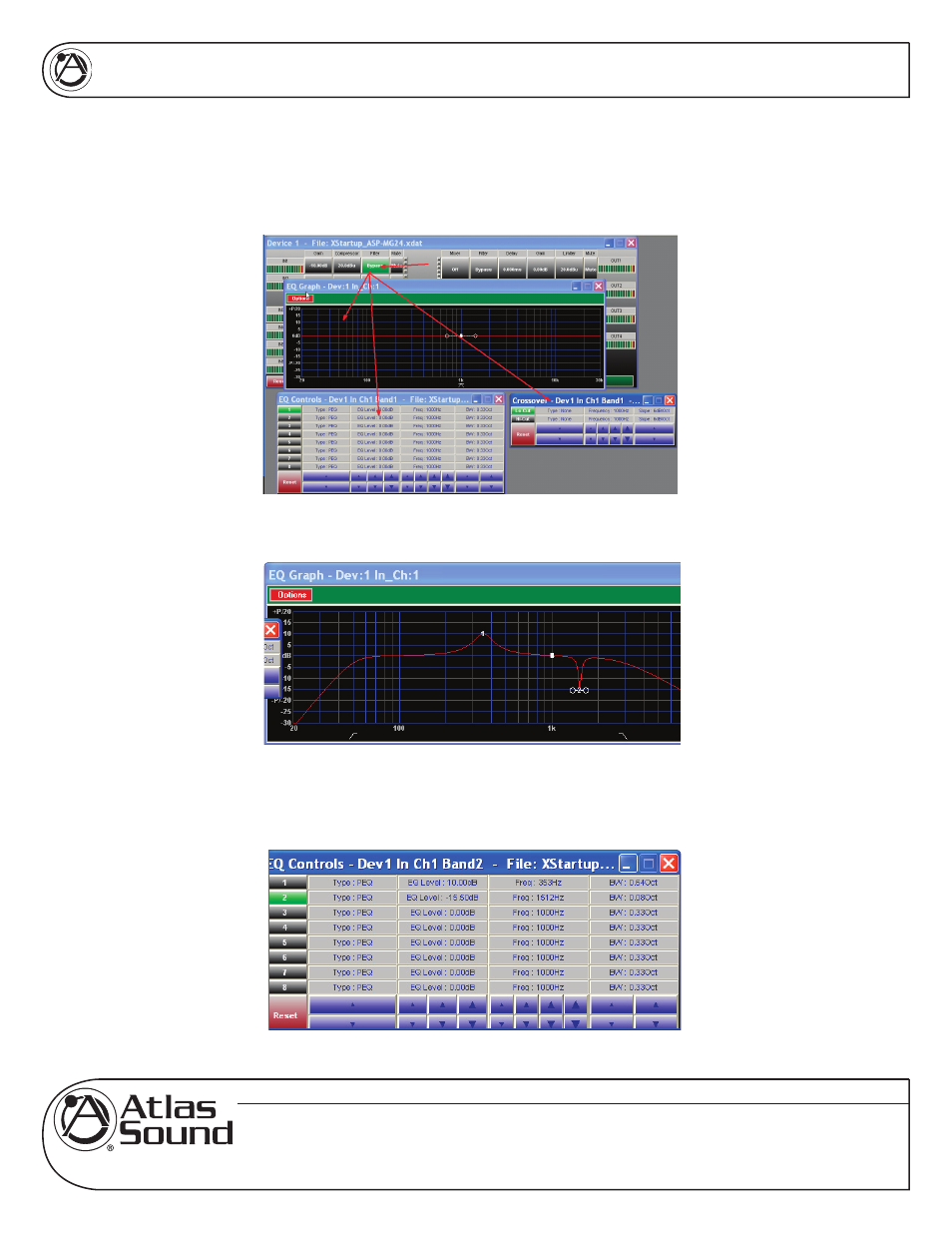

6.4 Filter - When clicking on the filter screen 3 sub viewing screens appear. Note: If the screens do not appear
you may have to change your screen resolution. Also use the screen curser Up/Down arrows to find the
three boxes. All three screens can be moved by clicking and holding the selected screen for personal viewing
preferences.
6.5 Graphic Screen – This screen will view all the all filter chacteristics that are set.
6.6 Filter Adjust Window – Each input has 8 adjustable filter selections. Choices are Parametric, Hi-shelf and
Lo-shelf. Adjustments can be made via the up / down arrows, text window and by dragging the curser on the
Graphics Screen. After any adjustment made they should appear on the Graphic Screen.
