ASP-MG24

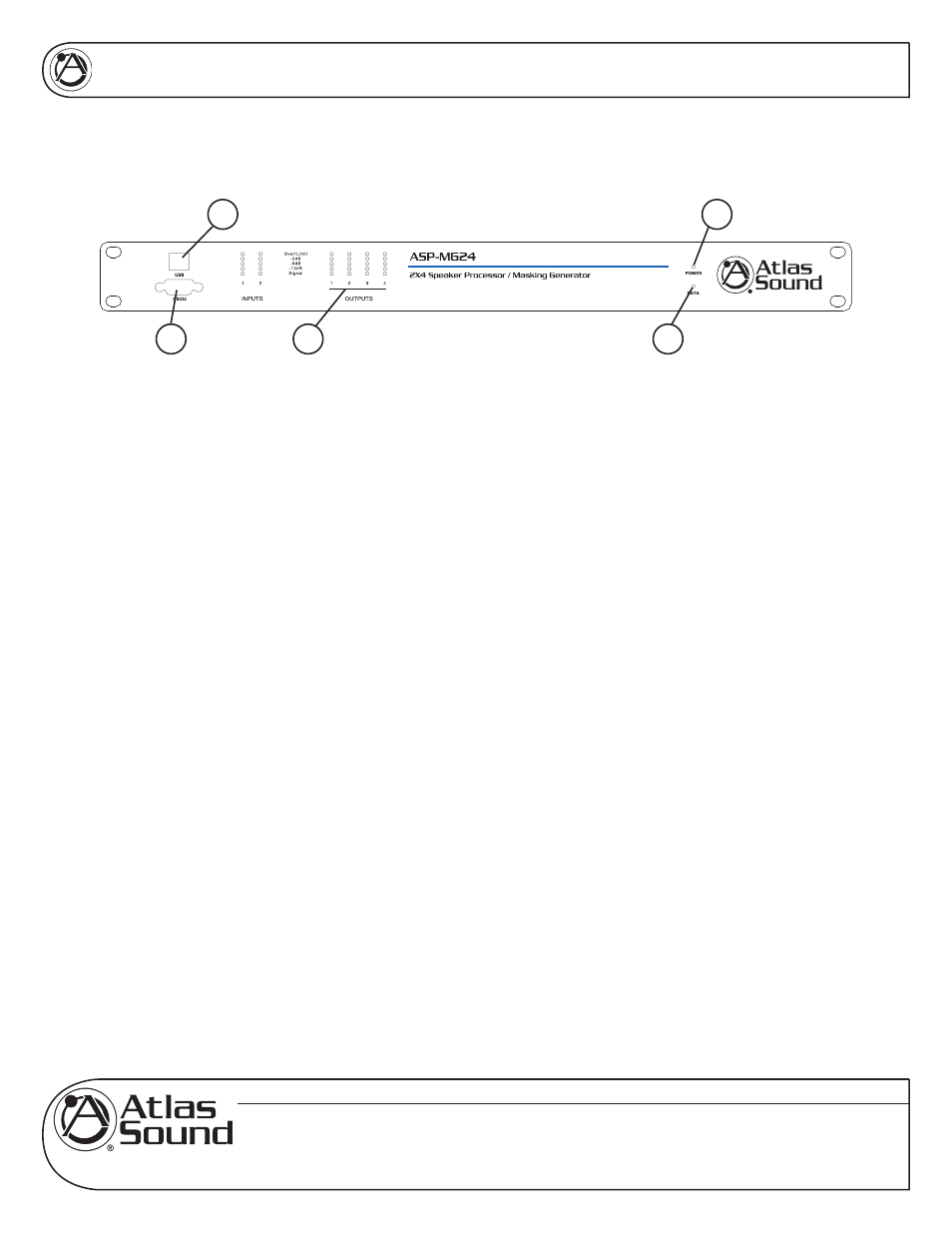

3.0 FRONT PANEL FEATURES
1. Power On LED
Illuminates Blue when the external power supply is plugged into the power socket and the power
supply is plugged into a AC source..
2. Level LED
5 LED’s per channel indicates the status of the signal level: Signal, -12dB, -6dB, -3dB, Over/Limit.
The Input “Over” LED references to the device’s maximum headroom. The Output “Limit” LED
references to the threshold of the limiter.
3. RS232 Connector
Standard female DB9 socket. A straight through cable is required for PC connection.
4. USB Connector
Standard female USB socket. A straight through cable is required for PC connection
5. Data LED
This LED will illuminate Green when there is connection made between the ASP-MG24 and the
computer.
1 4
3 2 5
