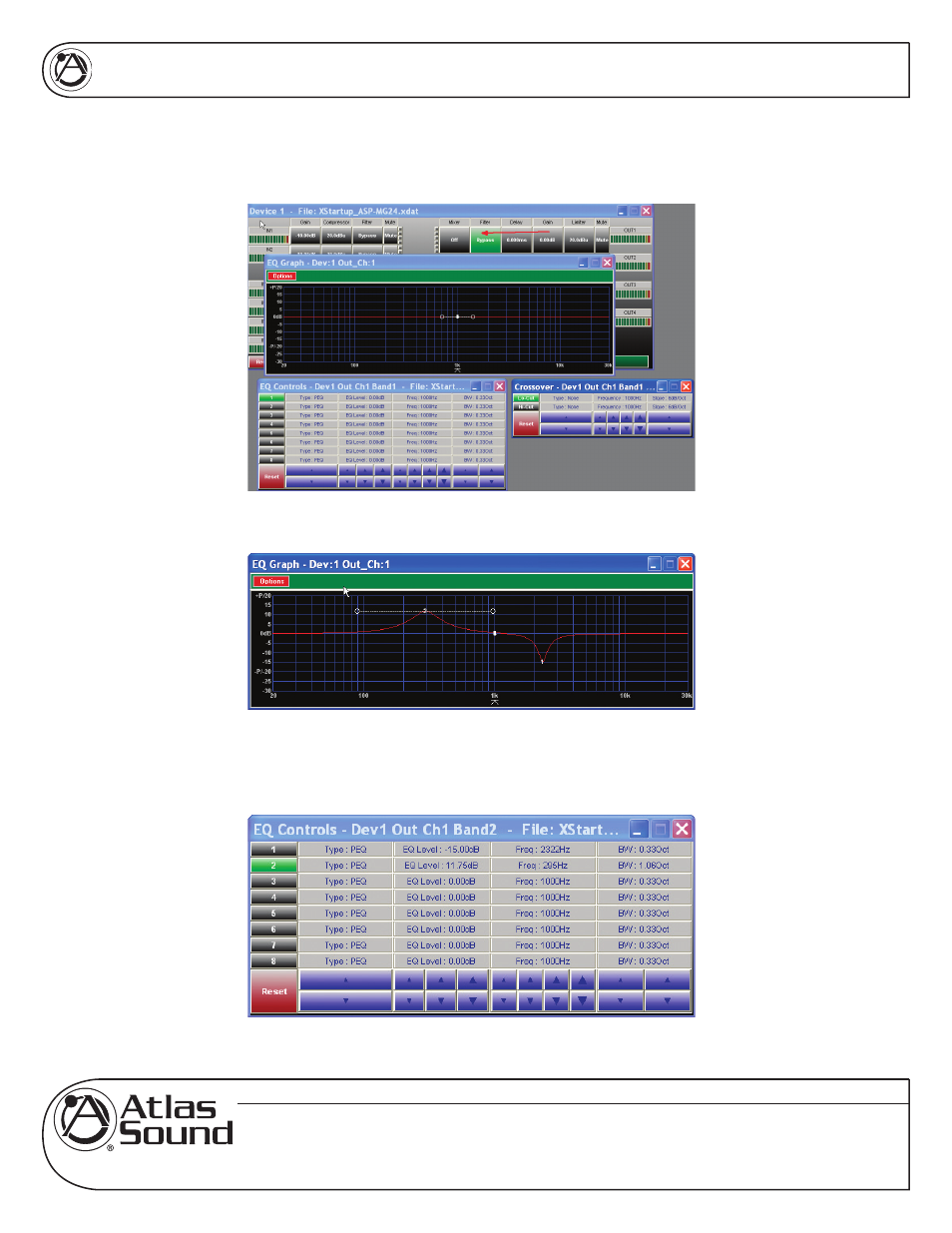

8.2 Filter - When clicking on the filter screen 3 sub viewing screens appear. Note: All three screens can be
moved for personal viewing preferences.
8.3 Graphic Screen – This screen will view all the all filter characteristics that are set.
8.4 Filter Window – Each input has 8 adjustable filter selections. Choices are Parametric, Hi-shelf and Lo-
shelf. Adjustments can be made via the up / down arrows, text window and by dragging the curser on the
Graphics Screen. After any adjustment made they should appear on the Graphic Screen.
