ASP-MG24

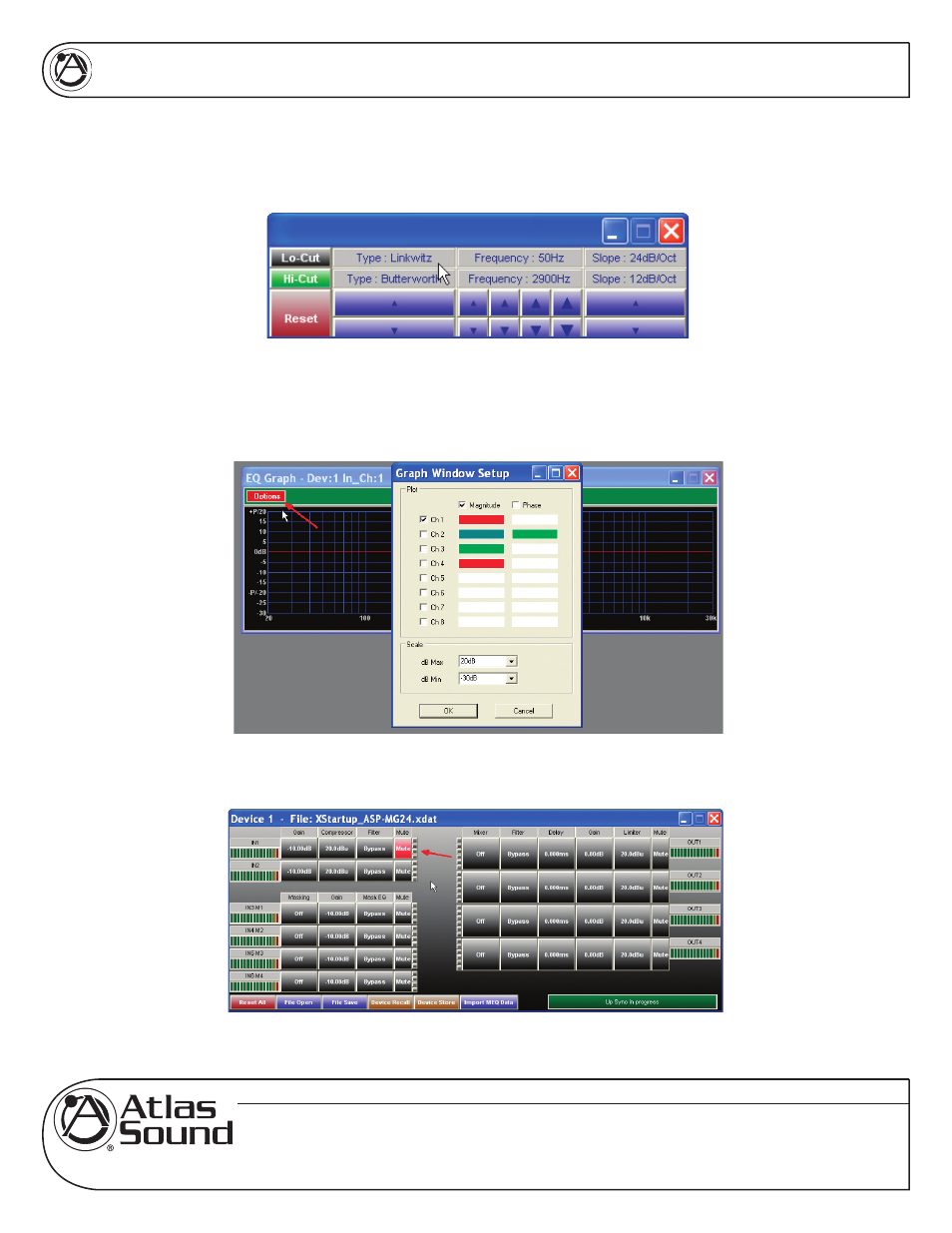

6.7 Crossover Window – The Crossover Window allows the adjustment of Filter type, Frequency, and slope.
The Reset button will set all filters back to factory settings. This Reset button only effects this screen settings.
6.8 Graph Sub Screen Window – Advance Viewing Feature - In the top right corner of the window there is
option button. This window allows you to view multiple channels of filters. Re set the viewing scale. The Reset
button will set all filters back to factory settings. This Reset button only effects this screen settings
6.9 Mute – This button when depressed turns Red and mutes the signal at the input of the channel.
