ASP-MG24

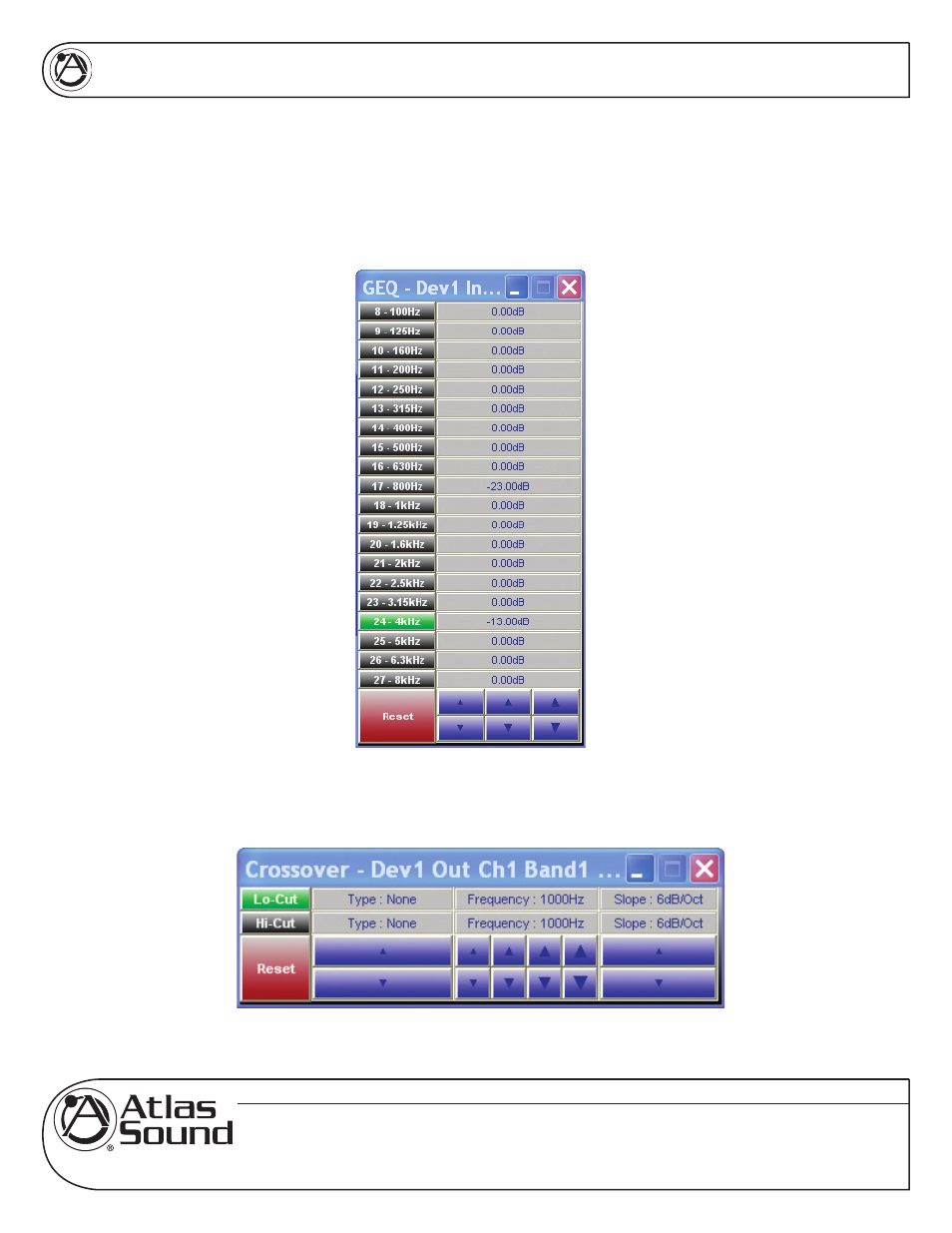

7.8 1/3 rd Octave Graphic Screen – This screen corresponds with the Graph screen. There are 20 filters that
appear in this window. That is because the masking operating range is from 100Hz to 8KHz..Adjustments to
the filters can be made dragging the filter number on the screen or by typing the number into the window or by
using the UP / Down arrows. The Reset button will set all filters back to factory settings. This Reset button only
effects this screen settings.
7.9 Crossover Window – The Crossover Window allows the adjustment of Filter type, Frequency, and slope.
The Reset button will set all filters back to factory settings. This Reset button only effects this screen settings
