2.2 Basic Configuration of 20x HD-SDI Speed Dome Camera System

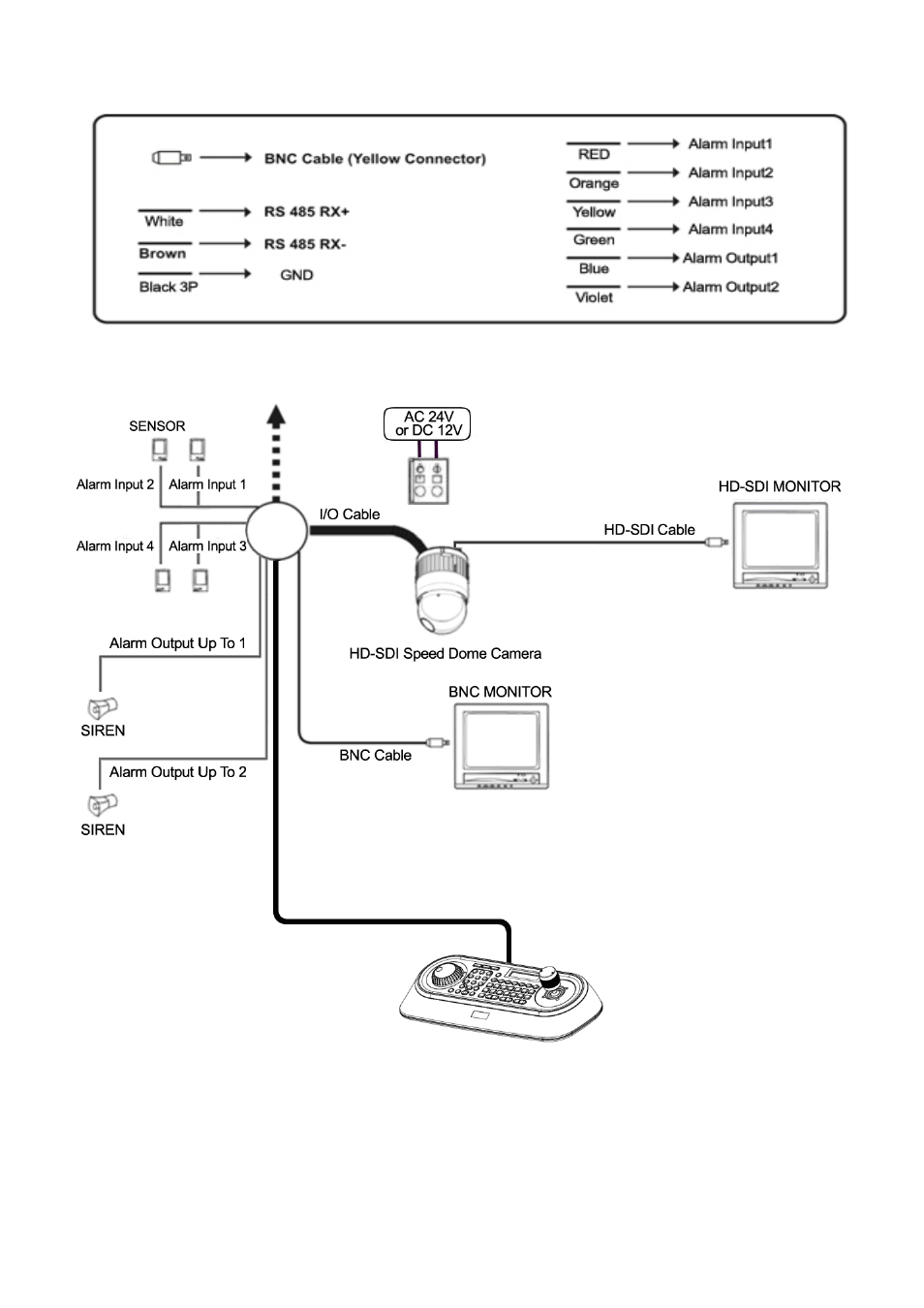

Figure 5 – Basic installation diagram
The HD-SDI Speed dome camera must be installed by qualified service personnel in accordance with all
local and federal electrical and building codes. The system should be installed according to Figures 5
through 9.
