Instruction Manual SG4-B Series
5

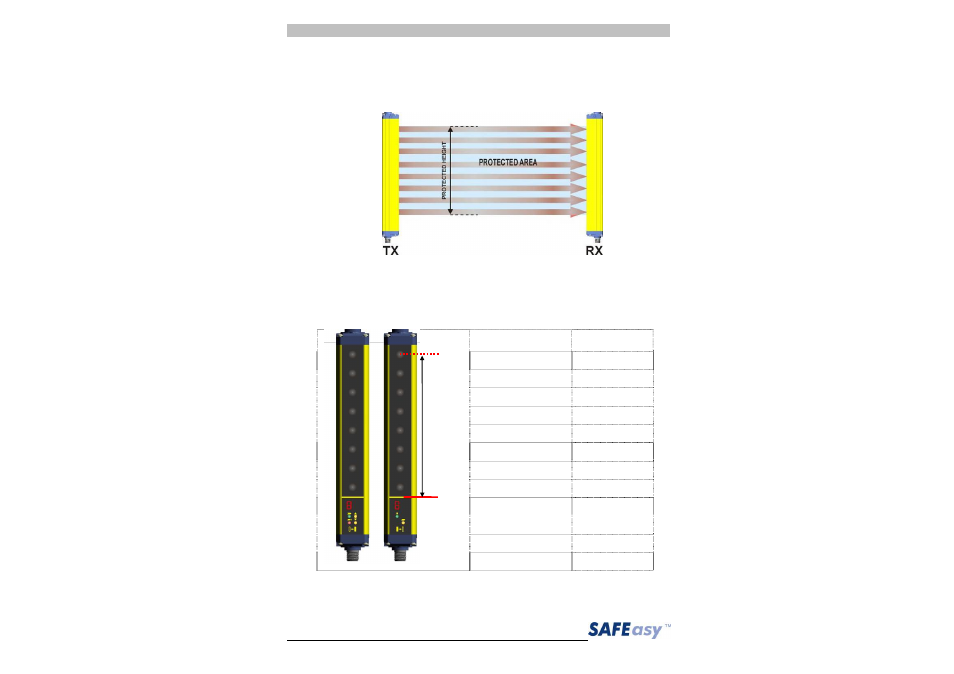

1.3.2. Controlled height
The controlled height is the height protected by the safety light
curtain (Hp)
Fig. 2
The SG4-B controlled height is delimited by the yellow line pad-
printed on the front glass and by the dimensions listed in the table:
Model
Controlled
height Hp (mm)
SG4-xx-015-OO-E 150
SG4-xx-030-OO-E 300
SG4-xx-045-OO-E 450
SG4-xx-060-OO-E 600
SG4-xx-075-OO-E 750
SG4-xx-090-OO-E 900
SG4-xx-105-OO-E 1050
SG4-xx-120-OO-E 1200
SG4-xx-135-OO-E 1350
SG4-xx-150-OO-E 1500
SG4-xx-165-OO-E 1650
SG4-xx-180-OO-E 1800
xx = Resolution (14 mm – 30 mm)
Hp
Reference
