IDEC SG4 Type 4 Finger & Hand User Manual
Page 29
Instruction
Manual
SG4-B
Series
25

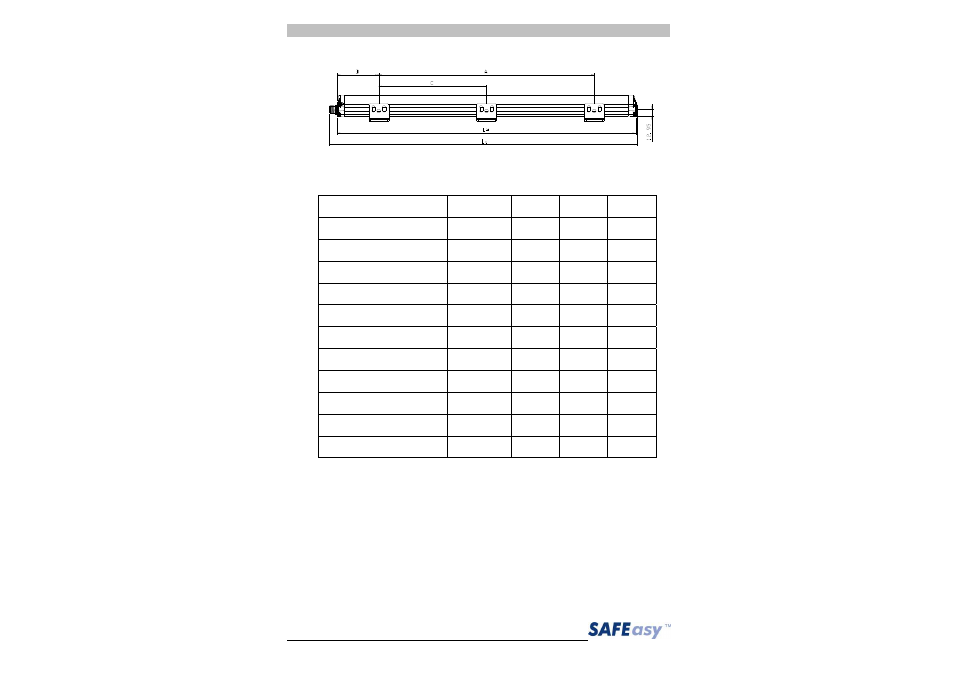

MODEL
L (mm)
A (mm)
B (mm)
C (mm)
SG4-xx-015-OO-E 216.3
108
54
-
SG4-xx-030-OO-E 366.2
216
75
-
SG4-xx-045-OO-E 516.3
316
100
-
SG4-xx-060-OO-E 666.2
366
150
-
SG4-xx-075-OO-E 816.3
466
175
-
SG4-xx-090-OO-E 966.2
566
200
-
SG4-xx-105-OO-E 1116.2
666
225
-
SG4-xx-120-OO-E 1266.3
966
150
483
SG4-xx-135-OO-E 1416.2
1066
175
533
SG4-xx-150-OO-E 1566.3
1166
200
583
SG4-xx-165-OO-E 1716.3
1266
225
633
SG4-xx-180-OO-E 1866.3
1366
250
683
xx = Resolution (14 mm – 30 mm)
