59
13) Unscrew the Nuts (X) remove the Screws (V) and the Springs (W) from the Rope Guide Ring Halves
(P and Q), then remove the Ring Halve (Q) (see Figure 6-19).
14) Loosen the Screws (A1) of the Wire Rope Clamps (B1) and take out the Wire Rope and Ring Half (P)
(see Figure 6-20). For 4/1 Ultra-Low headroom versions it is necessary to rotate the Ring Half (P) over
the top of the drum to remove it from the hoist (see Figure 6-21).

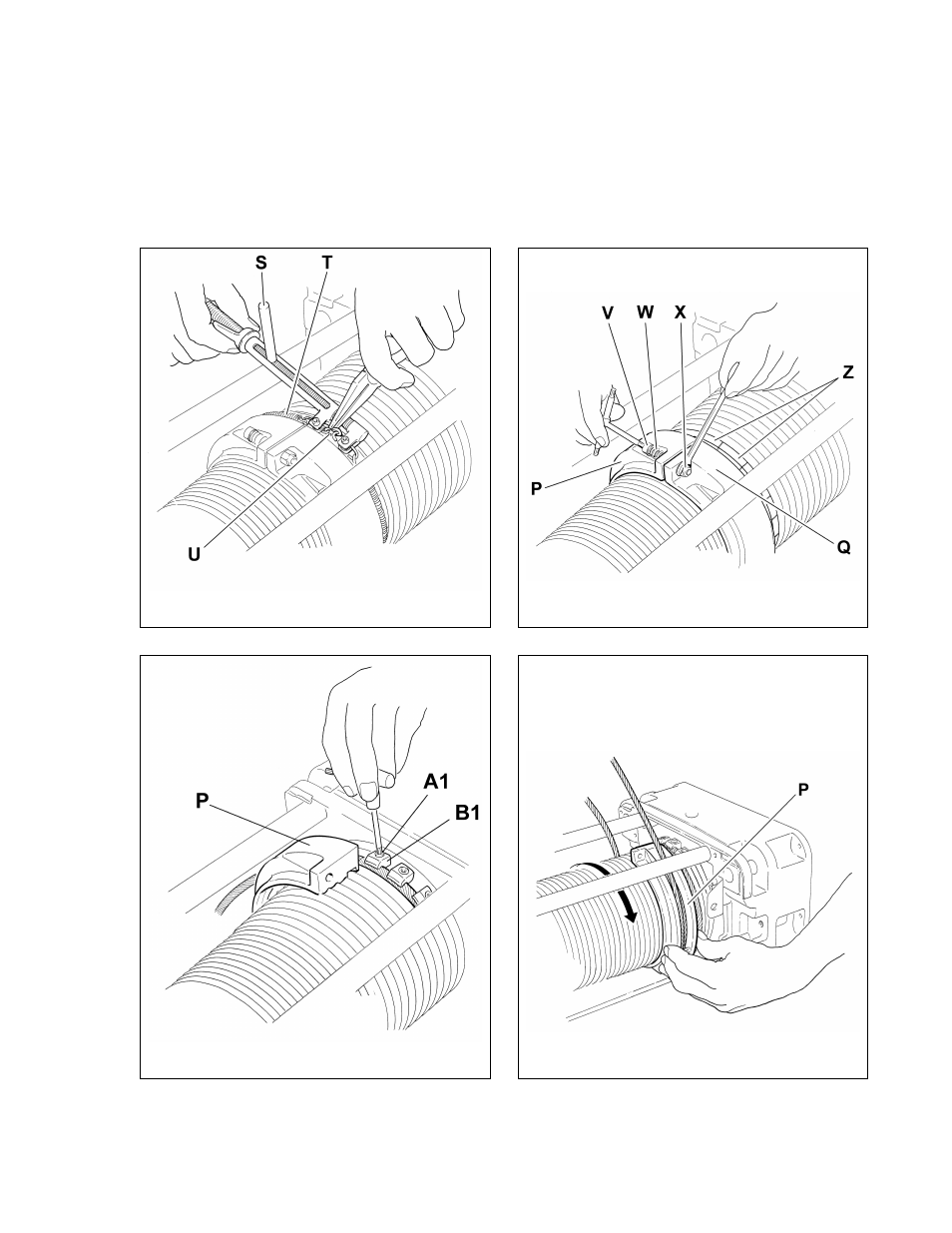

Figure 6-18 Figure 6-19
Figure 6-20 Figure 6-21
