46
10) Insert the Wire Rope Clamp Runners (Z) piece by piece, into the slot on the side of the Rope Guide
Ring (P) (see Figure 6-26 ).
11) Reinstall the Limit Switch Actuators (N) onto the Rope Guide Ring Halves (P) and (Q) and tighten the
Screws (R) (see Figure 6-27 ).
12) Reposition the Wire Clamping Spring (T) on the Runners (Z). Use the Wire Rope Guide Clamping Tool
(S), to pull the Spring taut. Couple the ends of the Clip (U) onto the Spring using the pliers (see Figure
6-28 ).
13) Complete Reassembly:
Reinstall the Limit Switch Assembly (C1) and tighten the Screws (D1). Do not disconnect or change
the setting of the Limit Switches (see
Figure 6-29 ). Reinstall the Dust Cover Halves (K) and tighten the
four (4) Screws (J) (see Figure 6-30 ). Note: Dust cover is an option and may not be present.

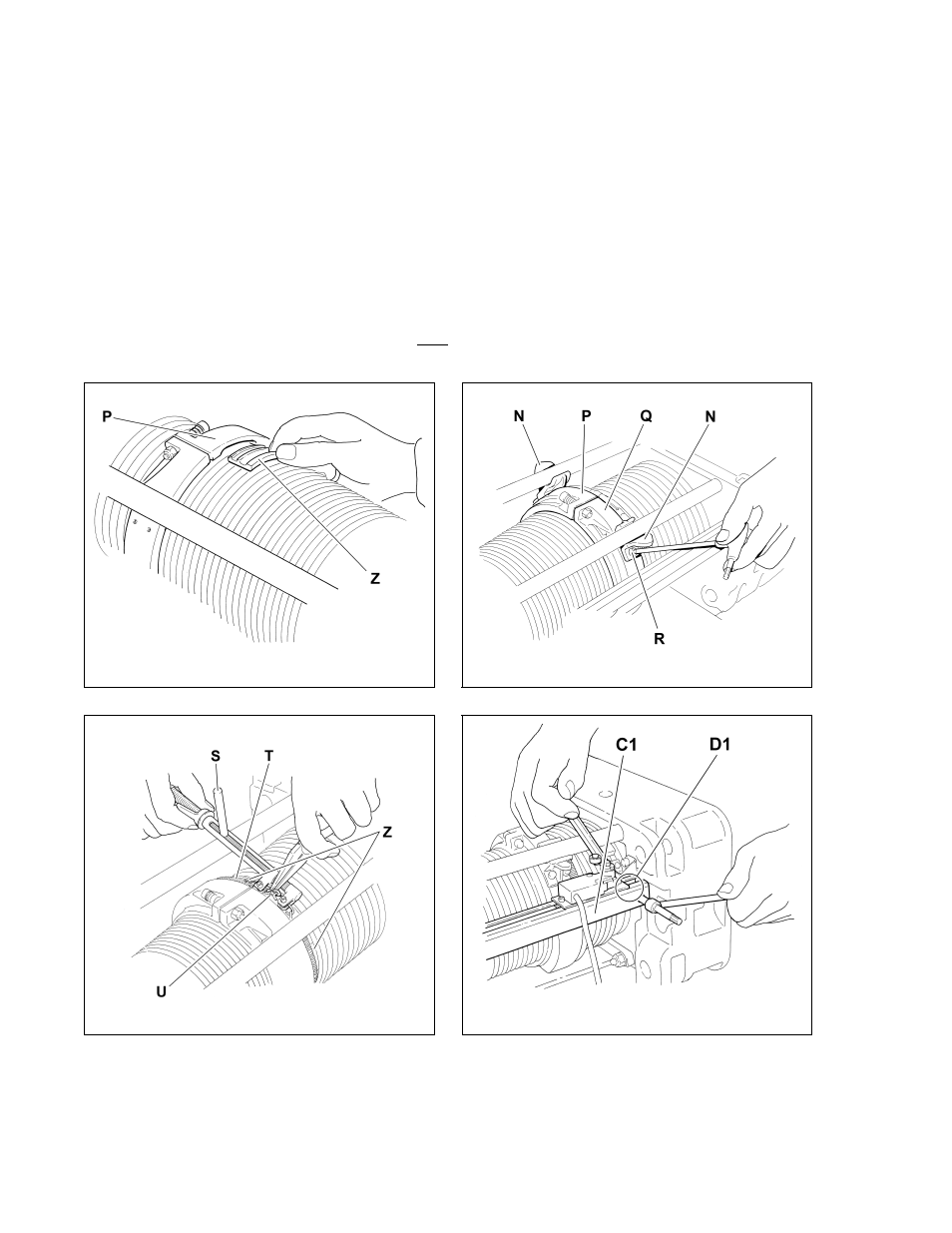

Figure 6-26 Figure 6-27
Figure 6-28 Figure 6-29
14) Carry out again all the sequences described in Section 3.6 “Reeving and Adjustments”. Lubricate the
Wire Rope, the Rope Guide and Drum (see Section 6.1 ).
