Harrington Hoists and Cranes TCR Hoist - (1/4-6 Ton) - Manual (Page 69)

TCR250C
TCR500C
TCR1000-2
TCR1000
TCR2000-2
Figure
Number
Part Number Part Name

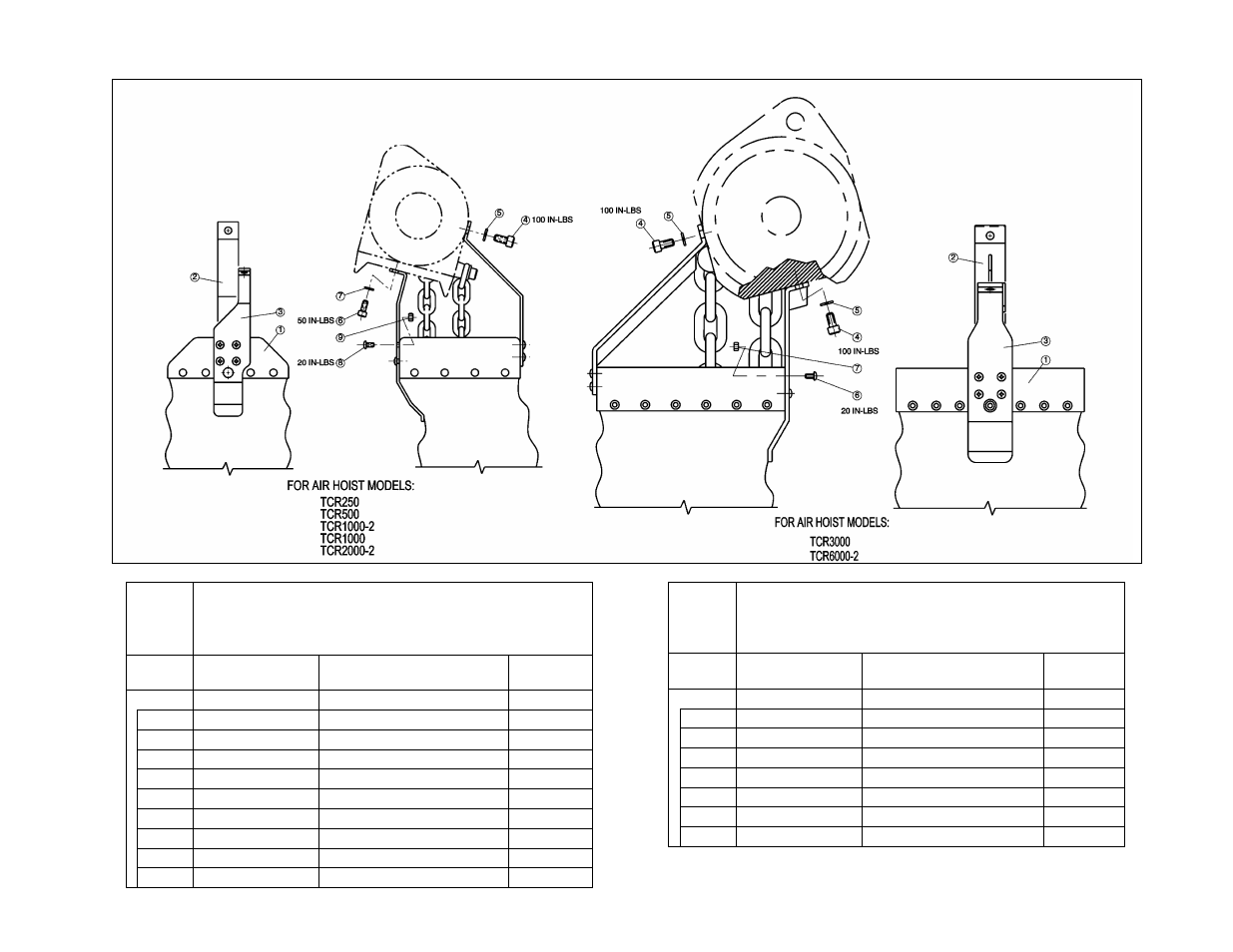

Parts
Per Hoist
— 60395 CHAIN CONTAINER ASSY. 1
1 E7SU010S683 CHAIN BAG 1
2 60392 BRACKET A 1
3 60393 BRACKET “B” 1
4 9091271 SOCKET BOLT M8X16 1
5 9012711 LOCK WASHER M8 1
6 9091248 SOCKET BOLT M6X14 1
7 9012709 LOCK WASHER M6 1
8 9798533 MACHINE SCREW M5X10 6
9 9098503 LOCK NUT M5 6
TCR3000
TCR6000-2
Figure
Number
Part Number Part Name
Parts
Per Hoist
— 60401 CHAIN CONTAINER ASSY. 1
1 E7SU020S683 CHAIN BAG 1
2 60398 BRACKET A 1
3 60399 BRACKET “B” 1
4 9091271 SOCKET BOLT M8X16 2
5 9012711 LOCK WASHER M8 2
6 9798535 MACHINE SCREW M5X16 8
7 9098503 LOCK NUT M5 8
